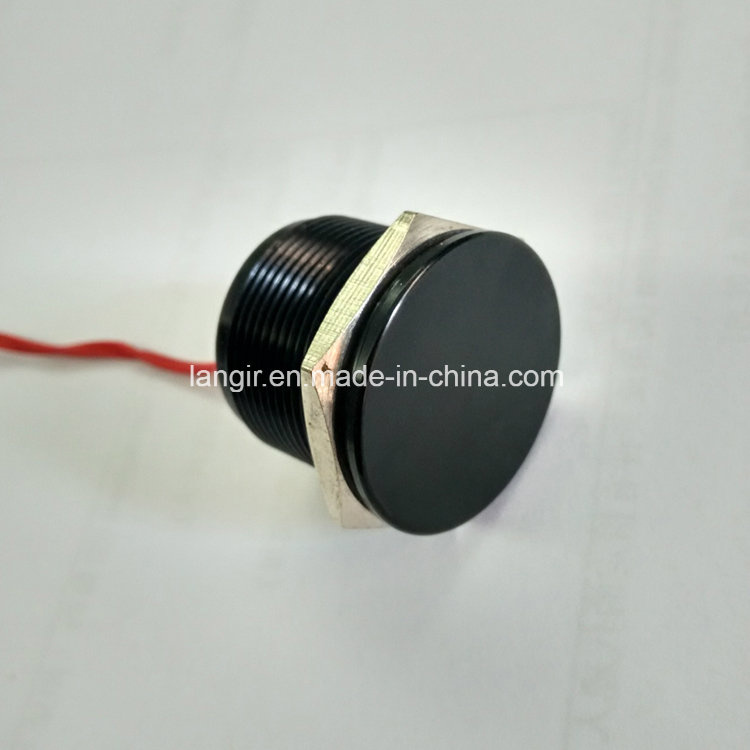

25mm IP68 Waterproof Momentary Black Piezo Switch

Name: 25mm IP68 Waterproof Momentary Black Piezo Switch
Brand: all-electronics-online.com
SKU: 799039295
Availability: InStock
Rating: 4.6 (49 reviews)

Price:	US $ 7.5-9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

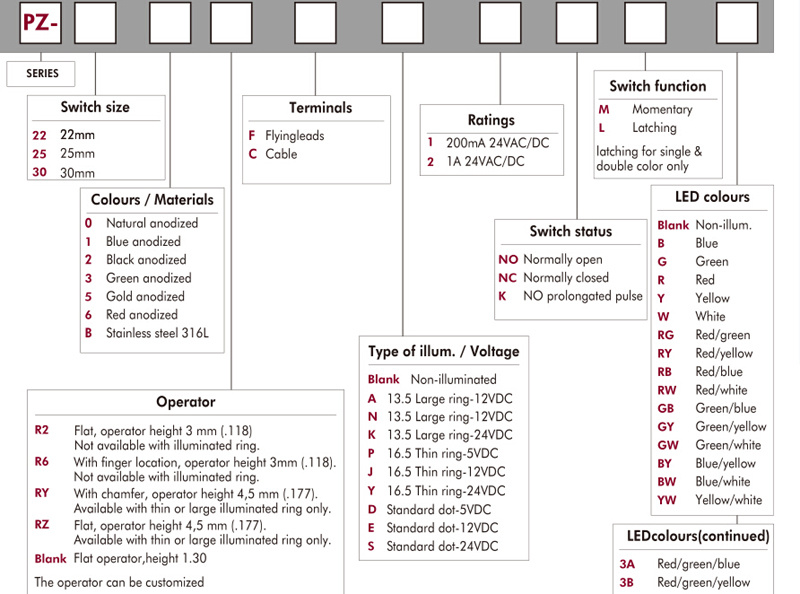

Prod Model:	PZ2521NOM
Is Customized:	Yes
Brand Name:	Langir
Max. Voltage:	24VAC/DC
Max. Current:	200mA
Protection Level:	IP68 Waterproof
Material:	Aluminum & Stainless Steel
Colors Of Material:	Natural, Blue, Black, Gold, Red
Operational Life:	+20mm Cycle, -60°c to 85°c
Usage:	Start Button
Certification:	RoHS

Product Description

-Sealed to IP 68 and IP69K (switches mounted on panel)
-Easy to clean metal surface
-Very long life expectancy

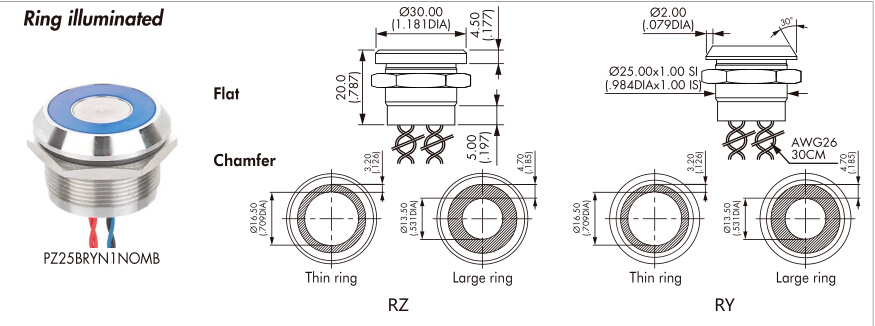

-Ring or dot illumination

ENVIRONMENTAL SPECIFICATIONS

-Sealing : IP68 per IEC 529, IP69K per DIN 40050-9
(switches mounted on panel or not)
-Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6
-Operating temperature : -40°C to +75°C
-EMC compatibility according to EN 61058-1 for the whole range
-EMC compatibility according to EN 61000-4 & EN61000-6-2 for model 1A (code 002)

MATERIALS

-Case : aluminium, anodized or stainless steel 316L or brass, chrome plated

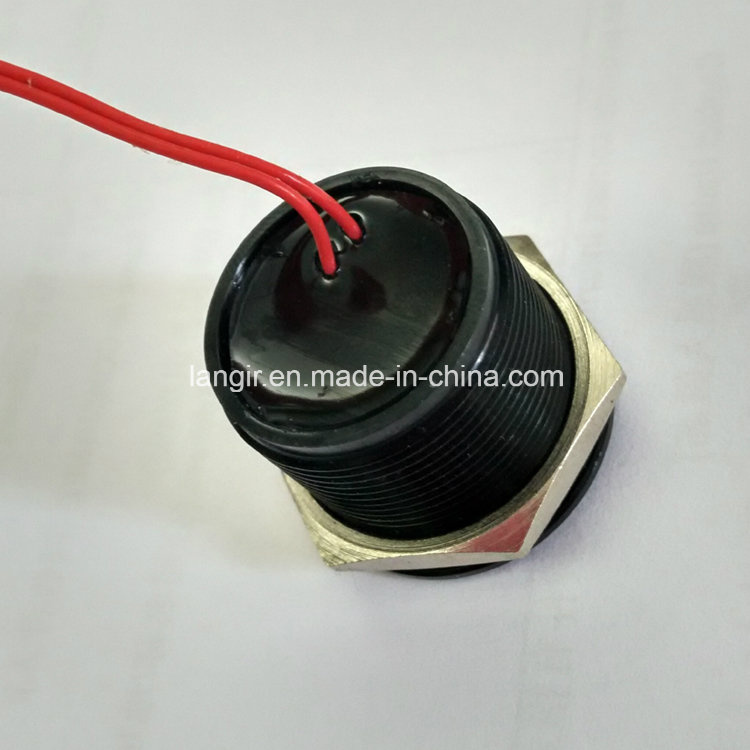

-Multi-wire leads section AWG24 length 300 mm, twisted by pair
-Cable, length 300 mm, section depending on switch model
-PC terminals : Gold or Tin plated

ELECTRICALANDGENERALSPECIFICATIONS

-Max. current/voltage rating : 200mA 5~24VAC/DC
-Switch resistance ON : 10Ωmax.
-Switch resistance OFF : 5MΩ min.
-Operating force : 6 to 15N
-Life expectancy : 50 million cycles
-LED consumption : Illuminated dot : 10mA - Illuminated ring : 20mA

Technical Data:

Electrical Data

Contact Arrangement	SPST N.O. / N.C.
Pulse Duration	125 - 300mS Momentary only
Prolonged	up to 6 sec
Voltage	1 - 24V AC/DC
Switching Current	0.2A /1A
Rated Breaking Capacity	1W
Operating Cycles	>50,000,000
Switch Resistance OFF	> 5 MΩ
Switch Resistance ON	< 20 Ω
Capacity	30pF
Contact Configuration	Free polarity

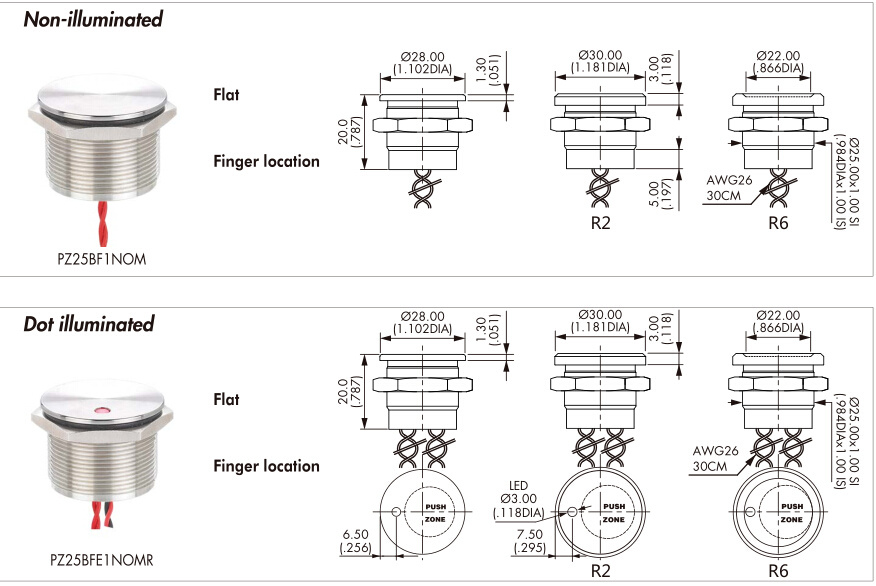

Mechanical Data
Material	Aluminium 6061 T651/ Stainless Steel 316L
Actuating Force	3 - 5N
Connection	Wires, Pins, Cables
Actuating Travel	0.002mm
Shock Protection	IK 06
Fastening Torque	2.5Nm
Anodize Colors	Gold / Red / Blue / Black / Green / Natural
Environmental Data
Operating Temperature	-40°C to 75°C std.
IP Protection	IP69K (front and back)
