| Prod Model: |
ABC cable, overhead insulated cable |
| Conductor Type: |
Stranded |
| Type: |
Insulated |
| Feature: |
25mm2 Power Cable |
| Application: |
Overhead |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Certification: |
CE |
| Insulation Material: |
PVC, XLPE, PE |
| Wire Core Material: |
Aluminum, Copper, Steel |
| Model: |
Jkv, Jkyj |
| Brand: |
Jinshui, Jinshui Cable |
Product Description

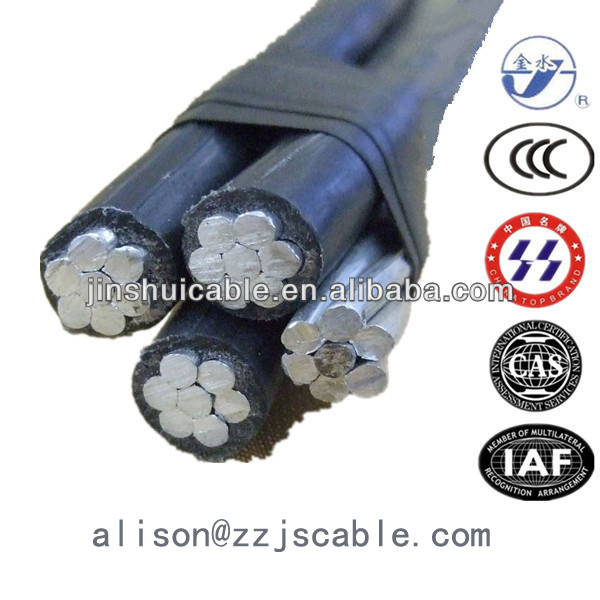

25mm2 power cable with good performance
Product description
APPLICATION
The product is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. It improves the safety and reliance of electrified wire netting.
CONSTRUCTION
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethlene or cross linked polyethylene(XLPE). Neutral messengers are concentrically stranded 6201, AAC or ACSR.
STANDARD
ASTM, ANSI/ICEA S-76-474, NFC 33-209, BS, IEC, GB AS/NZS etc or as your special requirement.
Types & Specification
Overhead stranded conductor ABC cable with AAC ACSR AAAC Neutral Messenger
Service Drop Cable(ABC CABLE) are mainly used for electric power transmission, rebuilding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
TYPES of SERVICE DROP CABLE
Service Drop Cable(ABC CABLE) covers mainly three types:
Duplex Service Drop Triplex Service Drop Quadruplex Service Drop
DUPLEX SERVICE DROP
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.
TRIPLEX SERVICE DROP
To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.
QUADRUPLEX SERVICE DROP
Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
Size & Technical data
ABC Aerial cable with ACSR messenger Core
| Nominal section area(sqmm) | Conductor structure | Insulation material | Insulation Thickness(mm) | Approx. Overall Diameter(mm) | Approx. weight
(kg/km) | Packing meters per drum |
Phase
(Compacted AL) | Neutral
(bare ACSR) |
| (No./mm) | Aluminum
(No./mm) | Steel
(No./mm) |
| 1x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
| 1x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | | 1.2 | 14.9 | 182.2 | 250-4000 |
| 1x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | | 1.4 | 17.5 | 254.7 | 250-3500m |
| 1x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | | 1.4 | 23.6 | 382.2 | 250-3000m |
| 1x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | | 1.6 | 27.6 | 528.2 | 250-3000m |
| 2x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | | 1.2 | 14.2 | 187.6 | 250-4000m |
| 2x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | | 1.2 | 16.7 | 273.8 | 250-3500m |
| 2x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | | 1.4 | 19.7 | 386.9 | 250-3500m |
| 2x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | | 1.4 | 26.1 | 617.2 | 250-3000m |
| 2x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | | 1.6 | 30.5 | 850.9 | 250-3500m |
| 3x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | | 1.4 | 29.7 | 1024.3 | 250-3000m |
| 3x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | | 1.6 | 34.6 | 1413.7 | 250-3000m |
Duplex Service Drop
| Code Word | Phase conductor | Bare Neutral Messenger | Nominal Lay Length | Weight Per 1000ft. (lbs.) | Allowable Ampacities+ |
Size
(AWG) | Stranding | Insul. Thick.
(Mils) | Size
(AWG) | Stranding | Rated Strength
(lbs.) | inches | XLP | POLY | XLP | POLY |
| AAC Neutral-messenger |
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 10.36 | 61 | 61 | 85 | 70 |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 10.36 | 64 | 64 | 85 | 70 |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 10.36 | 92 | 92 | 115 | 90 |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 10.36 | 96 | 96 | 115 | 90 |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 14.88 | 147 | 147 | 150 | 120 |
| Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 14.88 | 234 | 234 | 205 | 160 |
Packaging & Delivery
Packaging Details: International Wooden Drums or as customer requires
Delivery Time: 15-20 days generally
Contacts & Our Service
Contacts
Contact person: Alison Shi
Cell phone: 0086 15136147191
Website: www.zzjscable.com
Service
1. Geographical location and convenient transportation, saving transportation costs.
2. Full range of products, good quality and reputation.
3. With leading edge technology, dedicated engineers and technicians for oversea sales and service.
4. The sophisticated management system and management team. ISO9001,14001 and GB / T28001 passed.
5. Advanced service concept and positive attitude.
As a professional exporter in Chinese cable industry, with our good quality and excellent service, our partner relationship spreads all over Asia, Mid-East, South European, Central America, South American and South Africa area etc.
Sincerely, welcome friends all over the world and gain a mutual progress together in the prosperity future!
