| Prod Model: |
TMCT01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tolerance: |
+-10% +-20% |
| Shap: |
Radial Tantalum Capacitor |
| Type: |
Tantalum Electrolytic Capacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
1-50uf |
| Tuning: |
Tantalum |
| Filter: |
Tantalum |
Product Description
Capacitor

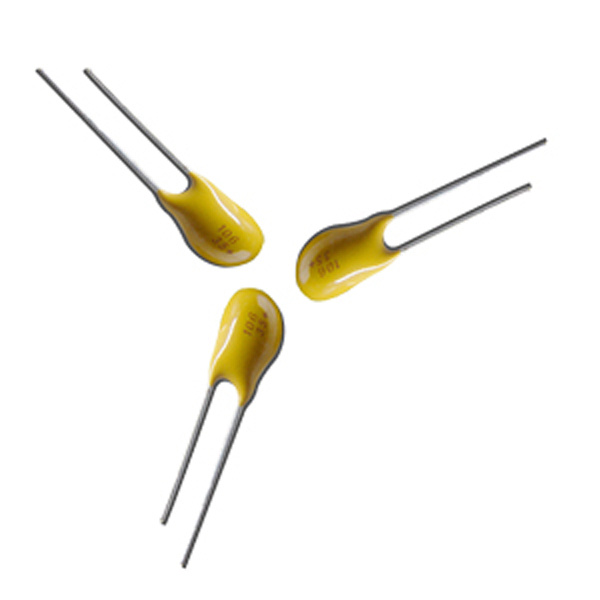

Radial Tantalum Capacitor
Key Specifications/Special Features:
Operating temperature: -55 to 125 degrees Celsius
Capacitance range: 0.1 to 330uF
DC leakage current (20 degrees Celsius): Io<=0.02CRUR or 1uA (whichever is greater)
Io <=0.01CRUR or 0.5&cupA (special order)
Dissipation factor (20 degrees Celsius): See below table
Temperature performance: See below table
Climatic category: 55, 125 and 10
Life test: 1, 000 hours
Cap, capacitance change (%), maximum DF (%) and maximum DCL (&cupA )
(&cupF) -55, +85, +125, -55, +20, +85, +125, +85 and 125 degrees Celsius
<=1.0, -10, +15, +25, 6, 4, 6, 6, 10 and 12.5Io
1.5 to 68, -10, +15, +25, 8, 6, 8, 8, 10 and 12.5Io
10 to 68, -10, +15, +25, 10, 8, 10, 10, 10 and 12.5Io
100 to 330, -10, +15, +25, 10, 8, 10, 10, 10 and 12.5Io
Lower current leakage and dissipation factor
Stable frequency and temperature and long life
Suitable for military and computer, telephone and long life electronic products
Product Certifications:
Certificate Standard: SGS
Certificate Number: GZSCR041248032/LP.
Issue Date: 24-Dec-2004
Certification Agent: SGS -CSTC LTD
Certificate Standard: RoHS
Certificate Number: CQC06130017473
Issue Date: 08-Sep-2006
Expiry Date: 07-Sep-2007
Certification Agent: China Quality Certification Centre
| TMCT01-Radial Tantalum Capacitor | U/P(USD) |
| 10,000 | 4.7UFX16V 10%. P=2.5 | 0.0392 |
| 10,000 | 1UF 25V 10%. P=2.5 | 0.0392 |
| 5,000 | 1.5UFX25V 10%. P=2.5 | 0.0392 |
| 10,000 | 2.2UFX35V 10%. P=2.5 | 0.0627 |
| 4,000 | 10UFX35V 10%. P=2.5 | 0.1373 |
| 4,000 | TS19 22UFX35V 10% P=5MM | 0.2549 |
