25W 12V IP20 Constant Voltage LED Driver Ce Certificated

Name: 25W 12V IP20 Constant Voltage LED Driver Ce Certificated
Brand: all-electronics-online.com
SKU: 747958565
Availability: InStock
Rating: 4.6 (83 reviews)

Price:	US $ 3.7/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E25B
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	12V
Output Current:	2.1A
Max. Power:	25 W Max
Dimming:	No
Built-in Active Pfc:	No
Power Factor:	Low
Efficiency:	75%
Installation:	Indoor
IP Rating:	IP 20
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

25W 12V IP20 Constant Voltage LED Driver CE certificated

Product Feature for LED driver:
*170-250 VAC, 12VDC
*Constant Voltage type; No electric fan
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*CE approval.

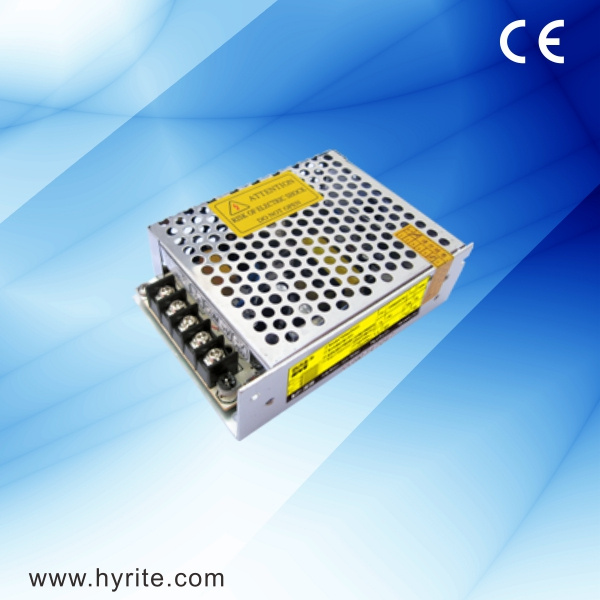

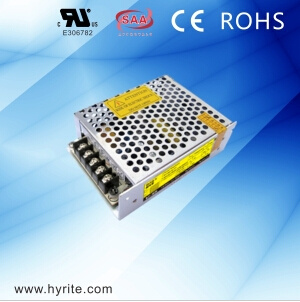

Product picture for LED driver:

Remark for LED driver:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 ctn

Shipping for LED driver:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Sepcification for LED driver:

Model no.	ELDV-12E25B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	25 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	2.1A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute

Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	855834 mm
Weight(kg)	0.2200
Packing information	110 Pcs/ Carton, G.W 25 KG

Project pictures for LED driver:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
