Product Description

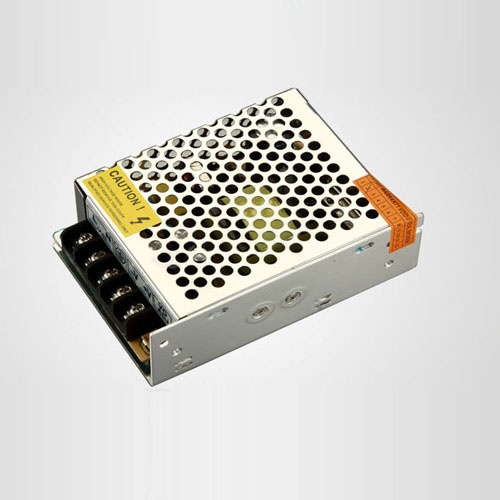

25W-150W Single output switching LED driver (NED/T Series)
Features:
*Universal AC input / full range (NES/D-100,NES-150 AC input selectable by switch)
*Protections:Short circuit / Overload / Over voltage
*Built-in over temperature protection for NES-15
*Cooling by free air convection
*Small size, high power density
*Low size, high reliability
*100% full load burn-in test
*Most economical low wattage solution with safety certificates
*2 years warranty
| Series No. | Model No. | Specification |
| AC input range | AC inrush Current(Max.) | DC adjustable range | Overload protection | Over voltage protection | Withstand Voltage | Safety standards | EMC standards | Connector
input/output | Output | Voltage tolerance | Ripple&noise | Efficiency | MAX | Size(mm) |
| NED-35 | NED-35A | 85~264VAC;120~370VDC | Cold start,
45A/230VAC | by potentiometer for single output 10% | 110%~150% hiccup mode, auto-recovery | 115%~135% rated output voltage,shut off | I/P-O/P:3KVAC,I/P-FG:2KVAC, O/P-FG:0.5KVAC.1minute | UL60950-1,EN60950-1(NES-150 only),GB4943(NES only),EN60950-1 | EN55022 class B,EN61000-3-2,3,EN61000-4-2,3,4,5,6,8,11,GB9254(NES only) | Terminal block for input and output | 5V,0.5~5A | ±2% | 80mV | 78.0% | 32W | 99x97x36 |
| 12V,0.1~1.5A | ±6% | 120mV |
| NED-35B | 5V, 0.5~4A | ±2% | 80mV | 78.0% | 35W | 99x97x36 |
| 24V,0.2~1.3A | ±6% | 200mV |
| NED-50 | NED-50A | 85~264VAC;120~370VDC | Cold start,
45A/230VAC | 5V,1~6A | ±2% | 80mV | 79.0% | 54W | 99x97x36 |
| 12V,0.3~3A | ±6% | 120mV |
| NED-50B | 5V,1~6A | ±2% | 80mV | 82.0% | 54W | 99x97x36 |
| 24V,0.2~2A | ±6% | 200mV |
| NED-75 | NED-75A | 85~264VAC;120~370VDC | Cold start,
45A/230VAC | 5V,1~8A | ±2% | 80mV | 78.0% | 71W | 159x97x38 |
| 12V,0.3~4A | ±6% | 120mV |
| NED-75B | 5V,1~6A | ±2% | 80mV | 81.0% | 73W | 159x97x38 |
| 24V,0.2~3A | ±6% | 200mV |
| NED-100 | NED-100A | 115/230VAC | Cold start,
45A/230VAC | -5%~+10%(NES-100/150);
CH1~5%~+10%(NES-100) | 115%~135% hiccup mode, auto-recovery | I/P-O/P:3KVAC,I/P-FG:2KVAC, O/P-FG:0.5KVAC.1minute | UL60950-1,EN60950-1(NES-150 only),GB4943(NES only),EN60950-1 | EN55022 class B,EN61000-3-2,3,EN61000-4-2,3,4,5,6,8,11,GB9254(NES only) | Terminal block for input and output | 5V,2~10A | ±2% | 80mV | 80.0% | 100W | 199x98x38 |
| 12V,0.7~7A | ±10% | 120mV |
| NED-100B | 5V,1~10A | ±2% | 80mV | 82.0% | 100W | 199x98x38 |
| 24V,0.3~3.5A | ±8% | 200mV |
| NED-100C | 12V,0~8A | ±2% | 120mV | 80.0% | 99W | 199x98x38 |
| 5V,0~3A | ±3% | 80mV |
| NED-100D | 24V,0~4A | ±2% | 120mV | 82.0% | 99W | 199x98x38 |
| 5V,0~3A | ±3% | 80mV |
| NET-35 | NET-35A | 85~264VAC;120~370VDC | Cold start,
45A/230VAC | by potentiometer for single output 10% | 115%~135% rated output voltage,shut off | 5V,0.5~4A | ±2% | 80mV | 78.0% | 30W | 99x97x36 |
| 12V,0.1~1.5A | ±6% | 120mV |
| -5V,0.1~0.5A | ±6% | 120mV |
| NET-35B | 5V,0.5~4A | ±2% | 80mV | 82.0% | 100W | 99x97x36 |
| 12V,0.1~0.5A | ±6% | 120mV |
| -12V,0.1~0.5A | ±6% | 120mV |
| NET-35C | 5V,0.5~3.5A | ±2% | 80mV | 79.0% | 35W | 99x97x36 |
| 15V,0.1~1.5A | ±8% | 150mV |
| -15V,0.1~0.5A | ±8% | 150mV |
| NET-35D | 5V,0.5~3.5A | ±2% | 120mV | 79.0% | 37W | 99x97x36 |
| 24V,0.1~1A | ±8% | 200mV |
| 12V,0.1~1A | ±8% | 120mV |
| NET-50 | NET-50A | 85~264VAC;120~370VDC | Cold start,
45A/230VAC | I/P-O/P:3KVAC,I/P-FG:2KVAC, O/P-FG:0.5KVAC.1minute | UL60950-1,EN60950-1(NES-150 only),GB4943(NES only),EN60950-1 | EN55022 class B,EN61000-3-2,3,EN61000-4-2,3,4,5,6,8,11,GB9254(NES only) | Terminal block for input and output | 5V,0.5~5A | ±2% | 80mV | 76.0% | 47W | 129x98x38 |
| 12V,0.2~2.5A | ±6% | 120mV |
| -5V,0.1~0.7A | ±5% | 120mV |
| NET-50B | 5V,0.6~5A | ±2% | 80mV | 78.0% | 50W | 129x98x38 |
| 12V,0.2~2.5A | ±6% | 120mV |
| -12V,0.1~0.7A | ±5% | 120mV |
| NET-50C | 5V,0.6~5A | ±2% | 80mV | 78.0% | 50W | 129x98x38 |
| 15V,0.1~2A | ±8% | 150mV |
| -15V,0.1~0.7A | ±5% | 150mV |
| NET-50D | 5V,0.6~5A | ±2% | 120mV | 80.0% | 51W | 129x98x38 |
| 24V,0.1~1.5A | ±8% | 200mV |
| 12V,0.1~1.5A | ±6% | 120mV |
| NET-75 | NET-75A | 85~264VAC;120~370VDC | Cold start,
45A/230VAC | 5V,0.6~7A | ±2% | 80mV | 76.0% | 47W | 129x98x38 |
| 12V,0.2~3.5A | ±6% | 120mV |
| -5V,0.1~0.7A | ±5% | 120mV |
| NET-75B | 5V,0.6~7A | ±2% | 80mV | 78.0% | 50W | 129x98x38 |
| 12V,0.2~3.5A | ±6% | 120mV |
| -12V,0.1~0.7A | ±5% | 120mV |
| NET-75C | 5V,0.6~5A | ±2% | 80mV | 78.0% | 50W | 129x98x38 |
| 15V,0.1~2A | ±8% | 150mV |
| -15V,0.1~0.7A | ±5% | 150mV |
| NET-75D | 5V,0.6~5A | ±2% | 120mV | 80.0% | 51W | 129x98x38 |
| 24V,0.1~1.5A | ±8% | 200mV |
| 12V,0.1~1.5A | ±6% | 120mV |
