25W LED Power Adapter with Fixed AC Cord

Name: 25W LED Power Adapter with Fixed AC Cord
Brand: all-electronics-online.com
SKU: 780870985
Availability: InStock
Rating: 4.7 (117 reviews)

Price:	US $ 3-15/Piece
Trade Terms:	FOB,others
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Packaging:	PE Bag,White Box,Carton
Protection:	Hipot,Short Circuit,Overvoltage,Ove
Experience:	20 Years'experience
Quick Delievery:	15-25 Days
Output Type:	Single
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Warranty:	3 Year
Output Power:	25W
Brand:	Yingjiao/OEM/ODM

Product Description

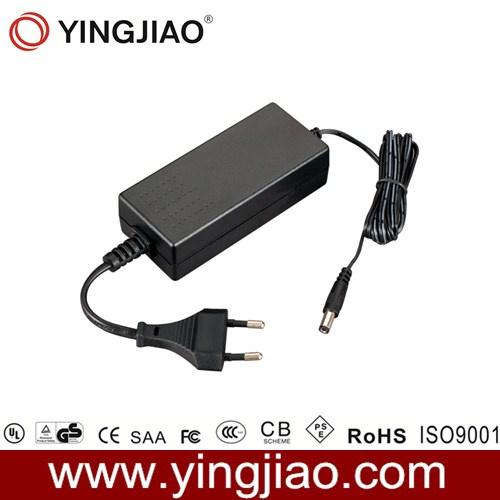

25W LED Adapter with Fixed AC Cord
Model: YS25 series
Rated Power: 20-40W
Universal Input: 100-240V AC 50/60Hz

Features:
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 105mm (L)*45mm (W)*28.5mm (H)
N. W.: 120g
AC Input Plug:
EU, US, UK, AUS, etc. Type optional
Output plug: Optional

Packing details:
1 piece per plastic bag + inner box
50PCS/CTN
CTN Dimension: 34*31*37CM

Model	Output Load Voltage (V)	Max. Load Current (A)
YS25-XX360	36	1.00
YS25-XX240	24	1.50
YS25-XX190	19	2.00
YS25-XX150	15	2.00
YS25-XX120	12	3.00
YS25-XX090	9	3.50
YS25-XX075	7.5	4.00
YS25-XX050	5	5.00

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

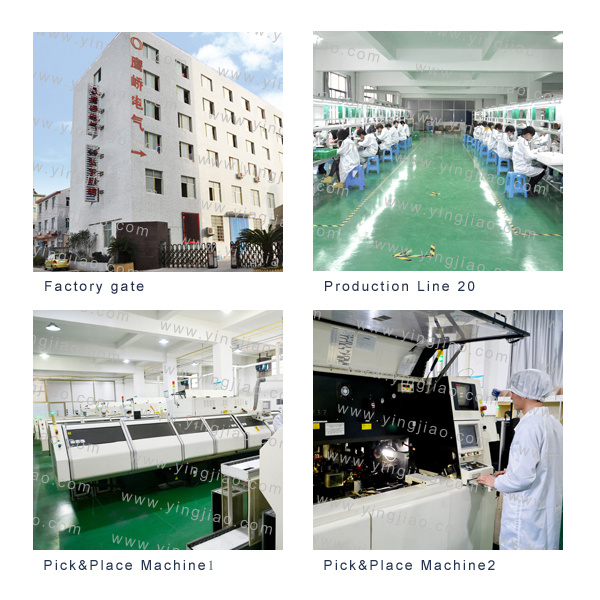

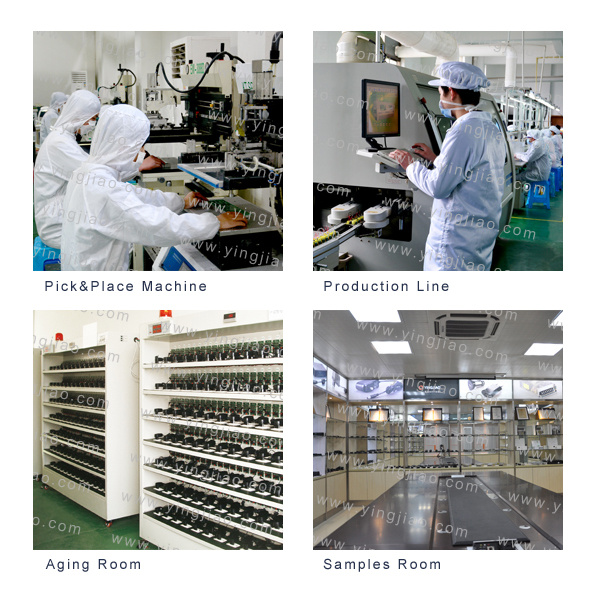

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

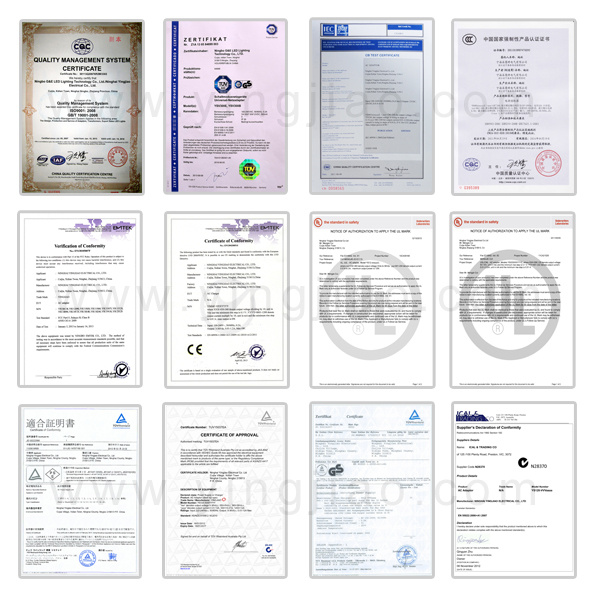

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
