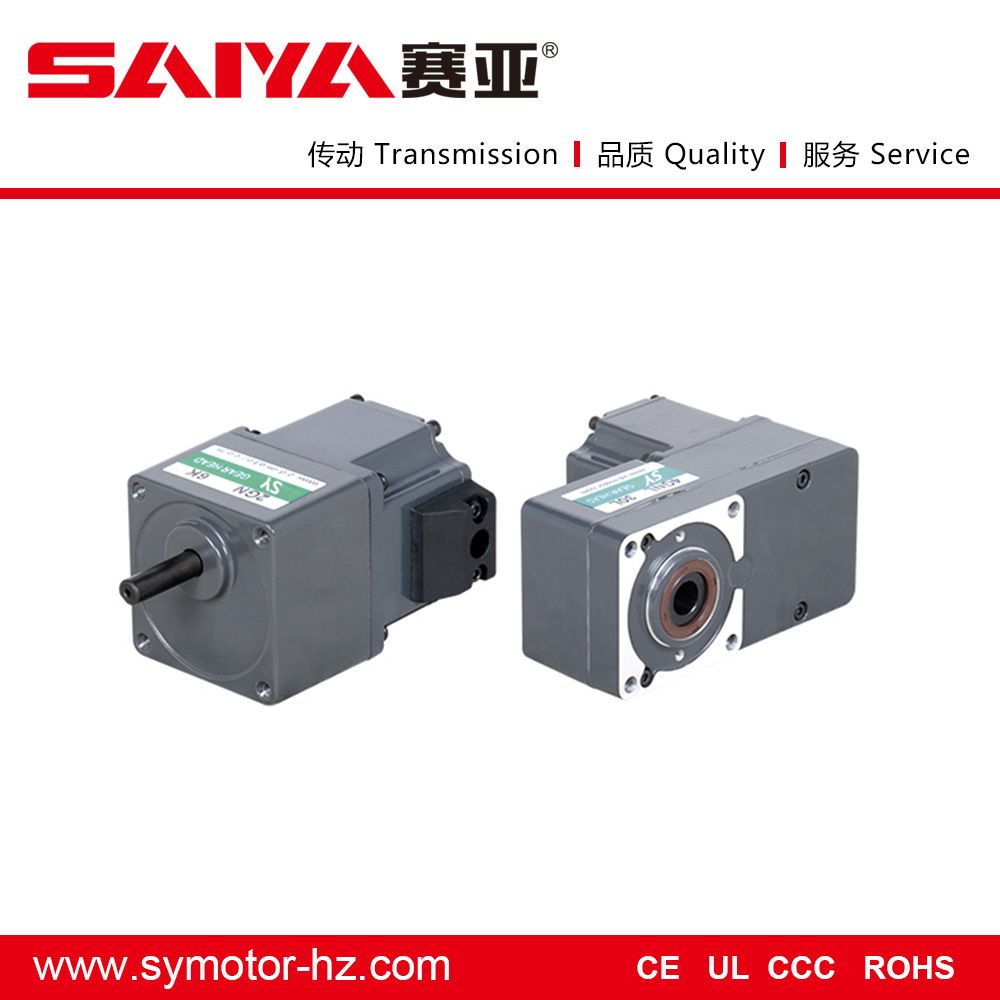

25W Low Voltage BLDC Motor with Square Gearbox

25W Low Voltage BLDC Motor with Square Gearbox
Price: US $ 57.5/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T
Prod Model: Z2BLD25-24GN/2GN200K
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 25W
Voltage: 24V
No-Load Speed: 3300rpm
Rated Speed: 3000rpm
Rated Current: 1.3 a
Motor Weight: 0.65kg
Application: Power Tools
Operating Speed: Constant Speed
Excitation Mode: Excited
Structure And Working Principle: Brushless
Number Of Poles: 3
Type: Bld
Certification: Ce UL RoHS
Brand: Saiya Motor

Product Description

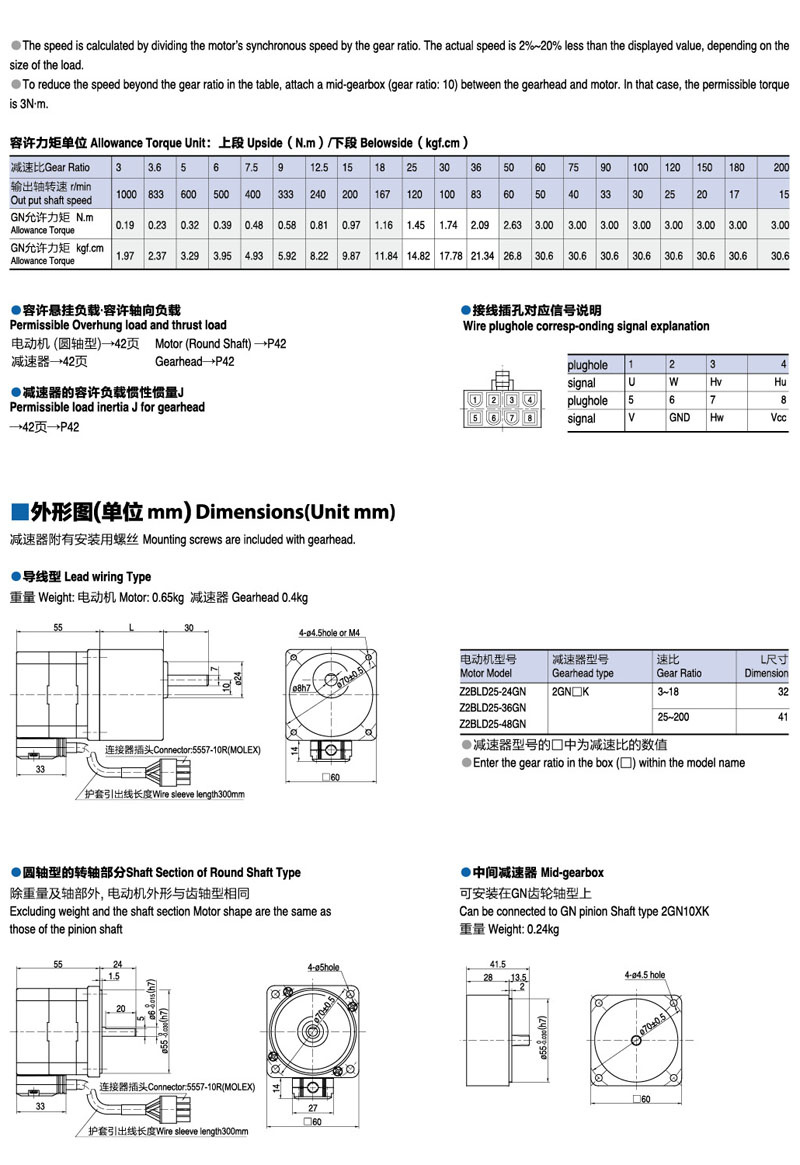

Mounting Flange mm: 60mm, 70mm, 80mm, 90mm, 104mm

Motor type: BLD: Brushless motor with square gearbox
BLDP: Brushless motor with planetary gearbox

Output power: Low voltage: 25W, 60W, 200W, 300W, 400W
High voltage: 10W, 15W, 25W, 40W, 60W, 90W

Voltage: 24V, 36V, 48V, 72V, 220-230V, 100-120V

Shape of motor shaft: GN: General helival gear
A1: Milling keyway
GU: Reinforced helival gear
A: Flat type




The brief introduction of our company:

Our company supplys different kinds of products. High quality and reasonable price.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

To perfect our service, we provide the products with good quality at the reasonable price.

The Products Of Our Company:

Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:

1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;

2) Small AC Gear Motor;

3) Planetary Gear Motor.

The Usages Of Our Products:

They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.

You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.

We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.

Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
