2715 Insulation PVC Fiberglass Sleeving

Name: 2715 Insulation PVC Fiberglass Sleeving
Brand: all-electronics-online.com
SKU: 669943752
Availability: InStock
Rating: 4.5 (124 reviews)

Price:	US $ 0.08/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	2715
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Size:	0.5-40mm
Storage Life:	1 Year
Delivery Time:	20days
Application:	Switch Baseplate
Type:	Insulation Sleeve
Chemistry:	Inorganic Insulation
Material:	Glass
Thermal Rating:	A 105
Maximum Voltage:	<10KV
Color:	White with Green,Red,Blue Line
Brand:	Chr

Product Description

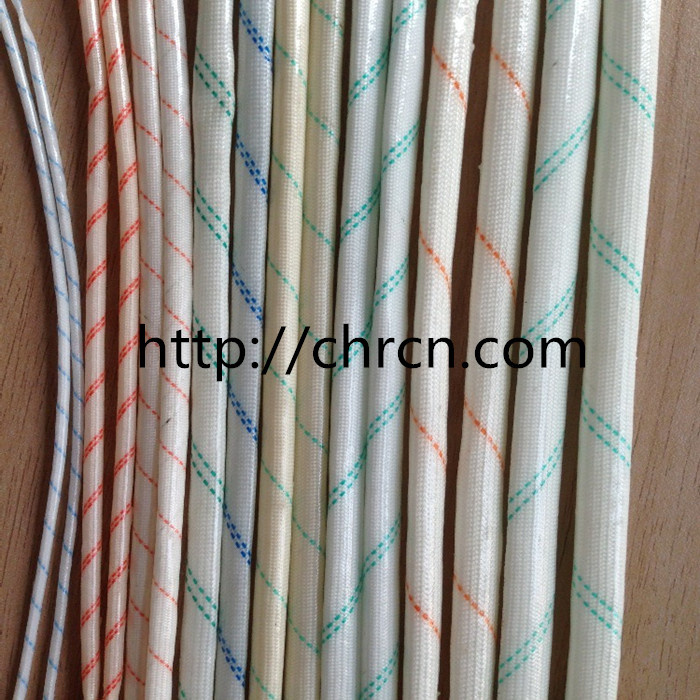

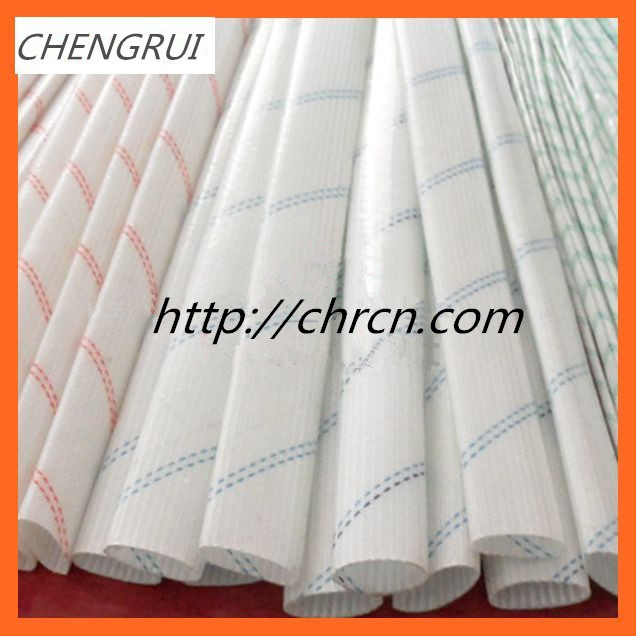

2715 Fiberglass insulation sleeving coated with polyvinyl Chloride resin
1 .Description: Electrical PVC fiberglass Insulation Sleeving is made from non-alkali fiberglass sleeving coated with polyvinyl chloride resin under the high temperature.
It is widely used as insulating and protection material for motor and electric appliance.
2.Specifications:
1).resistance temperature is 105°C
2).breakdown voltage:1.5kv 2.5kv 4.0 KV.
3).Diameter: 0.5-40 mm
4).Packing: 1meter or 50-100m/roll with carton or bag, can be according to customer's request
5).Color: red line, blue line and all kinds of color

Item	Unit	Normal value
inner dia.& wall thickness(mm)	mm	inner dia(mm)			wall thickness(mm)
		standard		tolerance	min	max
		0.5;0.8		±0.10	0.20	0.50
		1.0;1.5;2.0;2.5;3.0		±0.15	0.20	0.75
		3.5;4.0;5.0;6.0;7.0;8.0		±0.25	0.30	0.75
		9;10;12;14;16;18;20		±0.50	0.40	0.90
Bending after heating	/	No cracking or detachment of coating shall be visible after bending around mandrels after 96h at 150ºC
Bending at low temperature		No cracking or detachment of coating shall be visible after bending around mandrels while at -25ºC
Breakdown voltage	kv		Average		Lowest
		Room temp.	4.0		2.5
		Elevated temp.	1.2		0.8
		Damp heat	1.2		0.8
insulation resistance	MΩ	≥1.0X103
The quality warranty period	6 month
Temperature index	105ºC

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
