28 Key Infrared RGB Controller

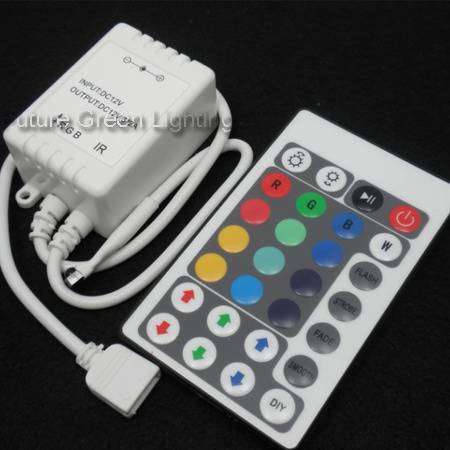

Name: 28 Key Infrared RGB Controller
Brand: all-electronics-online.com
SKU: 669010345
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	US $ 1.65-1.7/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FG-IR28
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PCB Type:	Single Face PCB
Tube Type:	Small MOS Tube
Output Current:	<2A( Each Channel)
Output Power:	<5V:<30W, 12V:<72W, 24V:<144W
Application:	LED Products
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

28-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. Besides, you also could adjust random color by yourself freely.

Technical Parameters
Working temperature: -20-60 º C
Supply voltage: DC5V, 12V, 18V, 24V (for orders specify voltage)
Output: 3 channels
Connecting mode: Common anode
External dimension: L63xW35xH22 mm
Packing size: L105xW65xH40 mm
Net weight: 50 g
Gross weight: 70 g
Static power consumption: <1 W
Output current: <2 A (each channel)
Output power: 5 V: <30W, 12V: <72W, 24V: <144W
