285083pl 3.7V 1500mAh for MP3 MP4

Name: 285083pl 3.7V 1500mAh for MP3 MP4
Brand: all-electronics-online.com
SKU: 803724695
Availability: InStock
Rating: 4.3 (112 reviews)

Price:	US $ 1.5-2.5/Piece
Min Order:	3000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	285083 3.7V 1500mAh
Type:	Lithium-Polymer Battery Pack
Connection Mode:	Single
Standard Voltage:	3.7V
Usage:	Universal Navigation MP3 MP4 Rechargeable

Product Description

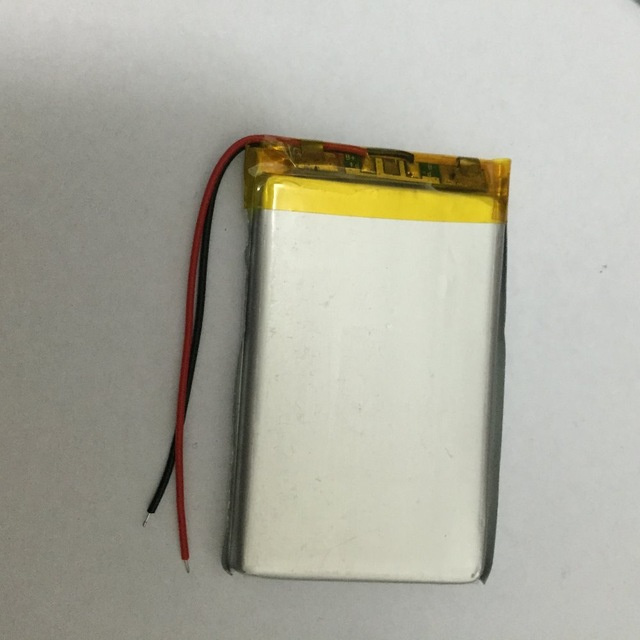

285083 ultrathin polymer lithium battery 3.7V 1500mAh Universal Navigation MP3 MP4 rechargeable battery

Shelf !

Please note that before the shoot :

A battery is 3.7V ,and 3.7V with protection board .

2Battery defaultCited two lines,line length 7CM. ( Red positive black negative )

3 This section applies to any battery 3.7V digital productsAs long as your digital products battery slot which can accommodate a battery can be used .

4 Be sure to confirm before making a good size can pretend to be into your product , thank you !

How to tell you how much battery volt battery ?Take a look at your charger

9V,Chargers are using a 7.4V battery / / / /5V 3.7V corresponds to the charger for the battery.

Store battery sizeMany , no way to eleven release,For other sizes , the number of other volt direct contact Customer Service

Battery size : 2.8 * 50 * thickness 83mm long

( That is, 0.28 * 5 * 8.3 cm )

Nominal voltage : 3.7 V

Nominal capacity:1500mAh, 1C discharge

Charging current: Standard charge : 0.5C, fast charge : 1.0C

Standard charging method : 0.5C CC ( constant current ) charge to 4.25V, then CV ( constant voltage 4.2V) charge till charge current 0.05C

Maximum charge current : 1C

Maximum discharge current : 1C

Discharge cut-off voltage : 2.75V

Discharge Temperature : -20 C ~ +60 C

Charging time :1-4hrs ( standard ); 2hrs ( fast )

Protection: with over charge , over discharge , over current , short circuit protection, over temperature protection

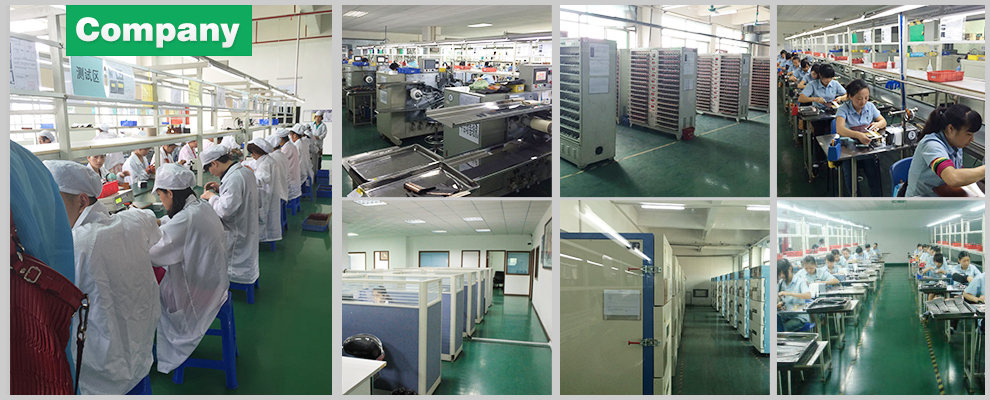

Shenzhen Wanhong Technology Co., Ltd is a lithium batteries high-tech enterprise, professional on R&D, producing. Our company obtained independent import & export rights and general taxpayer qualification. Front-end application is positioned as World Power development direction. Offering"Quality, Efficient, Safety, Eco-friendly" Li-ion battery products is our mission. Continued research and innovation, competitive cost and manufacturing advantages already help Wanhong been many well-known enterprises lithium battery supplier.

Shenzhen Wanhong own an excellent engineer team, engaged in lithium batteries for many years. Our team have a lots of experiences on hardware and software R & D, always pay attention to the latest development of lithium batteries and latest applications.

Wanhong operate strictly according to ISO9001-2008 Quality Management System. The workshop is equipped with advanced production equipment and world-class testing instruments. Also has professional manufacturing and quality controlling staff team. They make batteries strictly on each step, optimize and improve the manufacturing technologies to ensure providing the customers with world-class products.

Wanhong's focus and professional spirit is helping us to provide a world-class environmentally energy and create green, low-carbon and clean home through constant effort and technology innovation.
