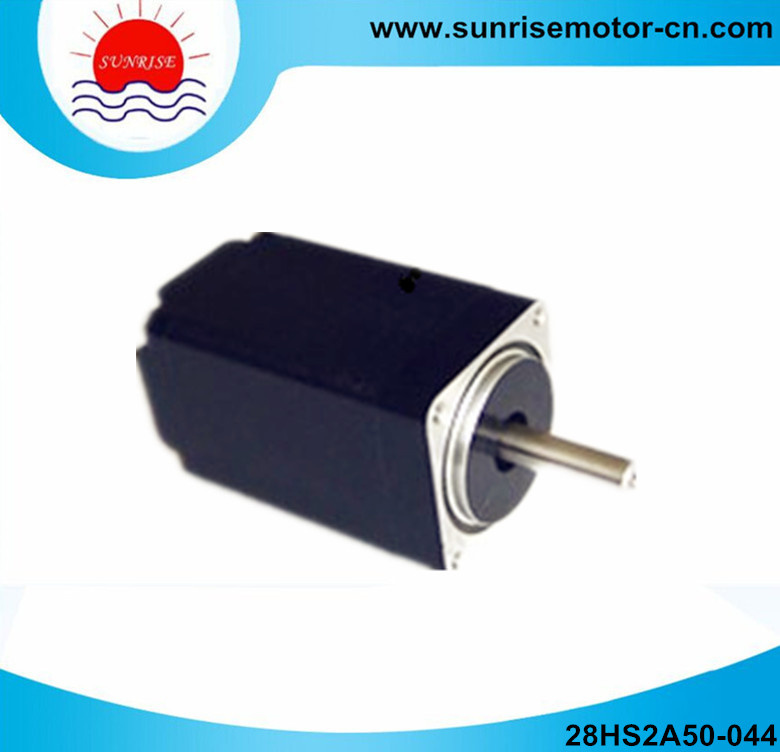

28HS2a50-044stepping Motor Stepper Motor 2-Phase Hybrid Stepper Motor

Name: 28HS2a50-044stepping Motor Stepper Motor 2-Phase Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 786611535
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 10.16-12.32/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	28HS2a50-044 stepping motor
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Hybrid
Certification:	SGS
Brand:	Sunrise Motor

Product Description

Changzhou Sunrise Electric Motor Co., Ltd. (Sunrise Motor), was founded in 2004 and is located in Changzhou, China, about 200 km (125 miles) west of Shanghai. With our dedicated staff, we do marketing, sales, product development, engineering, and manufacturing of electric motor and related products to domestic and oversea customers. We provide business and technical supports to our oversea customers through our local offices located in USA, Europe, and South America.

Our products can be categorized to:

-BLDC motors

-Hybrid stepping motors

-PMDC motors

-Motor drivers

-Customized motors based on customers' drawings, specifications and technical requirements

-Value added solutions

These motors can be used for industrial, commercial and residential applications, such as industrial automation and machinery, office equipment, appliances for household, etc.

Model:28HS2A50-044
Holding Torque:10N.cm
Current:0.35A
Resistance:24Ω
Motor Length:50MM
Weight:180g

Remark:
Motor are available with different winding and mechanical modification to meet specific applications.

Model	Holding Torque (N·cm±10%)	Current/Phase(A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N·cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
28HS2A28-064	4.5	0.6	4.2	2.2	0.3	6	28	105
28HS2A28-044	4.5	0.35	12	5.8	0.3	6	28	105
28HS2A33-064	6.0	0.6	5.5	3.2	0.4	8	33	110
28HS2A33-044	6.0	0.35	15	9.2	0.4	8	33	110
28HS2A41-064	6.0	0.6	7.0	6.0	0.5	11	41	140
28HS2A41-044	6.0	0.35	20	15	0.5	11	41	140
28HS2A50-064	10	0.6	9.0	7.2	0.8	13	50	180
28HS2A50-044	10	0.35	24	18.5	0.8	13	50	180

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
