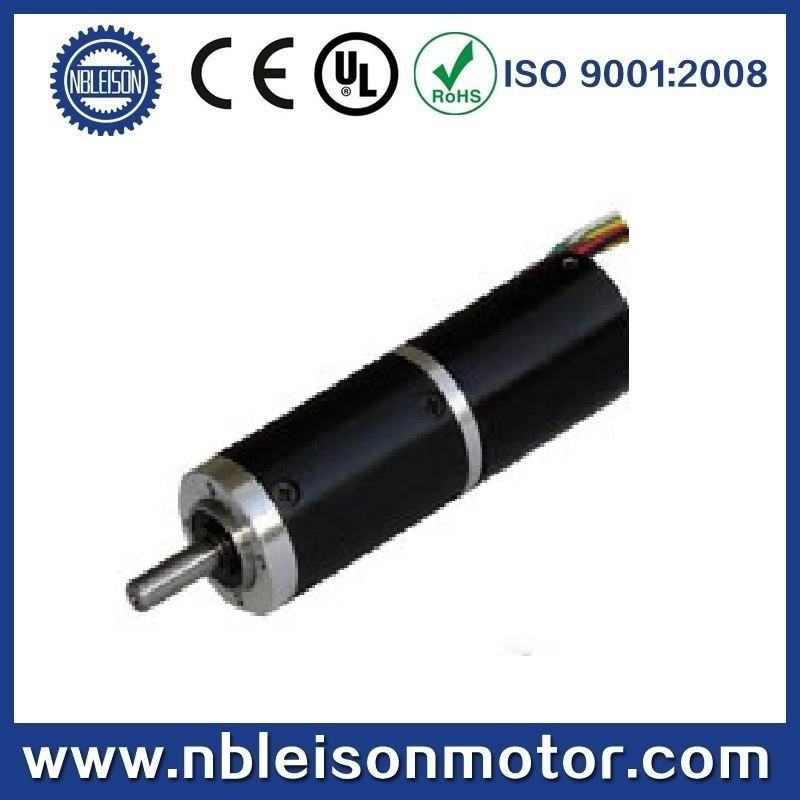

28mm 24V Brushless DC Motor with Planetary Gearbox

Name: 28mm 24V Brushless DC Motor with Planetary Gearbox
Brand: all-electronics-online.com
SKU: 721141885
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	US $ 22.8-45/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	28PA/29BLY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Structure And Working Principle:	Brushless
Operating Speed:	Constant Speed
Application:	Universal

Product Description

Brushless planetary gear motor

1. Diameter: 28mm
2.12v, 24v
3.0.2-2N. M toruqe
4. Wide ratio from 1: 3.7 to 1: 720
5 good price, specs can be customized

Rated Voltage	V	24
Reduction ratio	1:X	3.7	5.2	13	19	27	51	71	100	139	189	264	369	515	720
Rated speed	rpm	757	538	204	146	105	55	39	28	20	15	11	7.6	5.4	3.9
Rated Torque	N.m	0.03	0.04	0.09	0.12	0.17	0.28	0.39	0.55	0.77	0.9	1.26	1.76	2.45	3.0
Gear motor length	mm	107	107	119	119	119	131	131	131	131	143	143	143	143	143

28PAXXXG/29BLY55-2445 XXX=Reduction Ratio

Rated Voltage	V	24
Reduction ratio	1:X	3.7	5.2	13	19	27	51	71	100	139	189	264	369	515	720
Rated speed	rpm	811	577	219	156	112	59	42	30	22	16	11	8.1	5.8	4.2
Rated	N.m	0.65	0.77	2.1	2.4	2.9	6.6	7.7	9.1	11	20	24	28	30	30
Gear motor length	mm	107	107	119	119	119	131	131	131	131	143	143	143	143	143

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
