| Product Name: |
Pg28385129000-100ke3 |
| Motor Type: |
Carbon-Brush Commutator |
| Gear Type: |
Straight Gearwheel, Planet Construction |
| Housing Material: |
Steel |
| Geartrain Material: |
Steel and Powdered Metal, POM Optional |
| Bearing At Output Shaft: |
Sleeve Bearing |
| Lubricant: |
Grease for High-Low Temperature, -62---+204 Degree |
| Backlash At No-Load: |
<1°, Min0.3° |
| OEM & ODM Service: |
Available |
| Life Time: |
1000h+ |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Structure And Working Principle: |
Brush |
| Certification: |
ISO/Ts16949/Ce/Rhos |
| Brand: |
Twirl |
Product Description

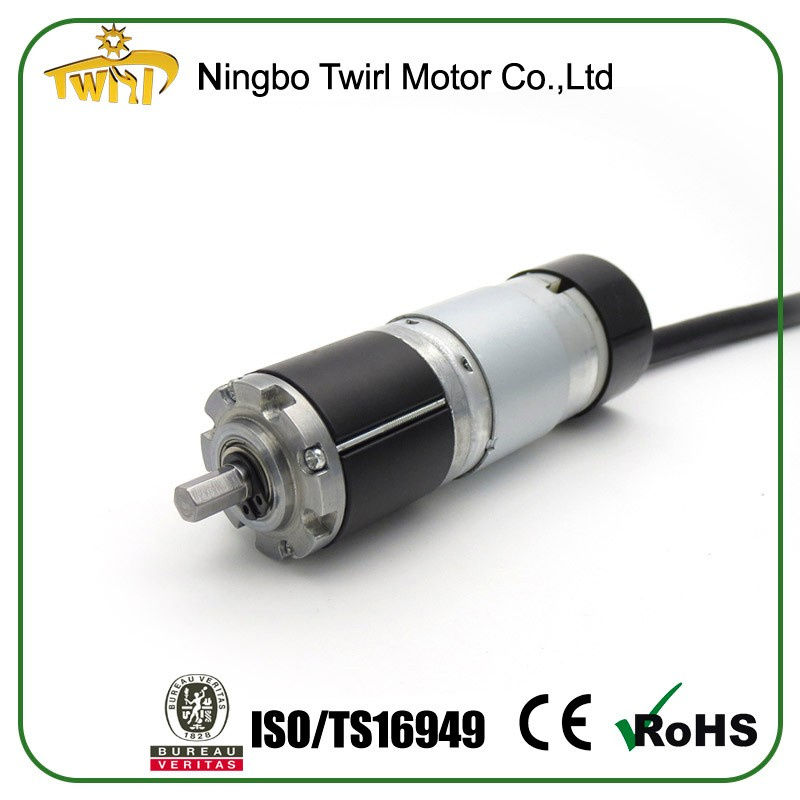

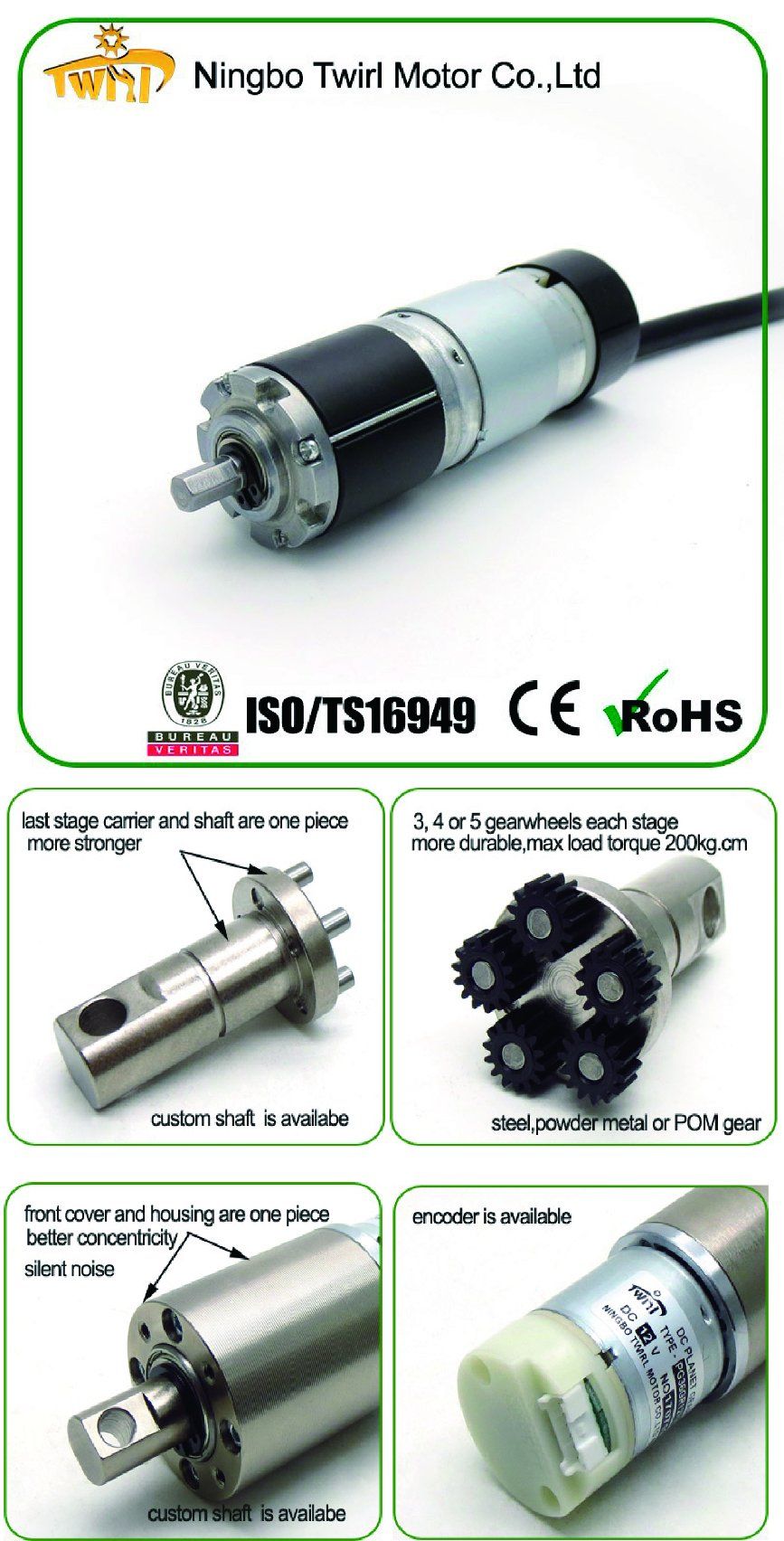

28mm car power tailgate micro dc gear motor with encoderProduct Show
ApplicationTitle Challenge: Low noise,Varies moving angle with high torque.
Solution: Optimize gearbox structure and conduct different opening angle simulation.
Achievements: Pushing force 750N and drawing force 500N with DC permanent magnet motor.

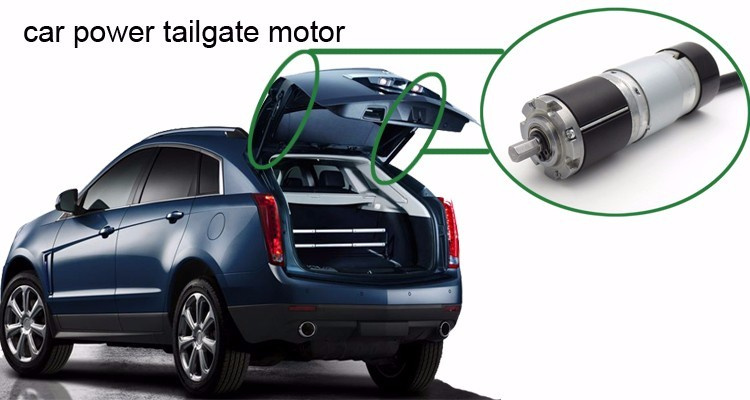

As a development partner and Tier 1 supplier of automotive power tailgate systems, Twirl works closely with car manufacturers,as well as with design and engineering specialists, to develop innovative planet gear motor and actuator system,and owned invention patent.The 2 channels hall sensor gear motor is applied in the actuator system.A slight motion of your foot below the rear bumper will rapidly trigger the tailgate.It can also open/close via remote control,or conveniently at the push of a button. The power lift gate also has customized opening angle. In the past this function is only fitted in the limousine, and now has been widely adoptedin the more and more modern cars.
Product Description

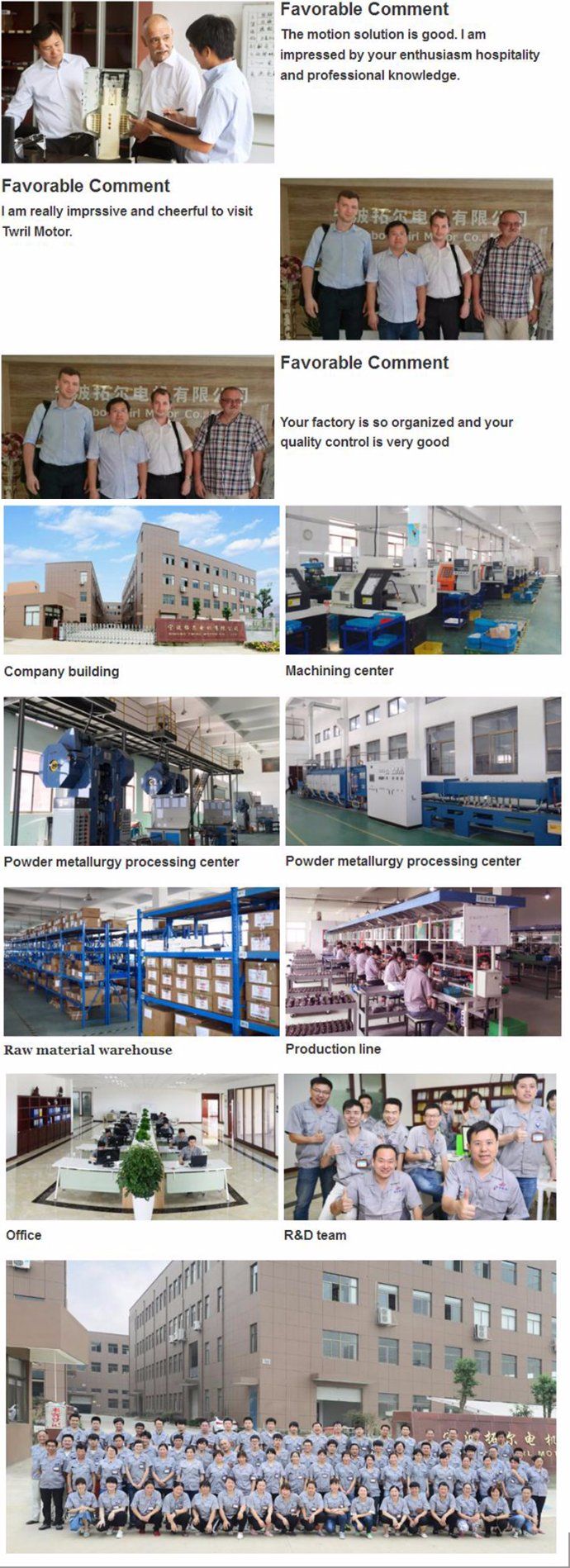

Our Company&Strength

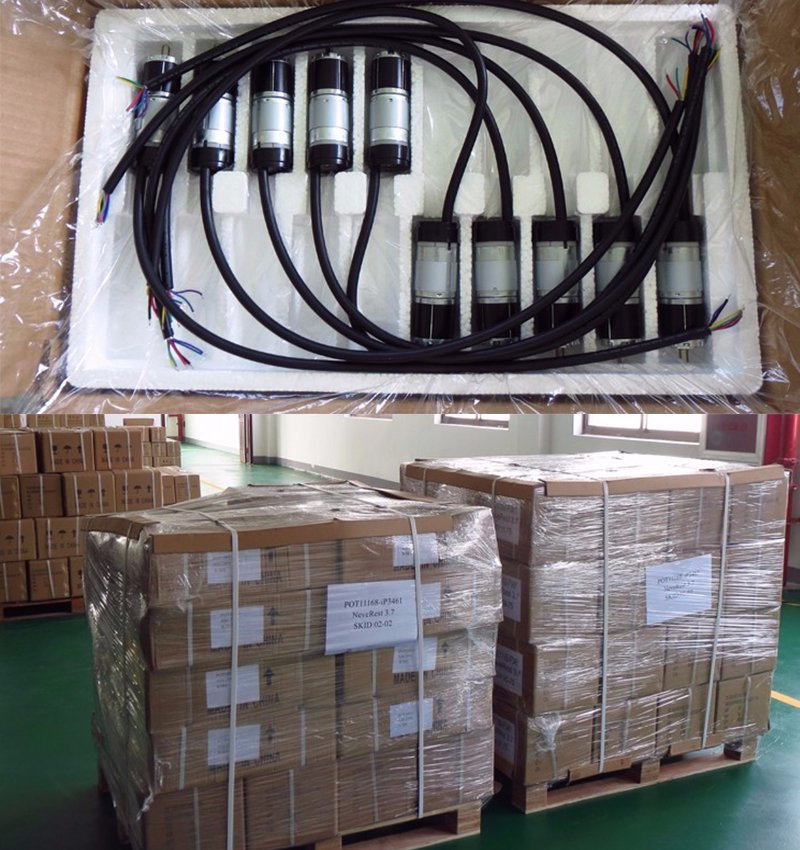

Packing & Delivery
Packing Details : ctn meas.:32*28*26cm 40pcs/ctn, N.W.:20kgs, G.W.:21kgs
Delivery Details : 1-2 weeks for samples, 3-4 weeks for mass production
FAQQ: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: Can you make a motor with custom specifications?
A: Yes, actually that is what we do most of the time.
Q: What is the MOQ (minimum order quantity)?
A: 1 pc for sample order, and 100pcs for bulk order.
Q:Where is your loading port ?
A:Ningbo Port, Shanghai Port, China.
Q:What is your production capacity?
A:About 10000 PCS per day.
Q: Can we type our brand on it?
A: Yes of course.
Contact us Candy Xu***************************************************
Ningbo Twirl Motor Co.,Ltd.Welcome to visit our website:www.twirlmotor.comAdd:NO.1269 Mingshu Road,Jiangshan Town,Yinzhou District,Ningbo,Zhejiang,China
:
Tel: 86-574-83011098 ext8014
Fax:86-574-83011156
Mob:0086 137 3882 3255
Main products: planetary gearbox,gear motor,dc motor,encoderISO/TS16949:2009 ,CE,ROHS
Ningbo Twirl Motor Co., Ltd. Is a modern enterprise integrated research & development, manufacture, sales and specializes in gear motors. At present, we mainly produce diameter 16mm~ 60mm Mini Planetary geared motors which are up to Chinese CCC standard, RoHS standard and CE standard with low noise, long life and full specifications.
Twirl Motor throughout takes " Make the best gear motor of China" As the goal and persists in the principle of " Innovation, Scientific management, Honesty business". Our company takes advantage of the wisdom from all the staff to promote growth. There are some engineers with rich experience in research and design, who are good at using professional software of Solidworks, Photoview and PRO/E to develop the new products. Meanwhile, Twirl Motor owns various sets of professional equipment for production, including High-quality knurling machines, CNC lathes, Press-casting machines, CNC machining centers, Engraving Machines and Electrical pulses.
Our main inspection equipment is Automatic dynamometers and OVH. We do strict inspection and strength test with each series of products so as to keep their best state in strength and noise.
Tenet: Innovation, Pragmaticism
Management Concepts: People foremost, Scientific management, Teamwork
Design Philosophy: Scientific. Succinct. Practical. Aesthetic
Service philosophy: Create value for customer
Quality Philosophy: Only make the competitive products
We are based on the goal of " Innovation and pragmatism" And insist on high-quality products, excellent service to met customers' needs. We sincerely welcome customers from at home and abroad to visit us and negotiate the business, and hope that we can woke together to create a great future.
