28mm NEMA 11 Ultra Thin Stepper Motor Used for Feeder Machine

Name: 28mm NEMA 11 Ultra Thin Stepper Motor Used for Feeder Machine
Brand: all-electronics-online.com
SKU: 829285245
Availability: InStock
Rating: 5 (104 reviews)

Price:	US $ 11.8-14/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	28SHD4701-2A
Holding Torque:	16mn.M
Rated Current:	0.5A
Rated Voltage:	1.8V
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Application:	SMT, Feeder Machine
Type:	Hybrid
Certification:	Ce, RoHS, TUV
Brand:	Casun

Product Description

Ultra-thin stepper motor which owns high torque and speeds up to 4500rpm, is specially designed for feeder of pick n place machine in the semiconductor industry.

SIZE 28 ULTRA-FLAT STEPPER MOTOR

Ultra flat 9.5mm thick, two phase, step angel 1.8°, nema11 high-torque stepper motor with two mounting holes on a 34mm size flange.
The stepper motor is designed for feeder of pick n place machine. Its feature is also fit for stirrer of scientific instrument.

SIZE 57 ULTRA-THIN STEPPER MOTOR

Ultra flat 9.8 mm thick, size nema23, bipolar two phase, step angle 1.8 degree , high torque fast speed hybrid stepper motor.

OEM & ODM are available, your motors also can be customized as your requirements.

Small size 28mm nema 11 ultra thin stepper motor used for feeder machine

	CASUN 28SHD4701-2A
	Rated Current	0.5 A
	Rated Voltage:	1.8 V
	Step angle:	1.8 degree
	Number of phase :	2 phase
	Shaft :	with Gear
	Wire :	4 wire
	Size :	28x10.9mm
	Certification:	CE , ROHS TUV

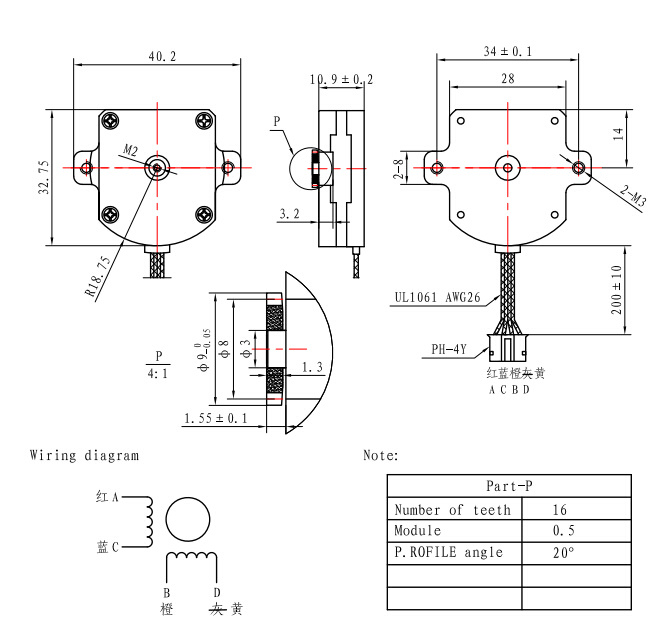

Figure Dimensions:

Our company :
Guangzhou Fude Electronic Technology Co., Ltd., established in 2011, engaged in stepper motor research , development, production and sales , are one of the hi-tech enterprises. After several years of technology researching and development, market development, we gradually become the one of best quality stepper motor manufacturers in China. In order to offer our best service and meet customer's requirements , we all try our best to customize the motor and provide solutions.

Our company has numerous world-class clients all over the mainland China, Taiwan, Europe and America, Japan, Korea and other countries or regions. Our products including hybrid stepper motor , lead screw stepper motor , planetary stepper motor with gearbox and closed loop stepper motor . They are widely used in robots, sculpture, laser machine , medical machine, stage lighting, 3d printer,, automation equipment, SMT and other equipments.

Certifications:
1.We have pass ROHS & CE certifications
2.We have our own paten stepper motors.

Packing & Payment &Delivery :

Payment Term	T/T, PayPal, Western Union, Cash, Escrow
Accepted Payment Currency	USD, CNY
Packaging Detail	cusomized packages, poly bag/customized blister/color box etc. as per your need
Delivery Detail	10 Day(s)
Delivety Port	huangpu,luogang,shenzhen
Accepted Delivery Terms	FOB, EXW , CIF ,CFR etc

Any problem please feel free to contact us :

Contact Person:	Rachel Zhou
Email :	[email protected]
Phone:	137 6085 4556
Website:	https://gzfude.en.alibaba.com/

Guangzhou Fude Electronic Technology Co., Ltd, has over 10 Years Manufacturing Experiences. It is a manufacture of stepper motors with well-equipped testing equipment and strong technical force.

It is located in Baiyun district, Guangzhou city with more than 7000 square meters.

Quality is our culture. Our manufacture gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D Dept., Engineering Dept., Production Dept., Marketing Dept., After-sales services Dept. And Personnel Dept.

To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!

Our Core Competencies are Hybrid stepper motor, Reduction Gearbox Stepper Motor, Linear stepper motor, Stepper Motor Driver!

Our value Message is with us your money in safe your business in safe!

Please dont hesitate to contact us to get more details, we are waiting for you!
