28mm (NEMA11) 2phase Hybrid Screw Rod Stepper Motor with Good Quality

Name: 28mm (NEMA11) 2phase Hybrid Screw Rod Stepper Motor with Good Quality
Brand: all-electronics-online.com
SKU: 838412225
Availability: InStock
Rating: 4.8 (29 reviews)

Price:	US $ 8-11/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Run
Brand:	Jkongmotor
Certification:	Ce, RoHS, SGS

Product Description

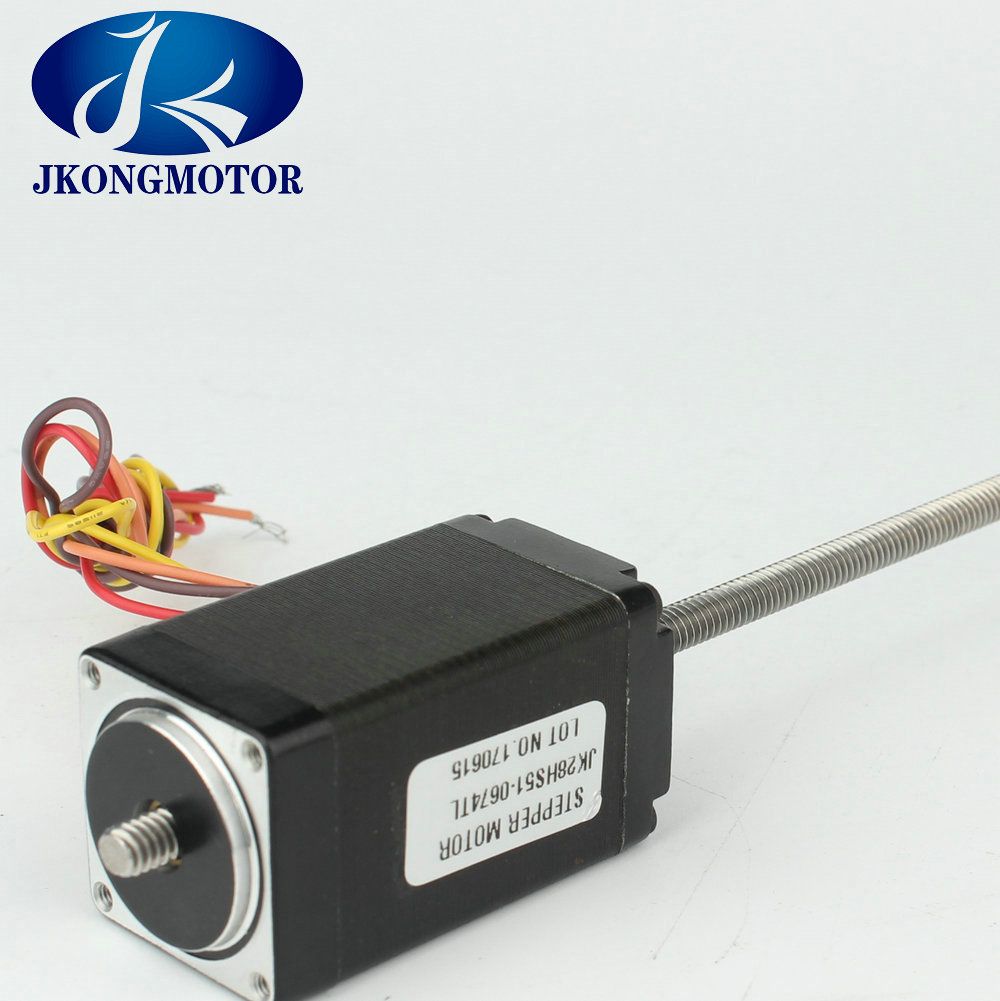

28mm (NEMA11) 2phase hybrid screw rod stepper motor with Good Quality
General Specification:

(Item)	(Specifications)
(Step Angle)	1.8°
(Temperature Rise)	80ºCmax
(Ambient Temperature)	-20ºC~+50ºC
(Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength):	500VAC for 1minute
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	28N (20mm from the flange)
(Max. axial force)	10N

/Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS60-1004	1.8	60	1.0	8	13	7.5	4	280	102	0.5

Screw rod Specification:

Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)	Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)
Tr5	1	1	0.005	Tr8	8	2	0.04
Tr5	2	1	0.01		10	2	0.05
Tr6	2	1	0.01		12	2	0.06
	4	1	0.02		14	2	0.07
	6	1	0.03	Tr10	2	2	0.01
	12	2	0.06		3	1.5	0.015
Tr8	1	1	0.005		4	2	0.02
	2	2	0.01		8	2	0.04
	3	1.5	0.015		10	2	0.05
	4	2	0.02		12	2	0.06

Products of special request can be made according to the customer request !
company information:

our packing:

our certification:

Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.

Audrey Liu

Tel: 0086 519 88372558

Fax: 0086 519 88713769

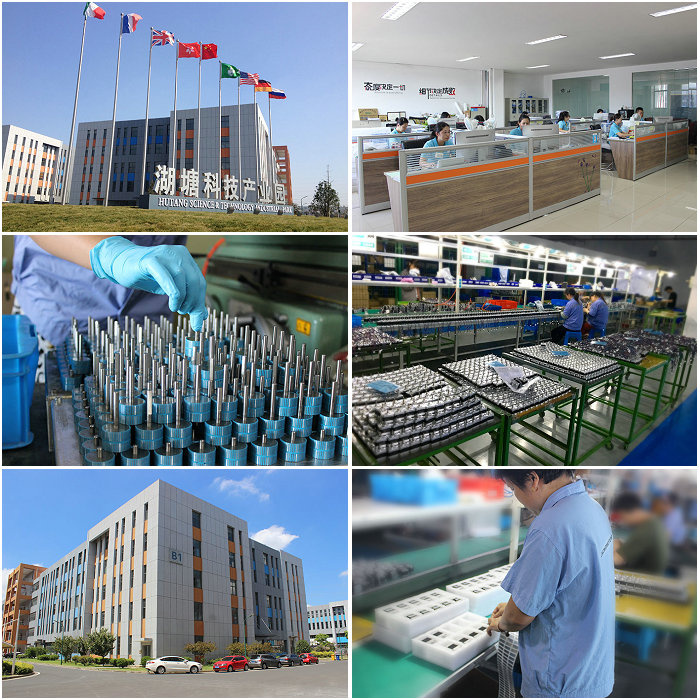

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
