29.4V 15.0A Lipo Smart Battery Charger for 7s 26V Li-ion Battery with C. C--C. V. --Cut off

Name: 29.4V 15.0A Lipo Smart Battery Charger for 7s 26V Li-ion Battery with C. C--C. V. --Cut off
Brand: all-electronics-online.com
SKU: 727380702
Availability: InStock
Rating: 4.5 (134 reviews)

Price:	US $ 50-80/Piece
Min Order:	200/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L500CM-24
For Use:	Standard Battery
Case:	PC+ABS Plastic
Color:	Yes
Recovery Function:	Yes
MCU Controller:	Yes
Customized:	Yes
Reverse Potection:	Yes
Short Circuit Protection:	Yes
Delivery Date:	3-4 Week After Confirm Order
Type:	Lithium Battery
Charger Type:	Li-ion Battery Charger
Charger Application:	Electric Car/Tool/Bicycle/Wheelchair Charger
Nominal Voltage:	29.4V
Compatible Battery Type:	26V Li-ion/Polymer Battery
Size:	223 X 126 X 71mm
Socket Type:	VDE,UL,CCC,UK,PSE,SAA,CCC,TUV

Product Description

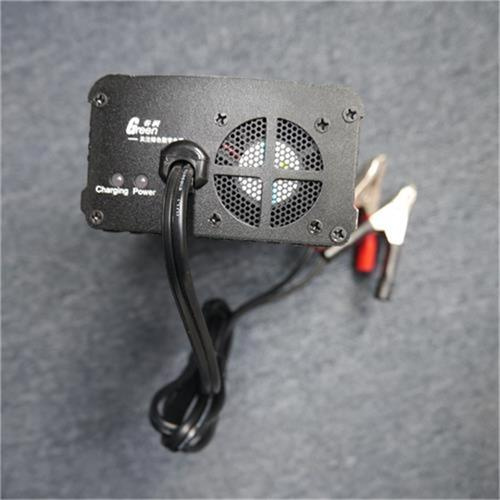

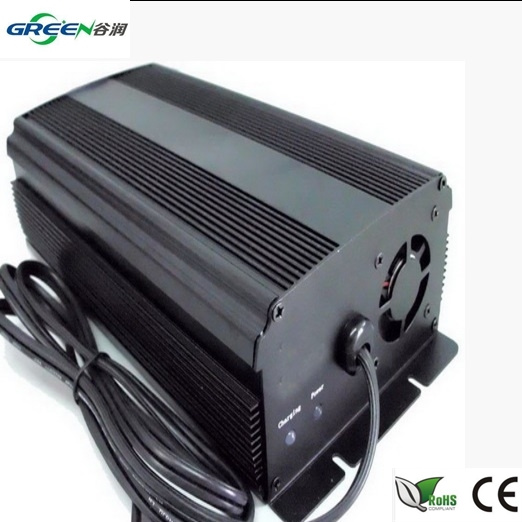

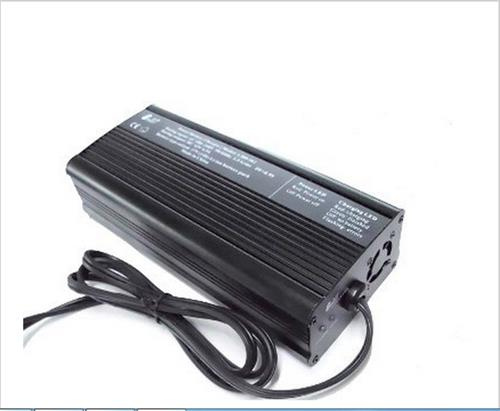

L500CM-24 LiPo Smart Battery Charger for 7S 26V li-ion Battery

Specification
Input: 120 or 240V (defined when order)
Output: 29.4V 15.0A
Charge Process: C.C--C.V.--Cut off
Charger Indicator: Red Charging/Green Finished
Output Protections: Short-circuit, Reverse Polarity
Safety Approval: CE
Size: 223 x 126 x 71mm
Suit for Battery: 26 Volt (7Cells) 10~120Ah Li-ion Battery Charger

Feature:

Auto 4 stages (Pre-CC-CV-Cutoff) charging process.

Pre-charge function for deep discharged battery pack

Designed for 7 series Li-ion/polymer battery

With bi-color LED, red for charging green for finished Red flashing for errors, "off" for no battery

Protection mode for battery polarity reversed or the output connectors shorted.

Meet EN60335-2-29 and UL1310 safety requirements

Specification for L500CM-24

Input Voltage	100V~120V OR 220V~240V AC, 50-60Hz
Input Current	8A @ 100V input
Input power factor	0.7
CV Charge Voltage	L500CM-24	L500CM-36	L500CM-48
	29.4V	42.0V	54.6V
Bulk charge current	Up to 15A	Up to 12A	Up to 9A
Pre-charge current	<3A	<2A	<1A
Operate Temp.	-20ºC~50ºC
Cooling	Fan convection. Do not cover the charger.
Charge principle	Auto 4 stages ( Pre-CC-CV-Cutoff) charging process.
Battery type	7 series Li-ion/polymer battery
Battery capacity	20-200Ah
Size	223 x 126 x 71mm
Output cable & plug	1.5 meter 2xAWG16#, SPT1 wire, alligator clips
Input AC plug	IEC60320-C14
Enclosure	Aluminium casing, with Fan cover.
Weight	1.2g

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
