29.4V 2.8A Lipo Portable Charger for 7 Cell Li-ion Car Battery with Short-Circuit, Reverse Polarity-Ce cUL-

Name: 29.4V 2.8A Lipo Portable Charger for 7 Cell Li-ion Car Battery with Short-Circuit, Reverse Polarity-Ce cUL-
Brand: all-electronics-online.com
SKU: 727142282
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 8-16/Piece
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L100-24
For Use:	Standard Battery
Case:	PC+ABS Plastic
Customized:	Yes
Color:	Yes
Recovery Function:	Yes
MCU Controller:	Yes
Short Circuit Protection:	Yes
Reverse Potection:	Yes
LED:	Yes
Delivery Date:	3-4 Weeks
Type:	Li-Polymer Battery
Charger Type:	Lipo Smart Battery Charger
Charger Application:	Electric Wheelchair, Electric Scooter
Nominal Voltage:	29.4V
Compatible Battery Type:	26V
Size:	170 X 70 X 51mm
Socket Type:	UL, VDE, PSE, UK, SAA...

Product Description

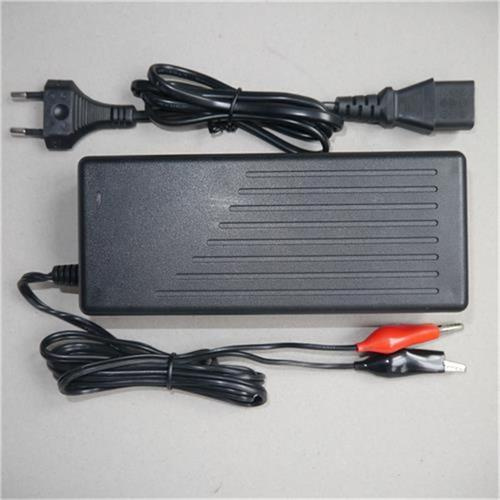

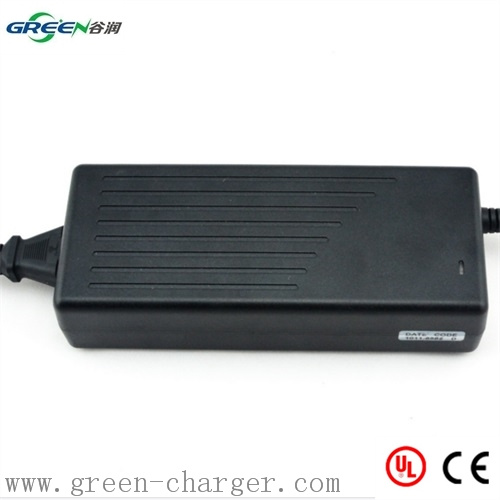

L100-24 LiPo Portable Charger for 7 Cell Li-ion Car Battery

Specification
Input: 100~240V
Output: 29.4V 2.8A
Charge Process: CC(pre-charge)-CC(bulk)-CV-cutoff
Charger Indicator: One bi-color , Red/Green
Output Protections: Short-circuit, Reverse Polarity...
Safety Approval: CE cUL
Size: 170 x 70 x 41mm
Battery type: 26Volt (7Cells) 2~15Ah Li-ion Batteries

Detail Description

Feature:

Auto 4 stages (Pre-CC-CV-Cutoff) charging process.
Pre-charge function for deep discharged battery pack
Designed for 7 series Li-Ion battery pack.
With Bi-color LED indicator, easily know the charging process.
Protection mode for battery polarity reversed or the output connectors shorted.
Meet EN60335-2-29 and UL1310 safety requirements.

Specification for L100-24

Input Voltage	100-240VAC, 50-60Hz
Input Current	1.6A
Back current drain	<1.3mA
Constant voltage	L100-12	L100-24	L100-36	L100-48
	16.8V±1%	29.4V±1%	42.0V±1%	54.6V±1%
Bulk charge current	5.0A±5%	2.8A±5%	2.0A±5%	1.7A±5%
Operate Temperature	-20ºC~40ºC
Cooling	Natural convection. Do not cover the charger.
Charge principle	Auto 4 stages (Pre-CC-CV-Cutoff) charging process.
Battery type	7 series Li-Ion/polymer battery packs
LED display	1 bi-color LED, "Red" for charging and "Green" for finished
Size	170 x 70 x 41mm

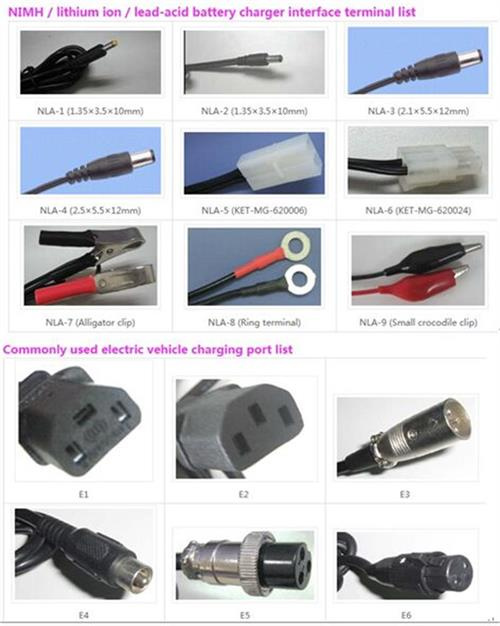

Output cable and plug	1.5 meter 2xAWG18#, SPT1 wire, 5.5x2.1x10mm plug
Input plug	IEC60320-C14 or C8
Enclosure	ABS+PC Plastic housing
Weight	440g

An example shows the duration of 80% state charged for an empty battery.

Battery capacity	G100-24L
3.2Ah	1.5 hours
7.0Ah	3 hours
12Ah	5 hours
25Ah	10 hours

If you have specific parameters and requirements for our Battery Charger, customization is available

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
