2channel 220V AC Wireless RF Remote Control Switch Radio Receiver

Name: 2channel 220V AC Wireless RF Remote Control Switch Radio Receiver
Brand: all-electronics-online.com
SKU: 806891615
Availability: InStock
Rating: 5 (119 reviews)

Price:	US $ 2-2.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZD-2CR220
Frequency:	433.92 MHz
Dimensions:	30 ×55 × 12 mm
Guarantee:	1 Year
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	27A 12V Battery

Product Description

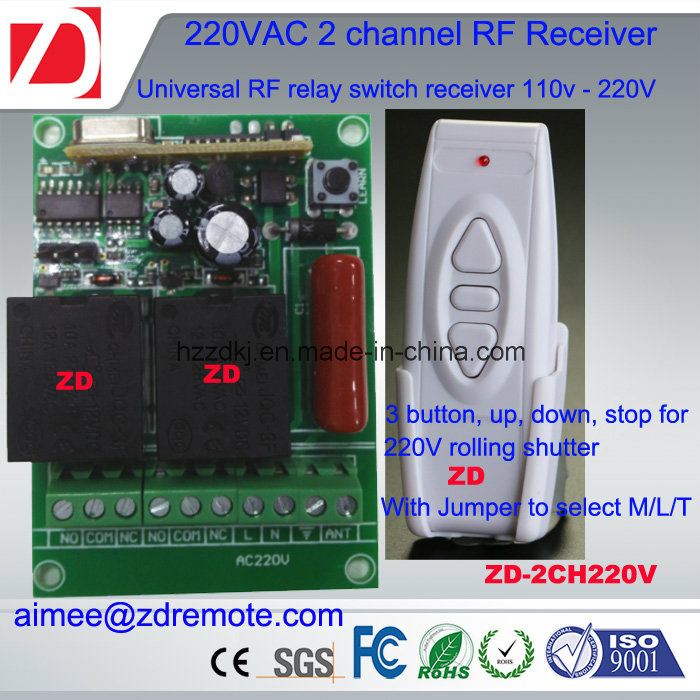

2channel 220V AC Wireless RF Remote Control Switch Receiver

Product name	2ch 220V Receiver
Model No.	ZD-2CR220
Working voltage	AC220V
Frequency	433.92MHz (315MHz optional)
Channel	2-CH(1CH optional)
Receiver mode	Superheterodyne
Encode	Fixed code and Learning code, for rolling code need change IC, also available, pls let we know.
Static current	5mA±2
Working current	50-200mA
Range	50-150m in unobstructed area
Memory capacity	40 remote controls
Wire connect	Terminal block (wire solder optional)

Control mode	Continuous output (bistable) or momentary output(monostable).

Receive sensitivity	-113dBm (max)

Dimensions(L x W x T)	PCB board size : 6.7X4.7X1.7cm common plastic box and waterproof box optional.

OEM and ODM	available
Certification	ISO9001:2000,SGS,D&B,BUREAU, and Intertek
Function	ZD receiver can be used for security system, electric doors, electric windows, lifting equipment, industrial control and household equipment

High stability :Adopting imported SMT component SAW and super high frequency audion

Usage: garage door openers, motorcar alarm system, security device
Operation: Copy face to face

History:

We Hangzhou Zhengdian Technology Co., Ltd was established in 2008, we are a high-tech enterprise which is specialized in wireless remote control system, including RF remote control and IR remote control system.

Performance:

Our production is semi-automatic, like we've got 2 SMT Machines, 1 SMT Reflow Oven, 3 production lines and 2 shield rooms for testing. Our annul turnover is over 10 million RMB which makes us one of the most capable factory of remote control products in China.

We have 9years of sales experiece, 9years of export experience and 9years of experience in OEM and ODM. We have a professional technical development team, and we also have CE, RoHS and FCC certifications.

Product scope:

We mainly produces wireless remote control, remote duplicator, wireless module, tubular motor controller system, shutter door remote control system, barrier control system, electronic curtains remote control system, adjustable-speed fan remote control system, LED light remote control system and other types of remote control products.

Positive vision: Life in the palm of your hand

Positive concept: Innovation of science and technology, people-oriented, strive for perfection
