| Prod Model: |
YET402pc-220 |
| Working Temperature: |
-40°c - +80°c |
| Sensitivity: |
≥-105dBm |
| Use Range: |
Industrial ,Car,Motorcycle,Door Opener,Windows Con |
| Oscillation Resistance: |
Under Your Requests |
| Remote Controlcapacity: |
32 |
| Ransmitting Frequency: |
315m/433.92m/Oters |
| Static Working Current: |
≤6mA |
| Control Voltage: |
AC/DC 12V/24V |
| Channels: |
2 Channel |
| Receiving Sensitivity:≥: |
-112dBm |
| Application: |
Alarm |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Voltage: |
12V/24V |
| Battery Type: |
No Battery |
Product Description

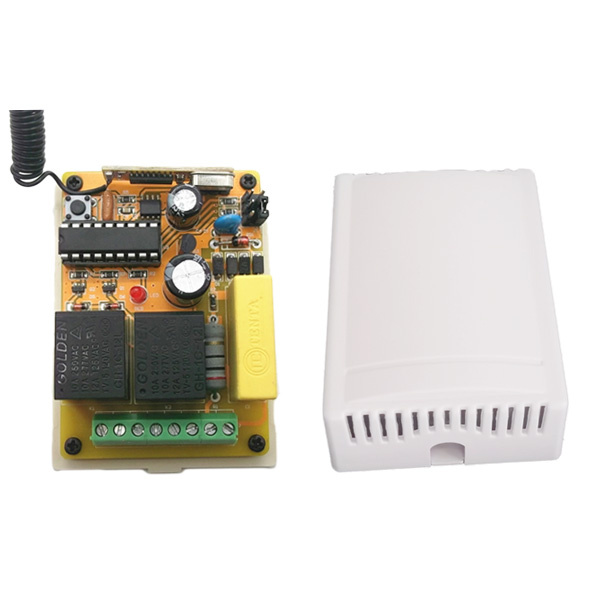

DC12V 10A 2ch 433mhz Wireless RF Remote Control Switch YET402PC-JR
Use range:
Our remote control widely used in garage door ,rolling door ,electronic gate,led light,window industral control ,home appliance,car alarm system, home/store anit-theft alarm,other industrial control and so on.
12-24V DC Universal Remote Control Receiver 433 Rolling Code YET402PC
1. Brief introduction
Our factory design and produce the two channel wireless intellect receiving control
what can provide switch signal to the two relays, so it can meet many requirements such
as: control motor's corotation and reversal; the connection and lock of the switch and
other special control programs. This kind of wireless intellect receiving control main apply
to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security field.
This kind of wireless receiving control is high confidentiality, large memory space,
stable characteristics, low power consume and very convenience, it is unnecessary adopt
the traditional wire jumper or dip switch code but only receive and store the wireless signal
from the remote control, and The lost learnt control can not work if you delete the memory
message of the receiving control, however, it should learning again by the owner if want to
obtain the right of use.
2. The way of output
A. Keeps 8 seconds-- "1" connect
B. Self-lock control -- "2" connect
C. Interlock control -- "3" connect
D. Inching lock control--disconnect
(check the Circuit diagram for details)
3. Learning way and steps
Learning fixed code & learning code:
1. Press learning key of receiver-the pilot lamp light-release learning key and pilot
lamp extinguish , indicate enter into the status of learning.
2. Press any button of the remote control, indicate learning success as the pilot lamp
flash 5 times and automatically exit learning state. Receiver automatically exit
learning state if you do nothing in 32 seconds. (Can store up to 30pcs this type remote
control)
Learning rolling code:
1. Press learning key of receiver-the pilot lamp light-release learning key and pilot
lamp extinguish , indicate enter into the status of learning first time.
2. Press any button of the remote control, indicate first time learning success as the pilot
lamp keep flashing slowly.
3. Repeat the operation of step "1", enter into the status of learning second time.
4. Press the same button in step "2", the pilot lamp flash 5 times, learning successful.
(Can store up to 6pcs this type remote control)
4. Delete memory message
Press the learning key of the receiver-pilot lamp light-hold on pressing over 8
seconds until the pilot lamp extinguish, which indict success to delete the memory
message.
5. Main Technique Data
Input voltage AC 220V
Static working current ≤7mA
Working temperature
-40ºC ~ +80ºC
Receiving sensitive ≥-105dBm
INSTRUCTION MANUAL
YET402PC-220V
Working frequency 315MHz,433MHz (optional)
Relay capacity 10A 250VAC;10A 277VAC;12A125VAC
Receive the type of encoding a. encode learning code and fixed code
b. encode rolling code alone
(optional "a" or "b")
Maximum storage for transmitter 30pcs of learning or fixed code; 6pcs of
rolling code
Size
74.5mm*54.5mm*27mm
6. Circuit | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
