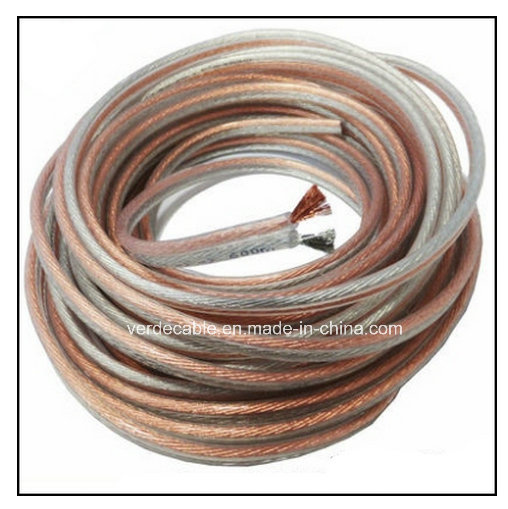

2core 0.75mm 1.5mm 2.5mm Flex Cable Speaker Wire

Name: 2core 0.75mm 1.5mm 2.5mm Flex Cable Speaker Wire
Brand: all-electronics-online.com
SKU: 771865155
Availability: InStock
Rating: 4.5 (103 reviews)

Price:	US $ 0.15-1.8/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	speaker cable
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Size:	0.75mm,1.0mm,1.5, 2.5mm, 4, 6, 10,16,25,....50,
Flexible Class:	5 Class Very Soft
Produceing Experience:	15 Years
OEM:	Yes
Export Experience:	Southeast Asia,Australia,Middle East,South America
Type:	Insulated
Application:	Underground
Insulation Material:	PVC
Certification:	RoHS
Conductor Material:	OFC,Tinned Copper
Sheath Material:	Non-Sheathed

Product Description

2core 4core 0.5mm,0.75mm,1.0mm,1.5mm,2.5mm Multicore PVC Insulated Speaker Wire
1.Hot sale to Australia,Southeast Asia,UK,USA
2.Different specification and size can be customized
3.Description of Speaker cable
Rated voltage 300/500V,450/750V
Conductor class: class5
Conductor material: Copper or Tinned Copper or CCS,CCA,Flexible type
Insulation: PVC or Flame retardant and Fire proof PVC

4.Color:
Transparent,Red,Black, Green,Blue,Yellow, Or customize as per the customer's request

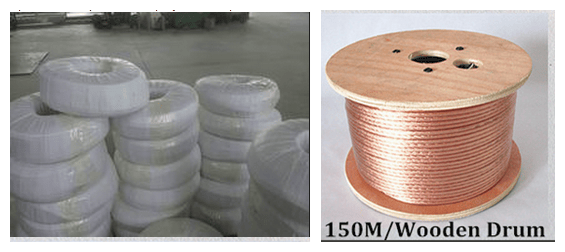

5.Packing:
1)100meter per Roll 2) by drum 3) or according to the customer's request

6.Technical Specification:

Normal area (mm2)	Conductor Structure (mm)	Insulation Average. thickness (mm)	Calculated Overall dia. (mm)
2x0.35	20/0.15
2x0.50	28/0.15	0.70	2.20x4.40
2x0.75	42/0.15	0.70	2.40x4.80
2x1.00	57/0.15	0.80	2.60x5.20
2x1.50	85/0.15	0.90	3.10x6.20
2x2.00	7x36/0.10	1.00	3.90x7.80
2x2.50	7x45/0.10	1.20	4.20x8.40
2x4.00	7x72/0.10	1.30	4.80x9.60
2x0.50	28/0.15	0.80	2.40x4.80
2x0.75	42/0.15	0.80	2.50x5.00
2x1.00	32/0.20	0.80	2.80x5.70
2x1.50	7x27/0.10	0.90	3.20x6.50
2x2.50	7x20/0.15	0.90	3.60x7.40
2x4.00	7x32/0.15	1.00	4.30x8.80
2x6.00	7x48/0.15	1.00	4.80x9.80

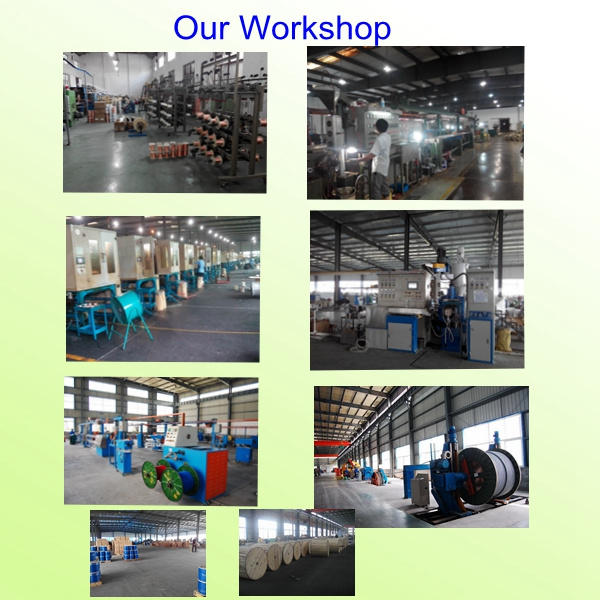

7.Our workshop

8.Used place

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
