2cores Electrical Cable/ 3cores XLPE Cable/ 4cores Electric Wire Cable

Name: 2cores Electrical Cable/ 3cores XLPE Cable/ 4cores Electric Wire Cable
Brand: all-electronics-online.com
SKU: 731737022
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 0.3-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Electric Cable
Normal Sectional Area:	1.5-800mm2
Armoured:	Steel Tape Armoured,Steel Wire Armoured
Standard:	IEC, BS, VDE, GB/T
Insulation Color:	Green/Yellow, Blue, Brown, Black, Grey
Sheath Color:	Black
Delivery Time:	Within 15 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	RoHS
Model:	XLPE Electric Wire Cable
Brand:	Luxing Cables

Product Description

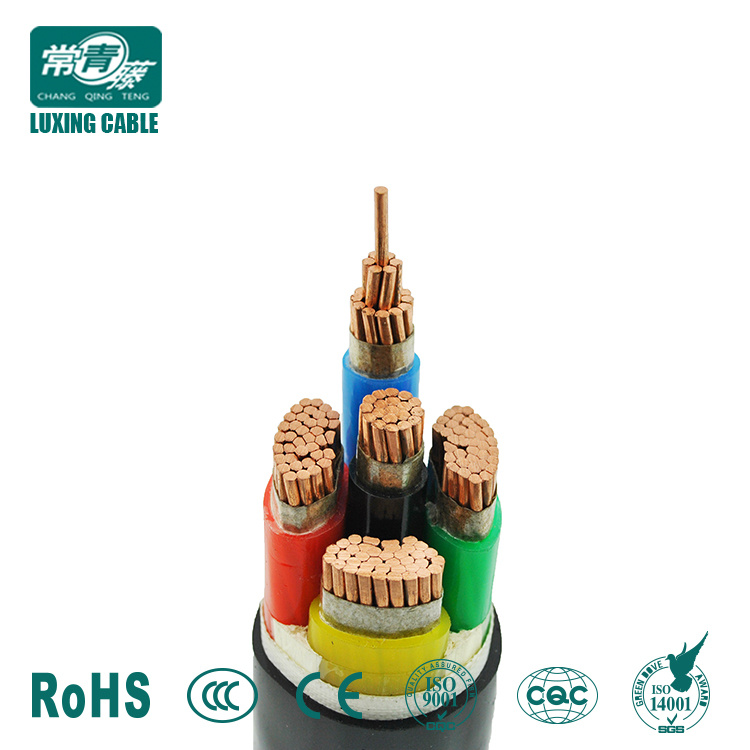

2cores electrical cable/ 3cores xlpe cable/ 4cores electric wire cable

1.Application:

1)These cables are most suitable for direct burial or for installation on trays or ducts, Where there is a risk of mechanical damage, armoured cables should be used.

2) For laying in ground along route with large difference of level able to bear external mechanical forces

2.Standards: IEC60502-1, BS7870-3

3.Construction

Conductor: Cu or Aluminum
Insulation: XLPE (Cross-Linked Polyethylene)
Armoured: non-armor, steel tape armored, steel wire armored
Sheath: PVC,     Sheath Color: Black or Colors

4.Product Description:
-   XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
-   XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
-   XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
-   Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
-   Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
-   Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
    FR - Flame Retardant

5.Cores and Nominal Cross Section Area:

1 core (mm²)	2 core (mm²)	3 core (mm²)	3 core + 1 core (mm²)	4 core (mm²)	3 core+ 2 core (mm²)	4 core + 1 core (mm²)	5 core (mm²)
1×4	2×4	3×4	3×4+1×2.5	4×4	3×4+2×1.5	4×4+1×2.5	5×2.5
1×6	2×6	3×6	3×6+1×4	4×6	3×6+2×4	4×6+1×4	5×4
1×10	2×10	3×10	3×10+1×6	4×10	3×10+2×6	4×10+1×6	5×6
1×16	2×16	3×16	3×16+1×10	4×16	3×16+2×10	4×16+1×10	5×10
1×25	2×25	3×25	3×25+1×16	4×25	3×25+2×16	4×25+1×16	5×16
1×35	2×35	3×35	3×35+1×16	4×35	3×35+2×16	4×35+1×16	5×25
1×50	2×50	3×50	3×50+1×25	4×50	3×50+2×25	4×50+1×25	5×35
1×70	2×70	3×70	3×70+1×35	4×70	3×70+2×35	4×70+1×35	5×50
1×95	2×95	3×95	3×95+1×50	4×95	3×95+2×50	4×95+1×50	5×70
1×120	2×120	3×120	3×120+1×70	4×120	3×120+2×70	4×120+1×70	5×95
1×150	2×150	3×150	3×150+1×70	4×150	3×150+2×70	4×150+1×70
1×185	2×185	3×185	3×185+1×95	4×185	3×185+2×95	4×185+1×95
1×240		3×240	3×240+1×120	4×240	3×240+2×120	4×240+1×120
1×300		3×300	3×300+1×150	4×300	3×300+2×150
1×400
1×500

6.Service Conditions And Parameters Of Cable:
The maximum conductor operating temperature: 90ºC;
Short Circuit Temperature 250ºCNot more than 5 secretary
Environmental Temperature of operating
In air: 40ºC, Underground: 25ºC
Depth of laying in direct: 80cm
Thermal Resistance of soil: 1.2ºC.cm/W
Environment temperature should be no lower than 0ºC for laying the cable.

7.Package:

8.Company Information

-Shandong New Luxing Co.,Ltd

1)Our factory specialized in manufacturing kinds of cable

-power cable, cable wire electrical, bare wire, cu/xlpe/swa/pvc, copper/aluminum, Amoured/Aerial,

-0.75mm/1mm/1.5mm/2.5mm/3.5mm/4mm/6mm/10mm/16mm/25mm/35mm/50mm/70mm/95mm/120mm/150mm/185mm/

240mm/300mm/400mm/500mm/630mm/800mm,

-12v/220v/0.6/1kv/11kv/33kv/110kv/132kv, 3/4/5/6/7/8/16 core) since the year of 1999.

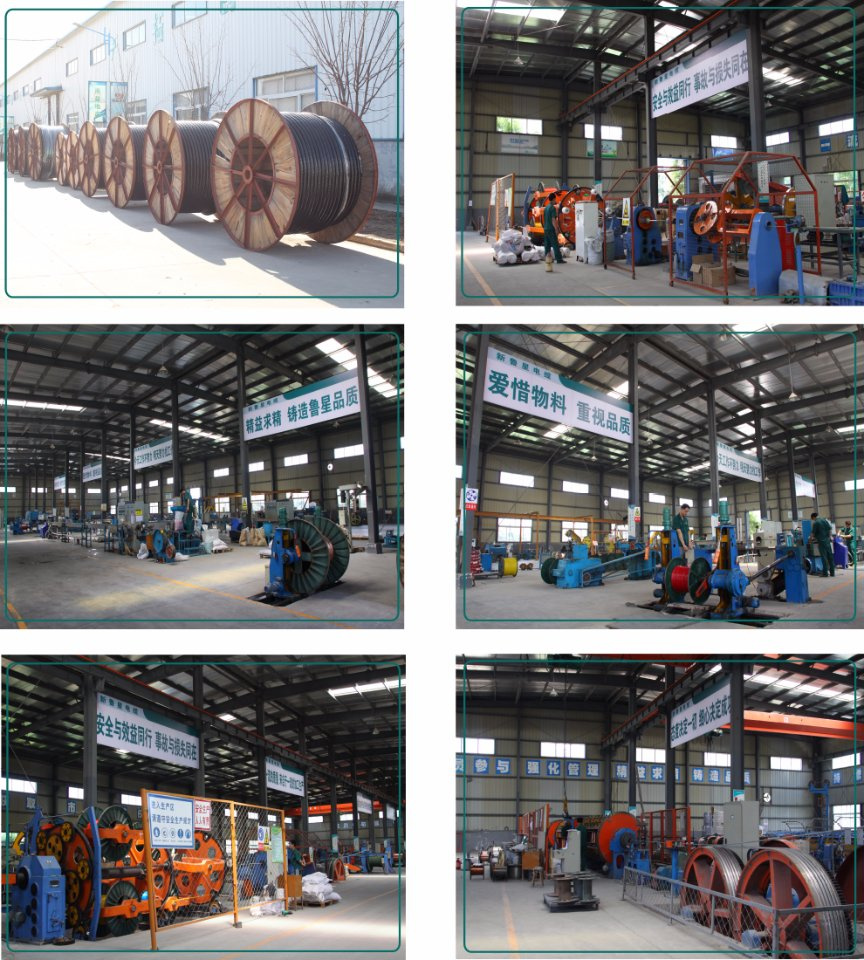

2)Our factory have Tengzhou, Dezhou and Wuxi city three production bases and current employees more than 700 people.

Our cables in good quality standard and passed CE, ISO9000/14000,CCC,IEC,BS standard authentication.

3)Our company had fixed partnership with SGCC&STATE GRID CORPORATION OF CHINA(China largest power enterprise)
and many other our country State-owned big enterprises.

4)And supply IEC/BS/VDE standard cable wire electrical & power cable to

Africa( Uganda, South Africa, Zimbabwe...),

Southeast Aisa(Myanmar, Thailand, Indonesia, Philippines, Malaysia...),

East Asia(Korea...),

South America(Brazil...),

Europe(Czech republic...) market.

-Certifications: ISO9001/14000, CE, RoSH, CCC, IEC, BS, EN, VDE

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
