| Prod Model: |
LC Patchcord |
| Business Type: |
Manufacturer |
| Length: |
0.5m/1m/3m/5m or Customized |
| Cable Color: |
Yellow Color or Customized |
| Fiber Type: |
G652D, G657A1, G657A2,Om1,Om2,Om3,Om4 |
| Payment Terms: |
Tt/Paypal/LC |
| Cores: |
Simplex or Duplex |
| Material: |
PVC/LSZH/Ofnp/Ofnr |
| Used For: |
FTTX/FTTH |
| Diameter: |
0.9mm/2.0mm/3.0mm |
| Connector Type: |
LC/Sc/St/FC/Mu/E2000 |
| Application: |
Communication |
| Certification: |
CCC |
| Type: |
Single/Multimode |
| Connection Structure: |
Sc-LC |
| Sheath Material: |
PVC/LSZH/Ofnp/Ofnr |
Product Description

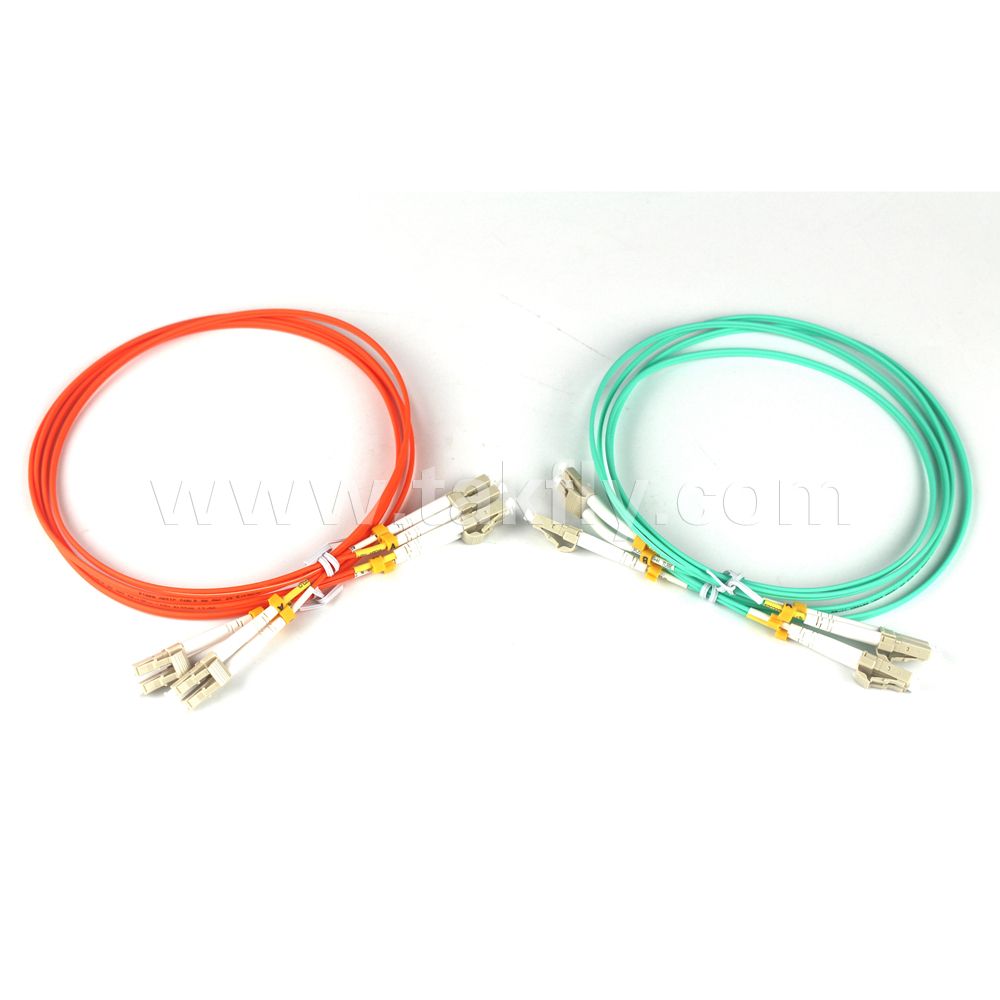

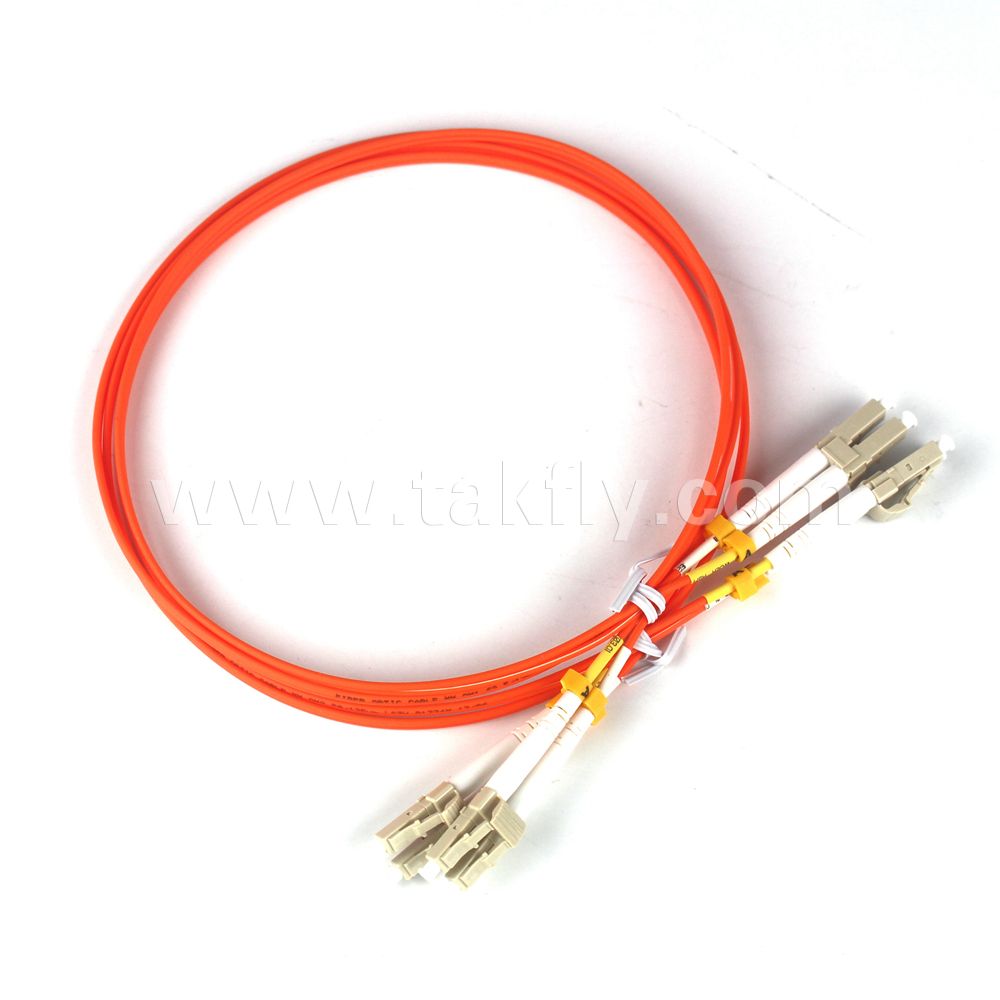

0.2dB FTTH LC Single Mode Multimode Simplex Duplex Fiber Optic Patchcord

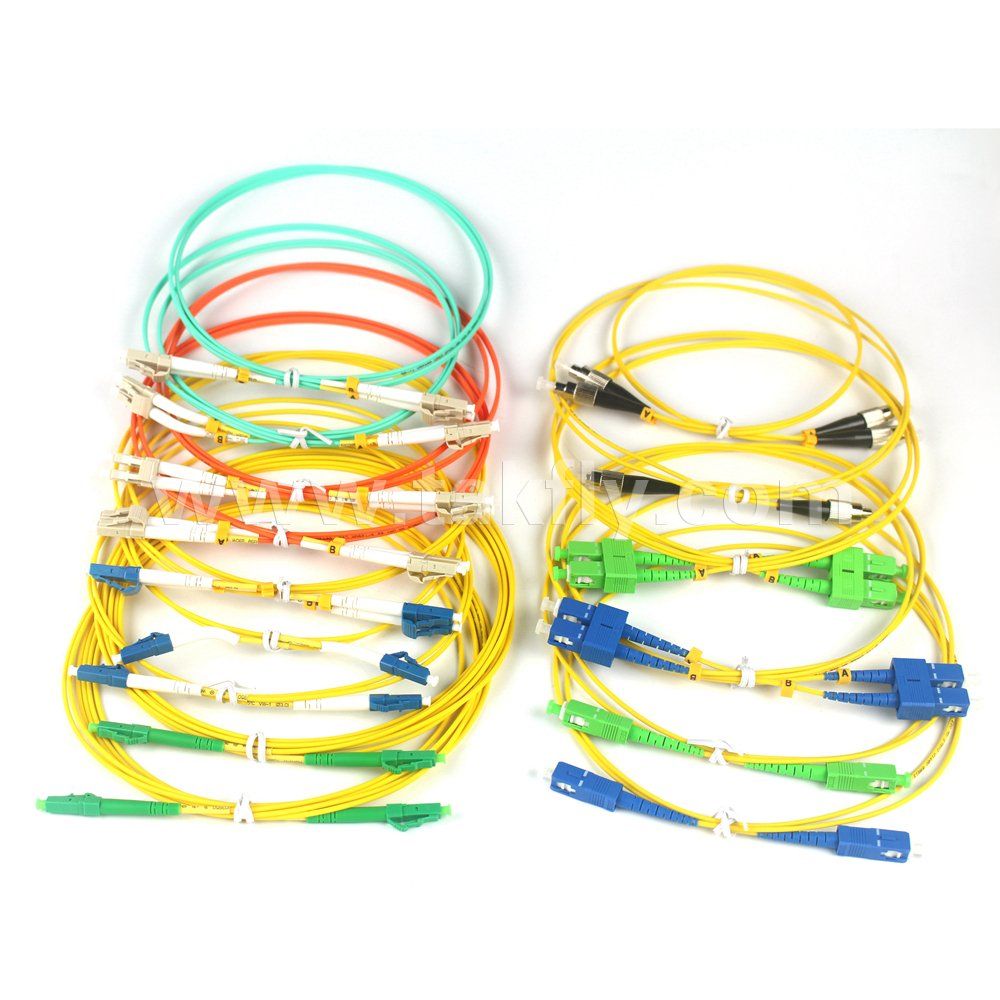

Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC,MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
All connectors have precision pre-radiused zirconia ferrules
ST and FC connectors have metal bodies
Corning, YOFC, OFS fiber is standard
Standard and custom configurations available
Duplex clips included with duplex configurations
Advantages:1. Takfly has 4 times polishing the connector: 1200um polishing, 9um polishing, 1um polishing and 0.5um polishing;
2. The concentricity of the ferrule<0.5
3. IL<0.2dB.
4. Lead time for delivery: 2-4 working days.
5. Takfly's manufacturing machines are imported from Germany and Japan.
Features1. Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2. Connector type standard: IEC61574 series
3. Low Insertion Loss : IEC 61300-3-4, IL≤0.20dB
4. High Return Loss :IEC61300-3-6; RL≥60dB
5. Flammability:IEC60332-1
6. Repeat Plug feature is good, good interchangeability
7. Ceramic Ferrule, high-density docking, concentricity ≤0.5
8. Can provide general PVC or LSZH cable cable
Application1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Specification| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Order Information| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
| Fiber cable performance specifications |
| Fiber type | Min.Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km |
50/125
10Gig Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km |
| Fiber type | Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,,G657A2 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)OM4 |
| Fiber | YOFC, CORNING, OFS |
| Connector1 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Connector2 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm, 3.0mm |
| Cable jacket | PVC,LSZH, OFNR, OFNP |
| length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m (custom) |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
