| Prod Model: |
TK228 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| GSM Frequencies: |
Quad-Band |
| Voltage: |
6V-36VDC |
| Offline Data Logger: |
4MB |
| Back-up Battery: |
250mAh |
| Auto Arm/Disarm: |
Auto Arm/Disarm |
| Bluetooth Diagnostic: |
Yes |
| Anti-Tamper: |
Yes |
| Cut Off Engine: |
by Wireless Immobilizer |
| Live Tracking: |
Yes |
| Mobile APP: |
Yes |
| Type: |
GPS Receiver |
| Use: |
Automotive |
| Screen Size: |
No Screen OBD Scanner |
| Port Number: |
56 |
| Carrier Frequency: |
Quad Band |
| Model: |
Car Auto Scanner Tk228 |
| Brand: |
U-Blox |
| Chip: |
U-Blox7 Chipset |
| Certification: |
Ce, RoHS, FCC |
Product Description

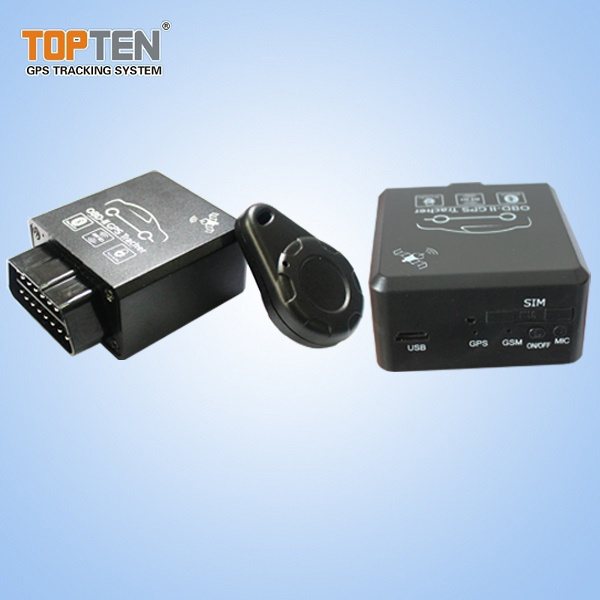

TK228 OBD-II GPS Tracker is a multifunctional product.
It is an integration of GPS tracking system, RFID car alarm system & OBD-II Diagnostic system. It has plug & play design, which is compatible with almost all the cars with OBD-II connector.
The device will fetch those important data (speed, rpm, odometer, speed, driver behavior data...etc) via CAN-BUS and send out by GPRS network or by blue-tooth connection.
It adapts 2.4Ghz RFID technology, which can make it work as a simple keyless alarm system with easy installation.
In arm status, the following operations will trigger alarm: engine on, vibration, cut-off power & take-out of the device. The system will send out alarm message with location by SMS/GPRS to your mobile phone or tracking center immediately.
And wireless immobilizer will lock engine safely.
Features& Functions
1. Plug & play design with OBD-II connector, compatible with all the vehicles with OBD-II connector,
2. It is the integration of GPS tracker + RFID Car alarm + Bluetooth Diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm, once RFID tag is away, if the device is taken out, it will trigger this alarm;
9. Built-in shock sensor for power saving & triggering vibration alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID ID identification function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Industrial design, suitable for extremely harsh condition of work;
16. With IOS APP and Android APP for tracking;

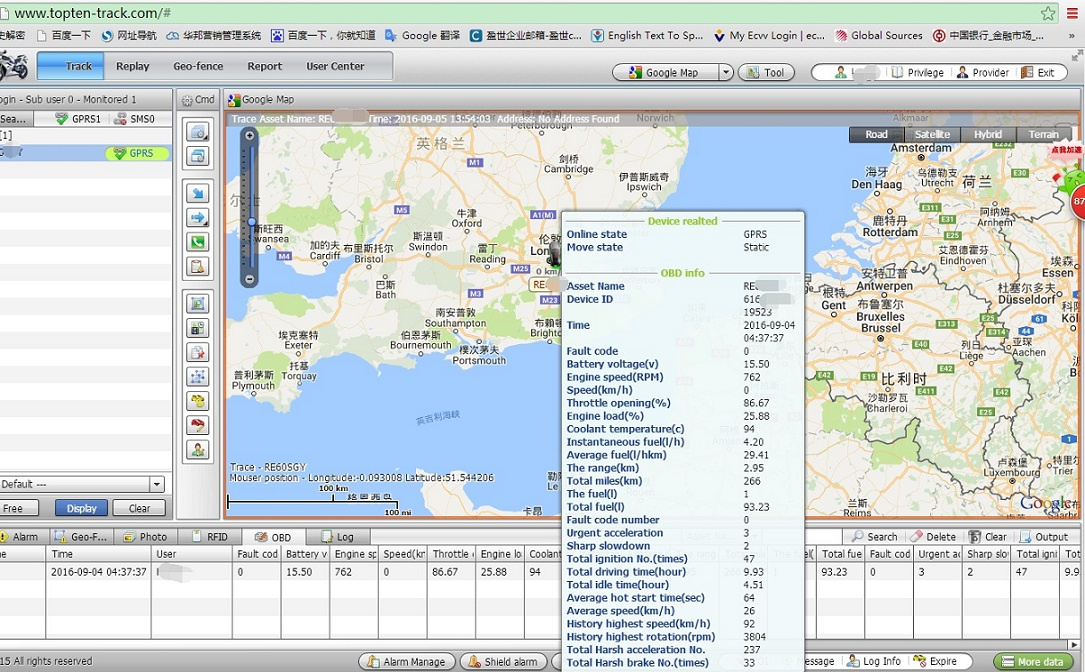

17 Transmission of the following data via blue-tooth or GPRS: (1) Battery's voltage, RPM, speed, TPS throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times; (2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.

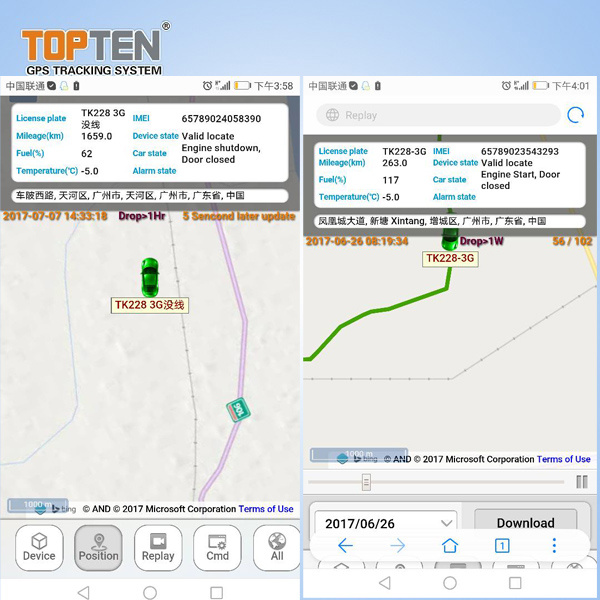

GPS App:
Welcome to meet us!Fair: Global Sources Consumer Electronics Show
Date: 11-Oct-2017 to 14-Oct-2017
Location: Asia-World Expo , Hong Kong
Both Number: 1P11
Fair: Global Sources Consumer Electronics Show
Date: 11-Apr-2018 to 14-Apr-2018
Location: Asia-World Expo , Hong Kong
Both Number: 1J15
Contact us now for more details!
Tel: +86 020 3835 1400
Guangzhou Topten Electronics Factory is a leading and professional enterprise which specializes in GSM car alarm system, GPS tracking system and other security products in China.
Topten Electronics Technology Limited is the subsidiary company of Guangzhou Topten Electronics Factory.
Our key products are GPS/GSM car alarm system, GPS/GPRS vehicle tracking system, GSM car alarm system.Parts of our products have gained the CE and FCC approval.It is warmly welcomed by customers from more than 95 countries in Africa, Middle East, Europe and Southeast Asia.
We have much experience in security field, especially in car alarm and GPS vehicle tracking, which makes us experts in providing reliable and cost-effective solutions for monitoring and protecting vehicles.We have strong force in continuous research and development, which enables us to be the leading manufacturer in GPS tracking system and GSM car alarm.
We adopt an advanced management system to ensure a qualified working team and the promptness to act to the market.Strict quality control is executed in each link of the whole production process.Every step from materials to semi-finished items to completed products is operated according to the requirements of ISO9001:2000 quality management system.
With the best service, high quality products, competitive price and attractive functions, we are sure that you will be satisfied with our cooperation.We sincerely hope to establish the friendly and mutual-beneficial partnership with you in the coming future.
