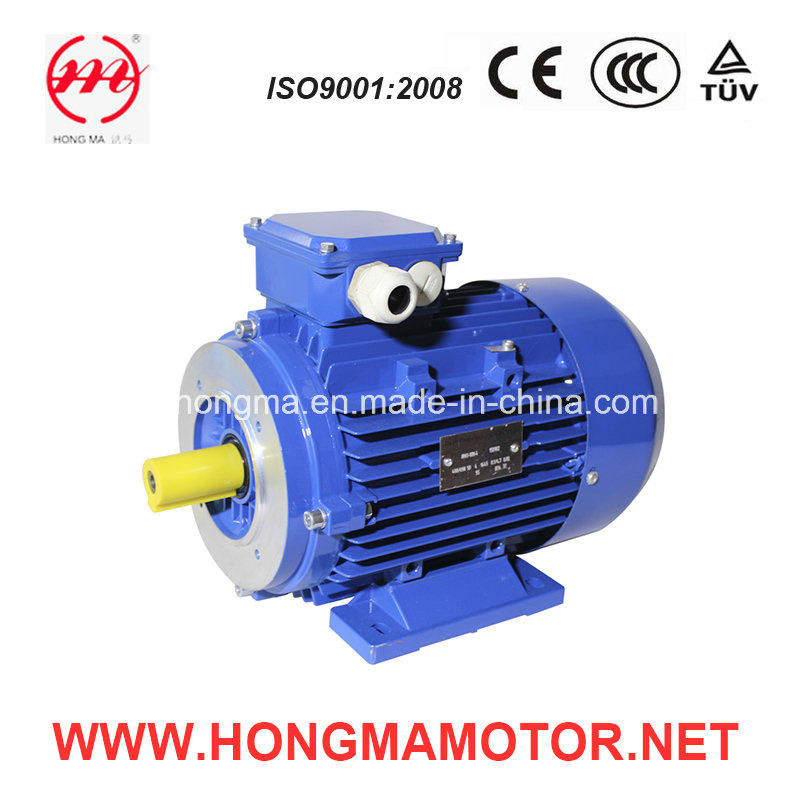

2hma High Efficient AC Electric Asynchronous Induction Motor
| Price: |
US $ 43.6-276.8set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
2HMA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size Range: |
H80-160 |
| Rated Power Range: |
0.75kw-18.5kw |
| Rated Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Frequency: |
50Hz, 60Hz |
| Protection Class: |
IP44, IP54, IP55 |
| Insulation Class: |
B\F\H |
| Mounting Type: |
B3, B5, B14, B35multi and Pad Mounting |
| Ambient Temperature: |
-20~+40 °c |
| Altitude: |
Not Exceed 1000m |
| Origial Place: |
Zhejiang, China |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Number Of Poles: |
2, 4, 6 |
| Certification: |
Ce |
| Brand: |
Hongma |
Product Description
Product Decription
HMA-IE2(2HMA) Aluminium Series High efficiency Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.The HMA Series Motors are enhanced performance motors built in light weight, all aluminum frames. HMA-IE2 Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 80 to 160. HMA-IE2 Aluminium Series High efficiency Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.
Technical Data | Frame Size Range | 80-160 |
| Efficiency Standard | IE2 |
| Pole | 2/4/6 |
| Output Range | 0.75KW-18.5kw |
| Rated Voltage | 220/380V, 380/660V, 230/400V, 400V/690V |
| Terminal Box | Top Mounted |
| Housing Material | Aluminum |
| Duty | S1 |
| Protection Class | IP44, IP54, IP55 |
| Insulation Class | B,F,H |
| Mounting Type | B3, B5, B14, B35 multi and pad mounting |
| Ambient Temperature | -20~+40 °C |
| Altitude | ≤1000M |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | | Is/In | Weight |
| 380 | 400 | 415 |
| 2HMA-IE2 | 801-2 | 0.75 | 77.4 | 0.83 | 2875 | 1.8 | 1.7 | 1.6 | 2.5 | 3 | 5.3 | 10.5 |
| 2HMA-IE2 | 802-2 | 1.1 | 79.6 | 0.84 | 2888 | 2.5 | 2.4 | 2.3 | 3.2 | 3.8 | 7 | 11.2 |
| 2HMA-IE2 | 90S-2 | 1.5 | 81.3 | 0.84 | 2887 | 3.3 | 3.2 | 3.1 | 2.7 | 3.5 | 7.1 | 14.5 |
| 2HMA-IE2 | 90L-2 | 2.2 | 83.2 | 0.85 | 2889 | 4.7 | 4.5 | 4.3 | 2.4 | 3 | 6.9 | 16.8 |
| 2HMA-IE2 | 100L-2 | 3 | 84.6 | 0.87 | 2890 | 6.2 | 5.9 | 5.7 | 3.2 | 4 | 8 | 21.5 |
| 2HMA-IE2 | 112M-2 | 4 | 85.8 | 0.88 | 2901 | 8.0 | 7.6 | 7.4 | 2.5 | 3 | 7.5 | 27.5 |
| 2HMA-IE2 | 132S1-2 | 5.5 | 87 | 0.88 | 2915 | 10.9 | 10.4 | 10.0 | 2.7 | 3.5 | 7.5 | 41.5 |
| 2HMA-IE2 | 132S2-2 | 7.5 | 88.1 | 0.88 | 2915 | 14.7 | 14.0 | 13.5 | 2.4 | 3.3 | 7.5 | 47 |
| 2HMA-IE2 | 160M1-2 | 11 | 89.4 | 0.89 | 2930 | 21.0 | 20.0 | 19.2 | 2.2 | 2.9 | 7.6 | 72 |
| 2HMA-IE2 | 160M2-2 | 15 | 90.3 | 0.89 | 2940 | 28.4 | 26.9 | 26.0 | 2.3 | 3 | 7.6 | 83 |
| 2HMA-IE2 | 160L-2 | 18.5 | 90.9 | 0.90 | 2940 | 34.4 | 32.6 | 31.5 | 2.3 | 3.1 | 7.4 | 90 |
| 2HMA-IE2 | 802-4 | 0.75 | 79.6 | 0.76 | 1428 | 1.9 | 1.8 | 1.7 | 2.4 | 2.9 | 5 | 10.5 |
| 2HMA-IE2 | 90S-4 | 1.1 | 81.4 | 0.77 | 1431 | 2.7 | 2.5 | 2.4 | 3 | 3.5 | 6 | 15 |
| 2HMA-IE2 | 90L-4 | 1.5 | 82.8 | 0.79 | 1438 | 3.5 | 3.3 | 3.2 | 3.2 | 3.8 | 6.8 | 17.5 |
| 2HMA-IE2 | 100L1-4 | 2.2 | 84.3 | 0.81 | 1441 | 4.9 | 4.7 | 4.5 | 3 | 3.5 | 7 | 24 |
| 2HMA-IE2 | 100L2-4 | 3 | 85.5 | 0.82 | 1429 | 6.5 | 6.2 | 6.0 | 2.6 | 3.3 | 7 | 25 |
| 2HMA-IE2 | 112M-4 | 4 | 86.6 | 0.82 | 1444 | 8.6 | 8.1 | 7.8 | 3.5 | 4 | 7.5 | 32 |
| 2HMA-IE2 | 132S-4 | 5.5 | 87.7 | 0.83 | 1456 | 11.5 | 10.9 | 10.5 | 2.2 | 2.8 | 6.4 | 46 |
| 2HMA-IE2 | 132M-4 | 7.5 | 88.7 | 0.84 | 1455 | 15.3 | 14.5 | 14.0 | 2.4 | 3 | 7 | 54 |
| 2HMA-IE2 | 160M-4 | 11 | 89.8 | 0.84 | 1470 | 22.2 | 21.0 | 20.3 | 2.5 | 2.9 | 6.9 | 77 |
| 2HMA-IE2 | 160L-4 | 15 | 90.6 | 0.85 | 1470 | 29.6 | 28.1 | 27.1 | 2.5 | 3 | 7.5 | 90 |
| 2HMA-IE2 | 90S-6 | 0.75 | 75.9 | 0.72 | 944 | 3.4 | 2.0 | 1.9 | 2.2 | 2.4 | 4.5 | 13.5 |
| 2HMA-IE2 | 90L-6 | 1.1 | 78.1 | 0.73 | 928 | 4.7 | 2.8 | 2.7 | 2.4 | 2.6 | 4.5 | 18 |
| 2HMA-IE2 | 100L-6 | 1.5 | 79.8 | 0.75 | 939 | 6.2 | 3.6 | 3.5 | 1.8 | 2.2 | 4.2 | 22.5 |
| 2HMA-IE2 | 112M-6 | 2.2 | 81.8 | 0.76 | 936 | 8.7 | 5.1 | 4.9 | 2.3 | 2.8 | 4.5 | 27 |
| 2HMA-IE2 | 132S-6 | 3 | 83.3 | 0.76 | 960 | 11.7 | 6.8 | 6.6 | 1.8 | 2.4 | 4.5 | 38.5 |
| 2HMA-IE2 | 132M1-6 | 4 | 84.6 | 0.76 | 957 | 15.3 | 9.0 | 8.7 | 2.3 | 2.7 | 5 | 44.5 |
| 2HMA-IE2 | 132M2-6 | 5.5 | 86 | 0.77 | 962 | 20.5 | 12.0 | 11.6 | 1.9 | 2.8 | 5.5 | 52.5 |
| 2HMA-IE2 | 160M-6 | 7.5 | 87.2 | 0.77 | 975 | 27.5 | 16.1 | 15.5 | 2 | 3 | 6.5 | 77 |
| 2HMA-IE2 | 160L-6 | 11 | 88.7 | 0.78 | 975 | 39.3 | 22.9 | 22.1 | 2.4 | 3.3 | 7.5 | 90 |
Connection: Power under 3KW selects Star connection;Power up 3KW selects Delta connection Package The range of frame size from 80 to 132 :Package by carton box and then packed by
wooden box
The range of frame size 160 and above:one wooden box per set Our Cerfiticate

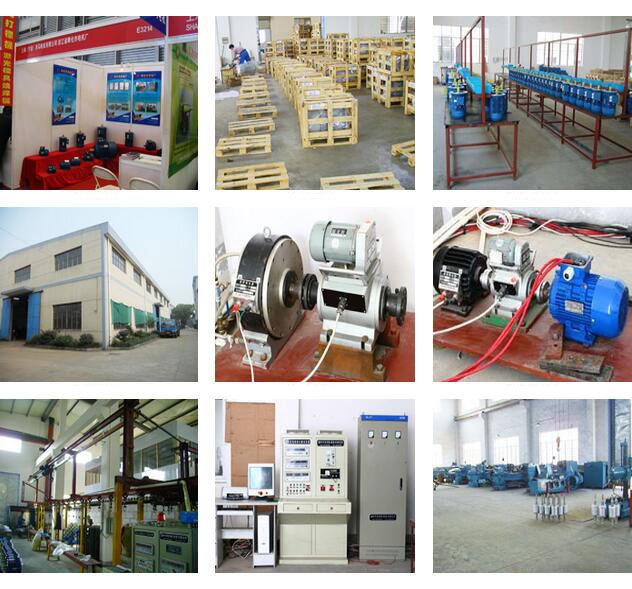

Our Factory
