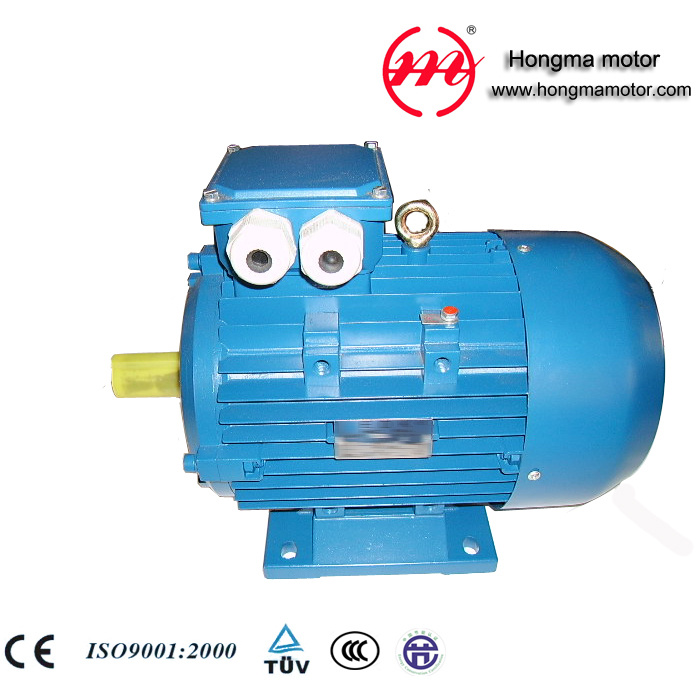

2hma-Ie2 (EFF1) Series High Efficiency Electric Motor
| Price: |
US $ 43/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
2HMA H80-160 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Efficiency Class: |
Ie2 |
| Frame Size: |
H80-160 |
| Poles: |
2, 4, 6, 8 Poles |
| Rated Power: |
0.75-18.5kw |
| Rated Voltage: |
220/380V, 380/660V, 230/4 |
| Frequency: |
50Hz, 60Hz |
| Protection Class: |
IP44, IP54, IP55, IP5 |
| Insulation Class: |
B, F, H |
| Mounting Type: |
B3, B5, B14, B34, B35 Mult |
| Ambient Temperature: |
-20~+40 °c |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Species: |
1hma-Ie1 Motor |
| Brand: |
2, 4, 6, 8 |
Product Description
2HMA-IE2 (EFF1) Series High Efficiency Electric Motor 2HMA-IE2 (EFF1) Series Aluminum Housing Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard. HMA-IE2 (EFF1) Series Aluminum Housing Motor Characteristics and advantages:Efficiency Class: IE2Frame Size: H80-160Poles: 2, 4, 6 polesRated Power: 0.75KW-18.5KWRated Voltage: 220/380V, 380/660V, 230/400V, 400V/690VFrequency: 50HZ, 60HZProtection Class: IP44, IP54, IP55, IP56Insulation Class: B/F/HMounting Type: B3, B5, B14, B35multi and pad mountingAmbient Temperature: -20~+40 °CAltitude: ≤1000M | Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | Tmax/Tn | Is/In |
| 380 | 400 | 415 |
| 2HMA | 801-2 | 0.75 | 77.4 | 0.83 | 2875 | 1.8 | 1.7 | 1.6 | 2.5 | 3 | 5.3 |
| 2HMA | 802-2 | 1.1 | 79.6 | 0.84 | 2888 | 2.5 | 2.4 | 2.3 | 3.2 | 3.8 | 7 |
| 2HMA | 90S-2 | 1.5 | 81.3 | 0.84 | 2887 | 3.3 | 3.2 | 3.1 | 2.7 | 3.5 | 7.1 |
| 2HMA | 90L-2 | 2.2 | 83.2 | 0.85 | 2889 | 4.7 | 4.5 | 4.3 | 2.4 | 3 | 6.9 |
| 2HMA | 100L-2 | 3 | 84.6 | 0.87 | 2890 | 6.2 | 5.9 | 5.7 | 3.2 | 4 | 8 |
| 2HMA | 112M-2 | 4 | 85.8 | 0.88 | 2901 | 8.0 | 7.6 | 7.4 | 2.5 | 3 | 7.5 |
| 2HMA | 132S1-2 | 5.5 | 87 | 0.88 | 2915 | 10.9 | 10.4 | 10.0 | 2.7 | 3.5 | 7.5 |
| 2HMA | 132S2-2 | 7.5 | 88.1 | 0.88 | 2915 | 14.7 | 14.0 | 13.5 | 2.4 | 3.3 | 7.5 |
| 2HMA | 160M1-2 | 11 | 89.4 | 0.89 | 2930 | 21.0 | 20.0 | 19.2 | 2.2 | 2.9 | 7.6 |
| 2HMA | 160M2-2 | 15 | 90.3 | 0.89 | 2940 | 28.4 | 26.9 | 26.0 | 2.3 | 3 | 7.6 |
| 2HMA | 160L-2 | 18.5 | 90.9 | 0.90 | 2940 | 34.4 | 32.6 | 31.5 | 2.3 | 3.1 | 7.4 |
| 2HMA | 802-4 | 0.75 | 79.6 | 0.76 | 1428 | 1.9 | 1.8 | 1.7 | 2.4 | 2.9 | 5 |
| 2HMA | 90S-4 | 1.1 | 81.4 | 0.77 | 1431 | 2.7 | 2.5 | 2.4 | 3 | 3.5 | 6 |
| 2HMA | 90L-4 | 1.5 | 82.8 | 0.79 | 1438 | 3.5 | 3.3 | 3.2 | 3.2 | 3.8 | 6.8 |
| 2HMA | 100L1-4 | 2.2 | 84.3 | 0.81 | 1441 | 4.9 | 4.7 | 4.5 | 3 | 3.5 | 7 |
| 2HMA | 100L2-4 | 3 | 85.5 | 0.82 | 1429 | 6.5 | 6.2 | 6.0 | 2.6 | 3.3 | 7 |
| 2HMA | 112M-4 | 4 | 86.6 | 0.82 | 1444 | 8.6 | 8.1 | 7.8 | 3.5 | 4 | 7.5 |
| 2HMA | 132S-4 | 5.5 | 87.7 | 0.83 | 1456 | 11.5 | 10.9 | 10.5 | 2.2 | 2.8 | 6.4 |
| 2HMA | 132M-4 | 7.5 | 88.7 | 0.84 | 1455 | 15.3 | 14.5 | 14.0 | 2.4 | 3 | 7 |
| 2HMA | 160M-4 | 11 | 89.8 | 0.84 | 1470 | 22.2 | 21.0 | 20.3 | 2.5 | 2.9 | 6.9 |
| 2HMA | 160L-4 | 15 | 90.6 | 0.85 | 1470 | 29.6 | 28.1 | 27.1 | 2.5 | 3 | 7.5 |
| 2HMA | 90S-6 | 0.75 | 75.9 | 0.72 | 944 | 3.4 | 2.0 | 1.9 | 2.2 | 2.4 | 4.5 |
| 2HMA | 90L-6 | 1.1 | 78.1 | 0.73 | 928 | 4.7 | 2.8 | 2.7 | 2.4 | 2.6 | 4.5 |
| 2HMA | 100L-6 | 1.5 | 79.8 | 0.75 | 939 | 6.2 | 3.6 | 3.5 | 1.8 | 2.2 | 4.2 |
| 2HMA | 112M-6 | 2.2 | 81.8 | 0.76 | 936 | 8.7 | 5.1 | 4.9 | 2.3 | 2.8 | 4.5 |
| 2HMA | 132S-6 | 3 | 83.3 | 0.76 | 960 | 11.7 | 6.8 | 6.6 | 1.8 | 2.4 | 4.5 |
| 2HMA | 132M1-6 | 4 | 84.6 | 0.76 | 957 | 15.3 | 9.0 | 8.7 | 2.3 | 2.7 | 5 |
| 2HMA | 132M2-6 | 5.5 | 86 | 0.77 | 962 | 20.5 | 12.0 | 11.6 | 1.9 | 2.8 | 5.5 |
| 2HMA | 160M-6 | 7.5 | 87.2 | 0.77 | 975 | 27.5 | 16.1 | 15.5 | 2 | 3 | 6.5 |
| 2HMA | 160L-6 | 11 | 88.7 | 0.78 | 975 | 39.3 | 22.9 | 22.1 | 2.4 | 3.3 | 7.5 |
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
