2hma Motor/Hm Series Three-Phase Asynchronous Motor with Ie2

Name: 2hma Motor/Hm Series Three-Phase Asynchronous Motor with Ie2
Brand: all-electronics-online.com
SKU: 780141415
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 50-270/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	2HMA801-2-0.75-----2HMA160L-6-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency Class:	Ie2
Frame Size:	H80-160
Rated Power:	0.75-18.5kw
Protection Class:	IP44,IP54,IP55c
Frequency:	50Hz,60Hz
Rated Voltage:	220/380V,380/660V,230/400
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Casing Protection:	Protection Type
Number Of Poles:	2.4.6.8
Brand:	Hongma

Product Description

2HMA/IE2 Aluminium Series Premium efficiency Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.
2HMA/IE2 Series Motors are enhanced performance motors built in light weight, all aluminum frames.
2HMA/IE2 Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 80 to 160.
2HMA/IE2 Aluminium Series Premium efficiency Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.

2HMA/IE2 Aluminium series premium efficiency Motor

2HMA/IE2 Series Aluminum Housing Motor Characteristics and advantages

Efficiency Class:IE2
Frame Size: H80-160
Poles: 2,4,6 poles
Rated Power: 0.75-18.5KW
Rated Voltage: 220/380V,380/660V,230/400V,400V/690V
Frequency: 50HZ,60HZ
Protection Class: IP44,IP54,IP55C
Insulation Class: B,F,H

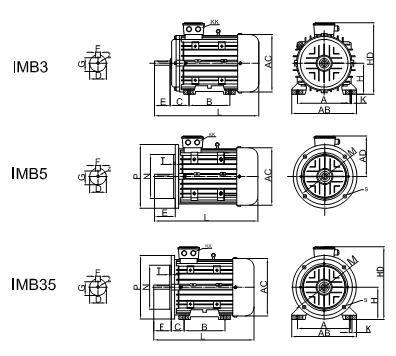

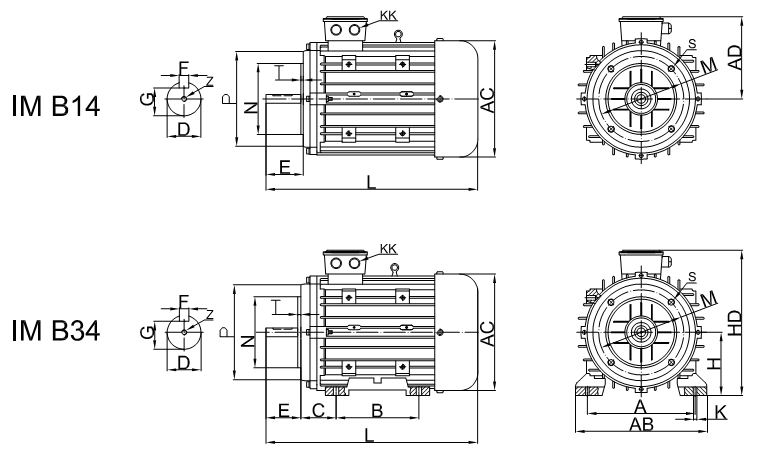

Mounting Type:B3,B5,B14,B35multi and pad mounting
Ambient Temperature : -20~+40 °C
Altitude: ≤1000M

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
