| Prod Model: |
2HMA160M-4-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Efficiency Class: |
Eff1 |
| Frame Size: |
H160 |
| Rated Power: |
18.5kw |
| Protection Class: |
IP44, IP54, IP55, IP56 |
| Frequency: |
50Hz, 60Hz |
| Rated Voltage: |
220/380V, 380/660V, 230/400 |
| Poles: |
4poles |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Casing Protection: |
Protection Type |
| Brand: |
Hongma |
Product Description

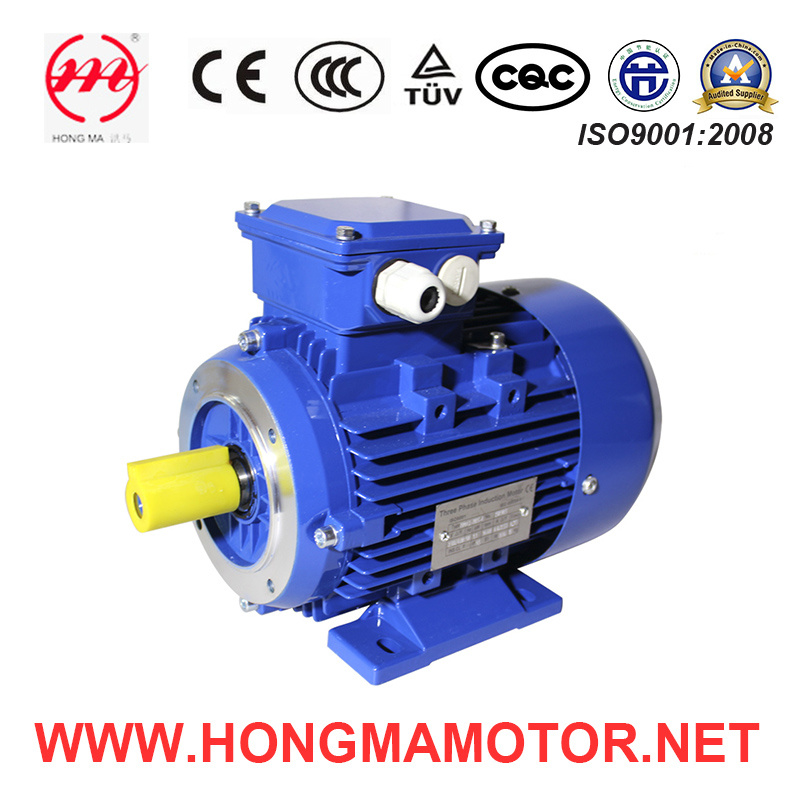

2HMA-IE2 (EFF1) Series High Efficiency Electric Motor
2HMA-IE2 (EFF1) Series Aluminum Housing Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.
HMA-IE2 (EFF1) Series Aluminum Housing Motor Characteristics and advantages:
Efficiency Class: IE2
Frame Size: H80-160
Poles: 2, 4, 6 poles
Rated Power: 0.75KW-18.5KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ, 60HZ
Protection Class: IP44, IP54, IP55, IP56
Insulation Class: B/F/H
Mounting Type: B3, B5, B14, B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M
| 2HMA-IE2 Series Technical Data |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | | Is/In | Weight |
| 380 | 400 | 415 |
| 2HMA-IE2 | 801-2 | 0.75 | 77.4 | 0.83 | 2875 | 1.8 | 1.7 | 1.6 | 2.5 | 3 | 5.3 | 10.5 |
| 2HMA-IE2 | 802-2 | 1.1 | 79.6 | 0.84 | 2888 | 2.5 | 2.4 | 2.3 | 3.2 | 3.8 | 7 | 11.2 |
| 2HMA-IE2 | 90S-2 | 1.5 | 81.3 | 0.84 | 2887 | 3.3 | 3.2 | 3.1 | 2.7 | 3.5 | 7.1 | 14.5 |
| 2HMA-IE2 | 90L-2 | 2.2 | 83.2 | 0.85 | 2889 | 4.7 | 4.5 | 4.3 | 2.4 | 3 | 6.9 | 16.8 |
| 2HMA-IE2 | 100L-2 | 3 | 84.6 | 0.87 | 2890 | 6.2 | 5.9 | 5.7 | 3.2 | 4 | 8 | 21.5 |
| 2HMA-IE2 | 112M-2 | 4 | 85.8 | 0.88 | 2901 | 8.0 | 7.6 | 7.4 | 2.5 | 3 | 7.5 | 27.5 |
| 2HMA-IE2 | 132S1-2 | 5.5 | 87 | 0.88 | 2915 | 10.9 | 10.4 | 10.0 | 2.7 | 3.5 | 7.5 | 41.5 |
| 2HMA-IE2 | 132S2-2 | 7.5 | 88.1 | 0.88 | 2915 | 14.7 | 14.0 | 13.5 | 2.4 | 3.3 | 7.5 | 47 |
| 2HMA-IE2 | 160M1-2 | 11 | 89.4 | 0.89 | 2930 | 21.0 | 20.0 | 19.2 | 2.2 | 2.9 | 7.6 | 72 |
| 2HMA-IE2 | 160M2-2 | 15 | 90.3 | 0.89 | 2940 | 28.4 | 26.9 | 26.0 | 2.3 | 3 | 7.6 | 83 |
| 2HMA-IE2 | 160L-2 | 18.5 | 90.9 | 0.90 | 2940 | 34.4 | 32.6 | 31.5 | 2.3 | 3.1 | 7.4 | 90 |
| 2HMA-IE2 | 802-4 | 0.75 | 79.6 | 0.76 | 1428 | 1.9 | 1.8 | 1.7 | 2.4 | 2.9 | 5 | 10.5 |
| 2HMA-IE2 | 90S-4 | 1.1 | 81.4 | 0.77 | 1431 | 2.7 | 2.5 | 2.4 | 3 | 3.5 | 6 | 15 |
| 2HMA-IE2 | 90L-4 | 1.5 | 82.8 | 0.79 | 1438 | 3.5 | 3.3 | 3.2 | 3.2 | 3.8 | 6.8 | 17.5 |
| 2HMA-IE2 | 100L1-4 | 2.2 | 84.3 | 0.81 | 1441 | 4.9 | 4.7 | 4.5 | 3 | 3.5 | 7 | 24 |
| 2HMA-IE2 | 100L2-4 | 3 | 85.5 | 0.82 | 1429 | 6.5 | 6.2 | 6.0 | 2.6 | 3.3 | 7 | 25 |
| 2HMA-IE2 | 112M-4 | 4 | 86.6 | 0.82 | 1444 | 8.6 | 8.1 | 7.8 | 3.5 | 4 | 7.5 | 32 |
| 2HMA-IE2 | 132S-4 | 5.5 | 87.7 | 0.83 | 1456 | 11.5 | 10.9 | 10.5 | 2.2 | 2.8 | 6.4 | 46 |
| 2HMA-IE2 | 132M-4 | 7.5 | 88.7 | 0.84 | 1455 | 15.3 | 14.5 | 14.0 | 2.4 | 3 | 7 | 54 |
| 2HMA-IE2 | 160M-4 | 11 | 89.8 | 0.84 | 1470 | 22.2 | 21.0 | 20.3 | 2.5 | 2.9 | 6.9 | 77 |
| 2HMA-IE2 | 160L-4 | 15 | 90.6 | 0.85 | 1470 | 29.6 | 28.1 | 27.1 | 2.5 | 3 | 7.5 | 90 |
| 2HMA-IE2 | 90S-6 | 0.75 | 75.9 | 0.72 | 944 | 3.4 | 2.0 | 1.9 | 2.2 | 2.4 | 4.5 | 13.5 |
| 2HMA-IE2 | 90L-6 | 1.1 | 78.1 | 0.73 | 928 | 4.7 | 2.8 | 2.7 | 2.4 | 2.6 | 4.5 | 18 |
| 2HMA-IE2 | 100L-6 | 1.5 | 79.8 | 0.75 | 939 | 6.2 | 3.6 | 3.5 | 1.8 | 2.2 | 4.2 | 22.5 |
| 2HMA-IE2 | 112M-6 | 2.2 | 81.8 | 0.76 | 936 | 8.7 | 5.1 | 4.9 | 2.3 | 2.8 | 4.5 | 27 |
| 2HMA-IE2 | 132S-6 | 3 | 83.3 | 0.76 | 960 | 11.7 | 6.8 | 6.6 | 1.8 | 2.4 | 4.5 | 38.5 |
| 2HMA-IE2 | 132M1-6 | 4 | 84.6 | 0.76 | 957 | 15.3 | 9.0 | 8.7 | 2.3 | 2.7 | 5 | 44.5 |
| 2HMA-IE2 | 132M2-6 | 5.5 | 86 | 0.77 | 962 | 20.5 | 12.0 | 11.6 | 1.9 | 2.8 | 5.5 | 52.5 |
| 2HMA-IE2 | 160M-6 | 7.5 | 87.2 | 0.77 | 975 | 27.5 | 16.1 | 15.5 | 2 | 3 | 6.5 | 77 |
| 2HMA-IE2 | 160L-6 | 11 | 88.7 | 0.78 | 975 | 39.3 | 22.9 | 22.1 | 2.4 | 3.3 | 7.5 | 90 |
2HMA-IE2 Series Mounting Dimensions-B3,B5,B35
TYPE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS |
| Eff Level | Frame size | A | B | C | D | E | F | G | H | K | Z | KK | P | M | N | S | T | AB | AC | AD | HD | L |
| 2HMA-IE2 | 56 | 90 | 71 | 36 | 9 | 20 | 3 | 7.2 | 56 | 5.8 | M4×12 | 1-M20×1.5 | 120 | 100 | 80 | 7 | 3 | 110 | 111 | 89 | 145 | 197 |
| 2HMA-IE2 | 63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | M4×12 | 1-M20×1.5 | 140 | 115 | 95 | 10 | 3 | 120 | 120 | 107 | 170 | 212 |
| 2HMA-IE2 | 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | M5×12 | 1-M20×1.5 | 160 | 130 | 110 | 10 | 3.5 | 132 | 133 | 114 | 185 | 240 |
| 2HMA-IE2 | 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | M6×16 | 1-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 152 | 153 | 122 | 202 | 290 |
| 2HMA-IE2 | 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 168 | 172 | 135 | 225 | 315 |
| 2HMA-IE2 | 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 168 | 172 | 135 | 225 | 340 |
| 2HMA-IE2 | 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | M10×22 | 2-M20×1.5 | 250 | 215 | 180 | 15 | 4 | 192 | 193 | 145 | 245 | 370 |
| 2HMA-IE2 | 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | M10×22 | 2-M25×1.5 | 250 | 215 | 180 | 15 | 4 | 222 | 223 | 165 | 277 | 395 |
| 2HMA-IE2 | 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | 15 | 4 | 248 | 255 | 187 | 319 | 470 |
| 2HMA-IE2 | 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | 15 | 4 | 248 | 255 | 187 | 319 | 500 |
| 2HMA-IE2 | 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M16×36 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 315 | 330 | 255 | 415 | 605 |
| 2HMA-IE2 | 160L | 254 | 1254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M16×36 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 315 | 330 | 255 | 415 | 680 |
