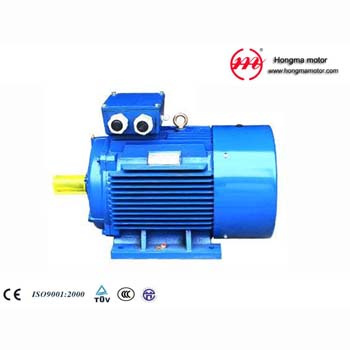

2HMI-Ie2 (EFF1) Series Cast Iron Housing High Efficiency Electric Motor
| Price: |
US $ 45-4600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
2HMI801-2-0.75-----------2HMI355L2-6-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Efficiency Class: |
Eff2 |
| Frame Size: |
H80-355 |
| Rated Power: |
0.75kw -315kw |
| Protection Class: |
IP44, IP54, IP55, IP56 |
| Frequency: |
50Hz, 60Hz |
| Rated Voltage: |
220/380V, 380/660V, 230/400 |
| Poles: |
2, 4, 6 Poles |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Casing Protection: |
Protection Type |
| Number Of Poles: |
2.4.6. |
| Brand: |
Hongma |
Product Description
2HMI-IE2 (EFF1) Series Cast Iron Housing High Efficiency Electric Motor 2HMI-IE2 (EFF1) Series Three Phase High Efficiency Electric Motor is the basic series of general-purpose motor with low voltage upgraded of IE1 series motor. 2HMI-IE2(EFF1) Series Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard. 2HMI-IE2 (EFF1) Series Cast Iron Housing Motor Characteristics and advantages:Efficiency Class:IE2Frame Size: H80-355Poles: 2, 4, 6polesRated Power: 0.75KW -315KWRated Voltage: 220/380V, 380/660V, 230/400V, 400V/690VFrequency: 50HZ, 60HZProtection Class: IP44, IP54, IP55, IP56Insulation Class: B, F, HMounting Type:B3, B5, B35multi and pad mountingAmbient Temperature: -20~+40 °CAltitude: ≤1000M| 2HMI-IE2 Series Technical Data |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | Tmax/Tn | Is/In | Weight
(C.I) |
| 380 | 400 | 415 |
| 2HMI-IE2 | 801-2 | 0.75 | 77.4 | 0.83 | 2875 | 1.8 | 1.7 | 1.6 | 2.5 | 3 | 5.3 | 18 |
| 2HMI-IE2 | 802-2 | 1.1 | 79.6 | 0.84 | 2888 | 2.5 | 2.4 | 2.3 | 3.2 | 3.8 | 7 | 19 |
| 2HMI-IE2 | 90S-2 | 1.5 | 81.3 | 0.84 | 2887 | 3.3 | 3.2 | 3.1 | 2.7 | 3.5 | 7.1 | 25 |
| 2HMI-IE2 | 90L-2 | 2.2 | 83.2 | 0.85 | 2889 | 4.7 | 4.5 | 4.3 | 2.4 | 3 | 6.9 | 28 |
| 2HMI-IE2 | 100L-2 | 3 | 84.6 | 0.87 | 2890 | 6.2 | 5.9 | 5.7 | 3.2 | 4 | 8 | 34 |
| 2HMI-IE2 | 112M-2 | 4 | 85.8 | 0.88 | 2901 | 8.0 | 7.6 | 7.4 | 2.5 | 3 | 7.5 | 45 |
| 2HMI-IE2 | 132S1-2 | 5.5 | 87 | 0.88 | 2915 | 10.9 | 10.4 | 10.0 | 2.7 | 3.5 | 7.5 | 67 |
| 2HMI-IE2 | 132S2-2 | 7.5 | 88.1 | 0.88 | 2915 | 14.7 | 14.0 | 13.5 | 2.4 | 3.3 | 7.5 | 73 |
| 2HMI-IE2 | 160M1-2 | 11 | 89.4 | 0.89 | 2930 | 21.0 | 20.0 | 19.2 | 2.2 | 2.9 | 7.6 | 123 |
| 2HMI-IE2 | 160M2-2 | 15 | 90.3 | 0.89 | 2940 | 28.4 | 26.9 | 26.0 | 2.3 | 3 | 7.6 | 127 |
| 2HMI-IE2 | 160L-2 | 18.5 | 90.9 | 0.90 | 2940 | 34.4 | 32.6 | 31.5 | 2.3 | 3.1 | 7.4 | 158 |
| 2HMI-IE2 | 180M-2 | 22 | 91.3 | 0.90 | 2945 | 40.7 | 38.6 | 37.2 | 2.8 | 3 | 8.2 | 190 |
| 2HMI-IE2 | 200L1-2 | 30 | 92 | 0.90 | 2950 | 55.1 | 52.3 | 50.4 | 2.6 | 3 | 7.8 | 256 |
| 2HMI-IE2 | 200L2-2 | 37 | 92.5 | 0.90 | 2955 | 67.5 | 64.2 | 61.8 | 2.6 | 3 | 7.7 | 265 |
| 2HMI-IE2 | 225M-2 | 45 | 92.9 | 0.90 | 2975 | 81.8 | 77.7 | 74.9 | 2.4 | 2.6 | 7.5 | 332 |
| 2HMI-IE2 | 250M-2 | 55 | 93.2 | 0.90 | 2975 | 99.6 | 94.6 | 91.2 | 2.3 | 2.8 | 7.1 | 423 |
| 2HMI-IE2 | 280S-2 | 75 | 93.8 | 0.90 | 2985 | 135.0 | 128.2 | 123.6 | 2.5 | 2.8 | 7.4 | 592 |
| 2HMI-IE2 | 280M-2 | 90 | 94.1 | 0.91 | 2972 | 159.7 | 151.7 | 146.2 | 2.8 | 2.8 | 7.6 | 690 |
| 2HMI-IE2 | 315S-2 | 110 | 94.3 | 0.91 | 2982 | 194.8 | 185.0 | 178.3 | 2.4 | 2.9 | 6.9 | 1110 |
| 2HMI-IE2 | 315M-2 | 132 | 94.6 | 0.91 | 2982 | 233.0 | 221.3 | 213.3 | 2.6 | 2.9 | 7.1 | 1222 |
| 2HMI-IE2 | 315L1-2 | 160 | 94.8 | 0.92 | 2979 | 278.7 | 264.8 | 255.2 | 2.5 | 2.8 | 7.1 | 1230 |
| 2HMI-IE2 | 315L2-2 | 200 | 95 | 0.92 | 2979 | 347.7 | 330.3 | 318.4 | 2.5 | 2.8 | 6.9 | 1270 |
| 2HMI-IE2 | 355M-2 | 250 | 95.0 | 0.92 | 2979 | 434.6 | 412.9 | 398.0 | 2.5 | 2.8 | 7 | 1800 |
| 2HMI-IE2 | 355L-2 | 315 | 95.0 | 0.92 | 2979 | 547.6 | 520.2 | 501.4 | 2.5 | 2.9 | 6.9 | 1900 |
| 2HMI-IE2 | 802-4 | 0.75 | 79.6 | 0.76 | 1428 | 1.9 | 1.8 | 1.7 | 2.4 | 2.9 | 5 | 18 |
| 2HMI-IE2 | 90S-4 | 1.1 | 81.4 | 0.77 | 1431 | 2.7 | 2.5 | 2.4 | 3 | 3.5 | 6 | 25 |
| 2HMI-IE2 | 90L-4 | 1.5 | 82.8 | 0.79 | 1438 | 3.5 | 3.3 | 3.2 | 3.2 | 3.8 | 6.8 | 31 |
| 2HMI-IE2 | 100L1-4 | 2.2 | 84.3 | 0.81 | 1441 | 4.9 | 4.7 | 4.5 | 3 | 3.5 | 7 | 37 |
| 2HMI-IE2 | 100L2-4 | 3 | 85.5 | 0.82 | 1429 | 6.5 | 6.2 | 6.0 | 2.6 | 3.3 | 7 | 40 |
| 2HMI-IE2 | 112M-4 | 4 | 86.6 | 0.82 | 1444 | 8.6 | 8.1 | 7.8 | 3.5 | 4 | 7.5 | 46 |
| 2HMI-IE2 | 132S-4 | 5.5 | 87.7 | 0.83 | 1456 | 11.5 | 10.9 | 10.5 | 2.2 | 2.8 | 6.4 | 73 |
| 2HMI-IE2 | 132M-4 | 7.5 | 88.7 | 0.84 | 1455 | 15.3 | 14.5 | 14.0 | 2.4 | 3 | 7 | 88 |
| 2HMI-IE2 | 160M-4 | 11 | 89.8 | 0.84 | 1470 | 22.2 | 21.0 | 20.3 | 2.5 | 2.9 | 6.9 | 134 |
| 2HMI-IE2 | 160L-4 | 15 | 90.6 | 0.85 | 1470 | 29.6 | 28.1 | 27.1 | 2.5 | 3 | 7.5 | 153 |
| 2HMI-IE2 | 180M-4 | 18.5 | 91.2 | 0.86 | 1475 | 35.8 | 34.0 | 32.8 | 2.6 | 3.1 | 7.8 | 194 |
| 2HMI-IE2 | 180L-4 | 22 | 91.6 | 0.86 | 1475 | 42.4 | 40.3 | 38.9 | 2.6 | 3.1 | 7.5 | 198 |
| 2HMI-IE2 | 200L-4 | 30 | 92.3 | 0.86 | 1480 | 57.4 | 54.6 | 52.6 | 2.4 | 2.9 | 7.1 | 293 |
| 2HMI-IE2 | 225S-4 | 37 | 92.7 | 0.87 | 1485 | 69.7 | 66.2 | 63.8 | 2.5 | 2.7 | 7.5 | 298 |
| 2HMI-IE2 | 225M-4 | 45 | 93.1 | 0.87 | 1485 | 84.4 | 80.2 | 77.3 | 2.5 | 2.8 | 7.6 | 335 |
| 2HMI-IE2 | 250M-4 | 55 | 93.5 | 0.87 | 1480 | 102.7 | 97.6 | 94.1 | 2.6 | 2.7 | 7.3 | 462 |
| 2HMI-IE2 | 280S-4 | 75 | 94 | 0.87 | 1485 | 139.3 | 132.4 | 127.6 | 2.7 | 2.7 | 7.6 | 582 |
| 2HMI-IE2 | 280M-4 | 90 | 94.2 | 0.87 | 1489 | 166.9 | 158.5 | 152.8 | 2.7 | 2.7 | 7.5 | 717 |
| 2HMI-IE2 | 315S-4 | 110 | 94.5 | 0.88 | 1492 | 201.0 | 190.9 | 184.0 | 2.7 | 2.9 | 7.1 | 1128 |
| 2HMI-IE2 | 315M-4 | 132 | 94.7 | 0.88 | 1486 | 240.7 | 228.6 | 220.4 | 2.7 | 2.9 | 7.3 | 1201 |
| 2HMI-IE2 | 315L1-4 | 160 | 94.9 | 0.89 | 1486 | 287.8 | 273.4 | 263.6 | 3 | 3 | 7.4 | 1210 |
| 2HMI-IE2 | 315L2-4 | 200 | 95.1 | 0.89 | 1487 | 359.0 | 341.1 | 328.7 | 3 | 3 | 7.6 | 1368 |
| 2HMI-IE2 | 355M-4 | 250 | 95.1 | 0.90 | 1485 | 443.8 | 421.6 | 406.4 | 2.8 | 2.9 | 7.5 | 1740 |
| 2HMI-IE2 | 355L-4 | 315 | 95.1 | 0.90 | 1490 | 559.2 | 531.2 | 512.0 | 2.6 | 2.8 | 7.4 | 1800 |
| 2HMI-IE2 Series Tech Data |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | Tmax/Tn | Is/In | Weight
(C.I) |
| 380 | 400 | 415 |
| 2HMI-IE2 | 90S-6 | 0.75 | 75.9 | 0.72 | 944 | 3.4 | 2.0 | 1.9 | 2.2 | 2.4 | 4.5 | 24 |
| 2HMI-IE2 | 90L-6 | 1.1 | 78.1 | 0.73 | 928 | 4.7 | 2.8 | 2.7 | 2.4 | 2.6 | 4.5 | 29 |
| 2HMI-IE2 | 100L-6 | 1.5 | 79.8 | 0.75 | 939 | 6.2 | 3.6 | 3.5 | 1.8 | 2.2 | 4.2 | 33 |
| 2HMI-IE2 | 112M-6 | 2.2 | 81.8 | 0.76 | 936 | 8.7 | 5.1 | 4.9 | 2.3 | 2.8 | 4.5 | 45 |
| 2HMI-IE2 | 132S-6 | 3 | 83.3 | 0.76 | 960 | 11.7 | 6.8 | 6.6 | 1.8 | 2.4 | 4.5 | 63 |
| 2HMI-IE2 | 132M1-6 | 4 | 84.6 | 0.76 | 957 | 15.3 | 9.0 | 8.7 | 2.3 | 2.7 | 5 | 75 |
| 2HMI-IE2 | 132M2-6 | 5.5 | 86 | 0.77 | 962 | 20.5 | 12.0 | 11.6 | 1.9 | 2.8 | 5.5 | 86 |
| 2HMI-IE2 | 160M-6 | 7.5 | 87.2 | 0.77 | 975 | 27.5 | 16.1 | 15.5 | 2 | 3 | 6.5 | 128 |
| 2HMI-IE2 | 160L-6 | 11 | 88.7 | 0.78 | 975 | 39.3 | 22.9 | 22.1 | 2.4 | 3.3 | 7.5 | 159 |
| 2HMI-IE2 | 180L-6 | 15 | 89.7 | 0.81 | 975 | 51.1 | 29.8 | 28.7 | 2 | 2.7 | 6.4 | 209 |
| 2HMI-IE2 | 200L1-6 | 18.5 | 90.4 | 0.81 | 985 | 62.7 | 36.5 | 35.1 | 2.3 | 3 | 7 | 222 |
| 2HMI-IE2 | 200L2-6 | 22 | 90.9 | 0.83 | 980 | 72.3 | 42.1 | 40.6 | 2.3 | 2.8 | 7 | 267 |
| 2HMI-IE2 | 225M-6 | 30 | 91.7 | 0.84 | 985 | 96.9 | 56.2 | 54.2 | 2.2 | 2.7 | 6.5 | 282 |
| 2HMI-IE2 | 250M-6 | 37 | 92.2 | 0.86 | 985 | 116.1 | 67.4 | 64.9 | 2.5 | 2.7 | 6.9 | 443 |
| 2HMI-IE2 | 280S-6 | 45 | 92.7 | 0.86 | 990 | 140.5 | 81.5 | 78.5 | 2.2 | 2.4 | 7 | 566 |
| 2HMI-IE2 | 280M-6 | 55 | 93.1 | 0.86 | 994 | 171.2 | 99.2 | 95.6 | 2.4 | 2.5 | 7.1 | 631 |
| 2HMI-IE2 | 315S-6 | 75 | 93.7 | 0.86 | 992 | 232.4 | 134.3 | 129.5 | 2.8 | 3 | 7.3 | 1140 |
| 2HMI-IE2 | 315M-6 | 90 | 94 | 0.86 | 991 | 278.0 | 160.7 | 154.9 | 2.7 | 2.9 | 7.1 | 1207 |
| 2HMI-IE2 | 315L1-6 | 110 | 94.3 | 0.86 | 991 | 338.0 | 195.8 | 188.7 | 2.9 | 2.9 | 7.4 | 1234 |
| 2HMI-IE2 | 315L2-6 | 132 | 94.6 | 0.87 | 990 | 400.9 | 231.5 | 223.1 | 3 | 3.1 | 7.6 | 1320 |
| 2HMI-IE2 | 355M1-6 | 160 | 94.8 | 0.88 | 990 | 480.4 | 276.8 | 266.8 | 3.1 | 3.1 | 7.6 | 1550 |
| 2HMI-IE2 | 355M3-6 | 200 | 95 | 0.88 | 991 | 600.5 | 345.3 | 332.8 | 3 | 3 | 7.8 | 1700 |
| 2HMI-IE2 | 355L2-6 | 250 | 95.0 | 0.88 | 992 | 750.7 | 431.6 | 416.0 | 3.1 | 3 | 7.7 | 1900 |
2HMI-IE2 Series Outline Dimensions
| TYPE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS |
| eff Level | Frame | A | B | C | D | E | F | G | H | K | Z | KK | P | M | N | S | T | AB | AC | AD | HD | L |
| 2HMI-IE2 | 80M | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | M6×16 | 1-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 152 | 153 | 122 | 202 | 290 |
| 2HMI-IE2 | 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 168 | 172 | 135 | 225 | 315 |
| 2HMI-IE2 | 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 168 | 172 | 135 | 225 | 340 |
| 2HMI-IE2 | 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | M10×22 | 2-M20×1.5 | 250 | 215 | 180 | 15 | 4 | 192 | 193 | 145 | 245 | 370 |
| 2HMI-IE2 | 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | M10×22 | 2-M25×1.5 | 250 | 215 | 180 | 15 | 4 | 222 | 223 | 165 | 277 | 395 |
| 2HMI-IE2 | 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | 15 | 4 | 248 | 265 | 208 | 340 | 470 |
| 2HMI-IE2 | 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | 15 | 4 | 248 | 265 | 208 | 340 | 500 |
| 2HMI-IE2 | 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 315 | 330 | 260 | 420 | 605 |
| 2HMI-IE2 | 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 315 | 330 | 260 | 420 | 680 |
| 2HMI-IE2 | 180M | 279 | 241 | 121 | 48 | 110 | 14 | 42.5 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 350 | 352 | 285 | 445 | 694 |
| 2HMI-IE2 | 180L | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 350 | 352 | 285 | 445 | 732 |
| 2HMI-IE2 | 200L | 318 | 305 | 133 | 55 | 110 | 16 | 49 | 200 | 19 | M20×42 | 2-M50×1.5 | 400 | 350 | 300 | 19 | 5 | 390 | 394 | 315 | 515 | 774 |
| 2HMI-IE2 | 225S(4-8P) | 356 | 286 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | M20×42 | 2-M50×1.5 | 450 | 400 | 350 | 19 | 5 | 435 | 442 | 335 | 560 | 820 |
| 2HMI-IE2 | 225M(2P) | 356 | 311 | 149 | 55 | 110 | 16 | 49 | 225 | 19 | M20×42 | 2-M50×1.5 | 450 | 400 | 350 | 19 | 5 | 435 | 442 | 335 | 560 | 813 |
| 2HMI-IE2 | 225M(4-8P) | 356 | 311 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | M20×42 | 2-M50×1.5 | 450 | 400 | 350 | 19 | 5 | 435 | 442 | 335 | 560 | 873 |
| 2HMI-IE2 | 250M(2P) | 406 | 349 | 168 | 60 | 140 | 18 | 53 | 250 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 490 | 481 | 375 | 625 | 922 |
| 2HMI-IE2 | 250M(4-8P) | 406 | 349 | 168 | 65 | 140 | 18 | 58 | 250 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 490 | 481 | 375 | 625 | 922 |
| 2HMI-IE2 | 280S(2P) | 457 | 368 | 190 | 65 | 140 | 18 | 58 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 991 |
| 2HMI-IE2 | 280M(2P) | 457 | 419 | 190 | 65 | 140 | 18 | 58 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 1040 |
| 2HMI-IE2 | 280S(4-8P) | 457 | 368 | 190 | 75 | 140 | 20 | 67.5 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 991 |
| 2HMI-IE2 | 280M(4-8P) | 457 | 419 | 190 | 75 | 140 | 20 | 67.5 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 1040 |
| 2HMI-IE2 | 315S(2P) | 508 | 406 | 216 | 65 | 140 | 18 | 58 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1160 |
| 2HMI-IE2 | 315M(2P) | 508 | 457 | 216 | 65 | 140 | 18 | 58 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1270 |
| 2HMI-IE2 | 315L(2P) | 508 | 508 | 216 | 65 | 140 | 18 | 58 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1270 |
| 2HMI-IE2 | 315S(4-10P) | 508 | 406 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1190 |
| 2HMI-IE2 | 315M(4-10P) | 508 | 457 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1300 |
| 2HMI-IE2 | 315L(4-10P) | 508 | 508 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1300 |
| 2HMI-IE2 | 355M(2P) | 610 | 560 | 254 | 75 | 140 | 20 | 67.5 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1500 |
| 2HMI-IE2 | 355L(2P) | 610 | 630 | 254 | 75 | 140 | 20 | 67.5 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1500 |
| 2HMI-IE2 | 355M(4-10P) | 610 | 560 | 254 | 95 | 170 | 25 | 86 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1530 |
| 2HMI-IE2 | 355L(4-10P) | 610 | 630 | 254 | 95 | 170 | 25 | 86 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1530 |
