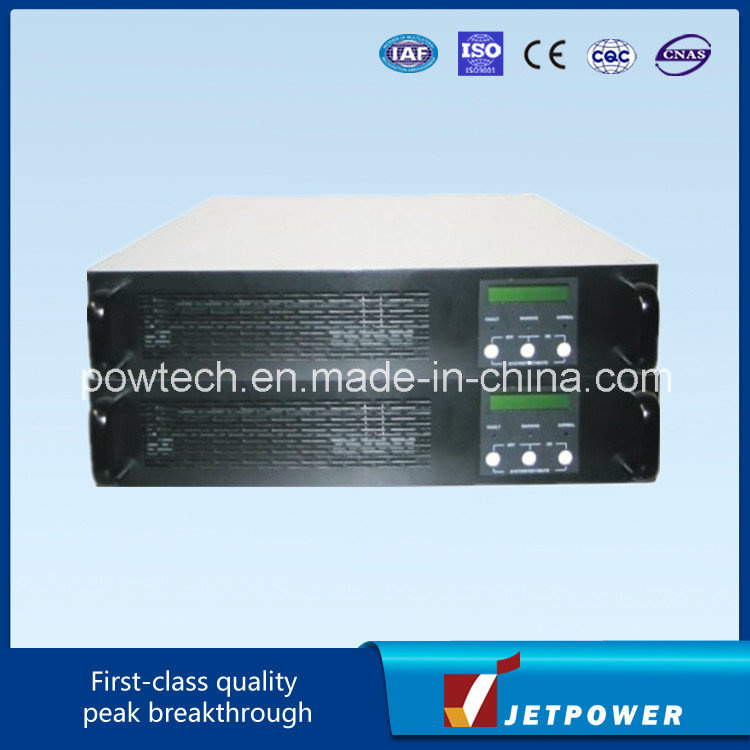

2kVA Online UPS Power Supply (SGS, CE, ISO certified)
| Price: |
US $ 120/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PPR-2K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mount: |
19" Rack Mount |
| High: |
2u |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
| Brand: |
Jetpower |
Product Description
19" Rack, Online UPS power
Capacity: 2KVA/1400W
Input voltage: 220VAC +/-25%, 50/60Hz
Ouput voltage: 220VAC, 50/60Hz
Sizes: 19"/2U
UPS Features:
1. High performance system
(1)Online double conversion
(2)True sine wave output
(3)Microprocessor control
(4)Internet ready-phone/fax/modem/DSL data line surge suppression
2. Comprehensive protection
(1)Lightning and surge protection
(2)EMI/RFI filter protection
(3)Input Over voltage protection
(4)Output short circuit and overload protection
3. User friendly operation
(1)LED and LCD display
(2)System self-diagnostics
(3)19"/2U~3U rack mount
4. Remote Operation
(1)RS-232 interface
(2)Power management software (UPSilon 2000 CD included)
(3)Support Microsoft win98/2000/NT/XP, Linux and more
5. Optional function
(1)Scalable runtime with external battery bank
(2)Smart SNMP card slot
| Model | 1KVA | 1KVA(L) | 2KVA | 2KVA(L) | 3KVA | 3KVA(L) | 6KVA | 6KVA(L) |
| Capacity | 0.7KW | 1.4KW | 2.1KW | 4.2KW |
| Input | Voltage | 220/230/240AC |
| Frequency | 46 H z ~ 54H z/56H z~ 64H z |
| Power Factor | >=0.95 | >=0.98 |
| Output | Voltage | 220/230/240VAC (re-settable via LCD panel) |
| Frequency | 50/60x(1 ± 0.2% )H z(battery m ode) | 50/60* (1 ±0.1%)Hz |
| Transient Response | +/-3%(100% load change) |
| Waveform | True sine wave |
| Distortion | THD<3% at 0~100 linear load |
| Crest Ratio | 3:1 |
| Battery | Voltage | 36VDC | 96VDC | 240VDC |
| Capacity | 7Ah /12V *3pcs | External batt. | 7Ah/12V
*8pcs | External batt. | 7Ah/12V *8pcs | External batt. | 7Ah/12V
*20pcs | External batt. |
Bypass
| Automatic Transfer | Overload and UPS failure |
| Transfer by Setting | Voltage Range:176V(+/-20V)~253V(+/-20V) (re-settable via LCD panel) |
| Transfer Time | 0 ms |
| Audible Alarm | Battery Mode | Buzz every 4 seconds when battery mode;
Buzz once per second when battery low |
| Overload | Buzz twice per second when load>110% |
| Fault | Buzz continuously |
| Indicator | LCD | Input/output voltage, frequency, power |
| LED | Normal (green), Warning (yellow), Fault (red) |
| Communication | RS-232 | Power monitoring software (Upsilon 2000) |
| SNMP slot (Optional) | SNMP manager and Web browser |
| Surge Protection | RJ11 I/O port available for 10 base –T network or Fax / Modem |
| Ambient | Temperature | 0°C~40°C ; 32°F~104 °C |
| Relative Humidity | 0-95% non-condensing |
| Acoustic Noise | <45 dB (at 1m) | <50dB (at 1m) |
| Physical | Net weight (kg) | 16.3 | 9.1 | 10.3 | 11.5 | 11.2 | 12.3 | 18.3 |
| Dimension (L*D*H, mm) | 482.5*450*88
(19"/2U) | 482.5*600*130
(19"/3U) |
