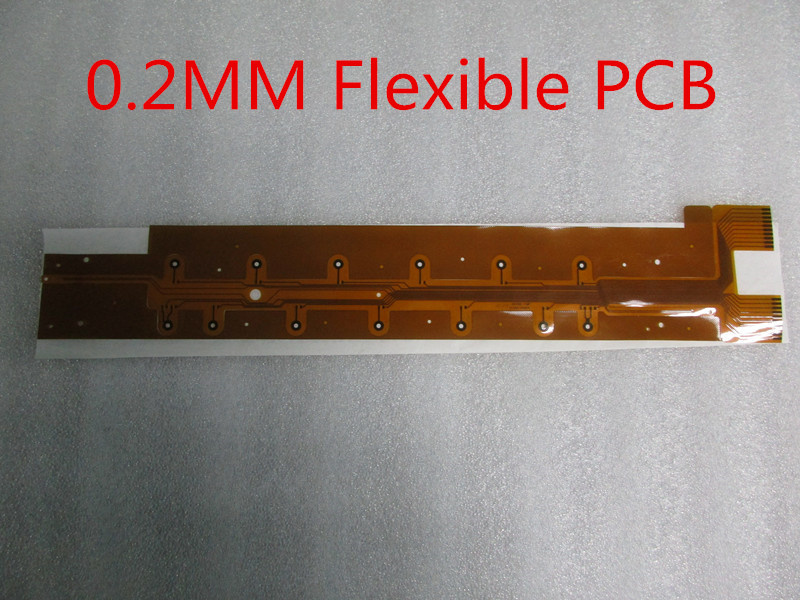

0.2mm Thickness Double Sided Flexible Printed Circuit Board

Name: 0.2mm Thickness Double Sided Flexible Printed Circuit Board
Brand: all-electronics-online.com
SKU: 783677425
Availability: InStock
Rating: 4.6 (69 reviews)

Price:	US $ 0.08-0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UC007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Film Color:	Yellow
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Computer with LCD Screen
Conductive Adhesive:	Conductive Silver Paste
Base Material:	Polymide
Brand:	Uc

Product Description

Ucreate is specialized in low to medium volume high quality PCB population with UL&ISO&RoHs certificate approved.

Our Specialities:
1. No MOQ
2. Quick Lead time
3. High standard pcb depends on IPC Class II or IPC Class III if required
4. 100% E-tested guarantee before shipping
5. RoHS, UL, ISO, SGS certificate approved

Our capabilities:

Max panel size: 32" x 32"(800mm x 800mm)
Min trace width/ space (inner layer) :4mil/4mil(0.1mm/0.1mm)
Min thickness(inner layer) :4 mil(0.1mm) without copper
Inner copper thickness: 0.5~4 oz
Outer copper thickness:0.5~6 oz
Finished board thickness: 0.4-3.2 mm
Board thickness tolerance control:(±0.10 mm) ±0.1 mm 1~4 L
Finished board thicknes:±10% or ±10% ≥6 L
Inner layer treatment: Brown oxidation
Layer count Capability: 1-24 LAYER
Alignment between ML: ±2mil
Min drilling: 0.15 mm
Min finished hole: 0.1 mm
Hole precision: ±2 mil(±50 um)
Tolerance for Slot :±3 mil(±75 um)
Tolerance for PTH: ±3 mil(±75um)
Tolerance for NPTH: ±2mil(±50um)
Max Aspect Ratio for PTH: 8:1
Hole wall copper thickness: 15-50um

Established in 2004, Ucreate PCB Co., Ltd is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.

Along with more than 10 years' development, Ucreate has settled its factories both in Shenzhen and Huizhou city, covering facility area 12000 Square meters, with more than 800 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field. Now we are reaching a monthly capability of 30000 Square meters.

Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, Aeronautics and Astronautics high technology field and spread over America, Europe and some Asia Districts, achieving their satisfication.

Ucreate has been certificated with ISO9001, ISO14001, UL from US and Canada, all of our products are with RoHS certification.

Under the mission " high quality, exact delivery, customers' satisfactions, continuous development, Common innovation ", We believe Ucreate will develop better and better with your participation.
