| Prod Model: |
CAMH-125 |
| Rated Current In: |
63,80,100,125 |
| Rated Voltage Ue: |
240/415V |
| Insulation Voltage Ui: |
500V |
| Rated Breaking Capacity: |
6000A |
| Rated Frequency: |
50/60Hz |
| Mechancial Life: |
10,000 |
| Energy Limitiing Class: |
3 |
| Export Market: |
Global |
| Pollution Degree: |
2 |
| Electrical Life: |
4,000 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
CCC |
| Poles Number: |
1p/2p/3p/4p |
Product Description

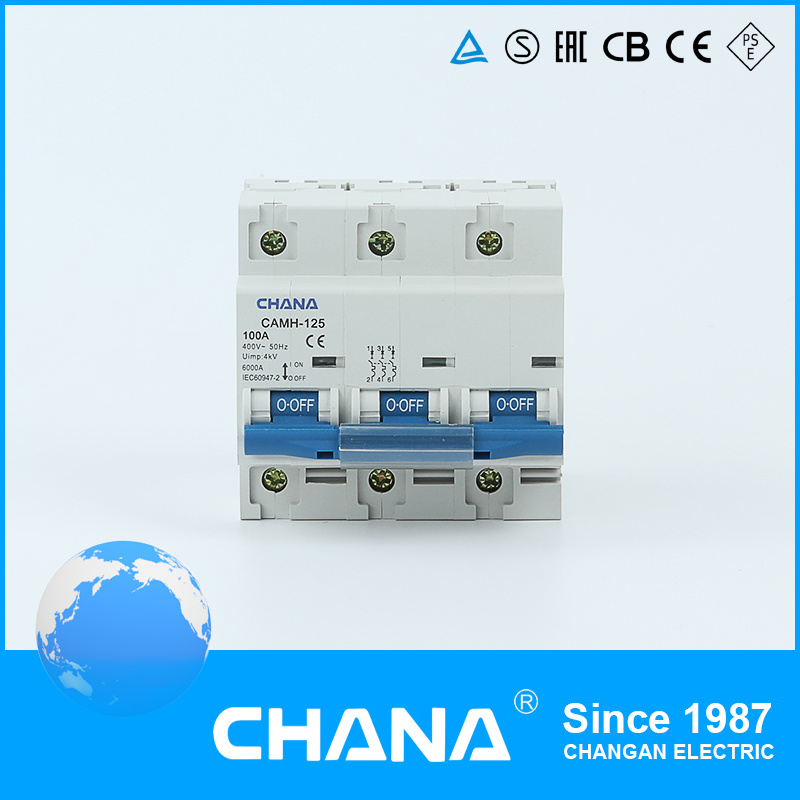

CAMH-125 MCB Mini Circuit Breaker
1. Specification
| Standard | IEC60947-2 |
| Electrical Feature |
| Rated current In | A | 63, 80, 100, 125 |
| Poles | P | 1,2,3,4 |
| Rated voltage Ue | V | 240/415 |
| Insulation voltage Ui | V | 500 |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 6000 |
| Energy limiting class | | 3 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 4000 |
| Dielectric test voltage at ind. Freq. For 1 min | V | 2000 |
| Pollution degree | | 2 |
| Thermo-magnetic release characteristic | | C,D |
| Mechanical Feature |
| Electrical life | | 4000 |
| Mechanical life | | 10000 |
| Contact position indicator | | Yes |
| Protection degree | | IP20 |
| Reference temperature for setting of thermal element | º C | 30 |
| Ambient temperature (with daily average≤ 35º C) | º C | -5...+40 |
| Storage temperation | º C | -25...+70 |
| Installation |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.0 N*m 22 In-Ibs |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
| Conbination with Accessory |
| Combination with accessories | Auxiliary contact, Shunt release, Under voltage release, Alarm contact |
2. Dimension
How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable
Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
3. Certificate

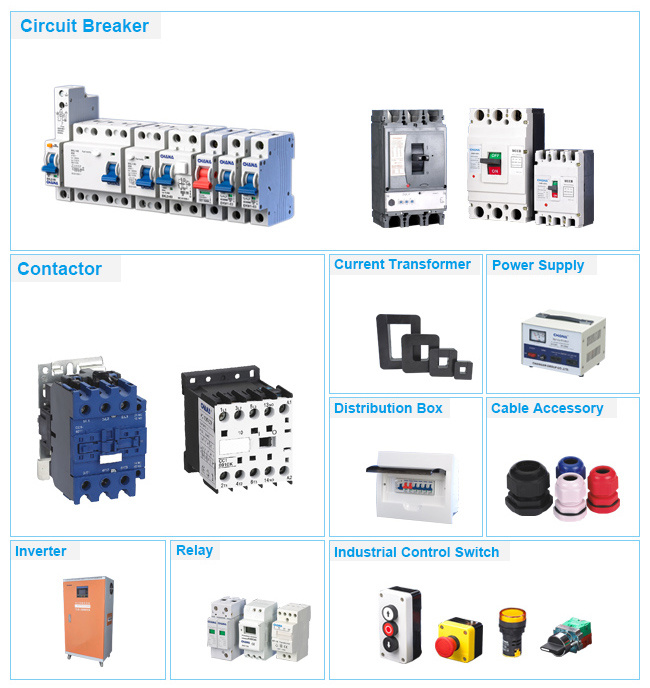

4. Feature Product
5. Company Profile
Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
