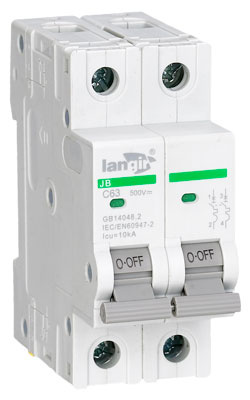

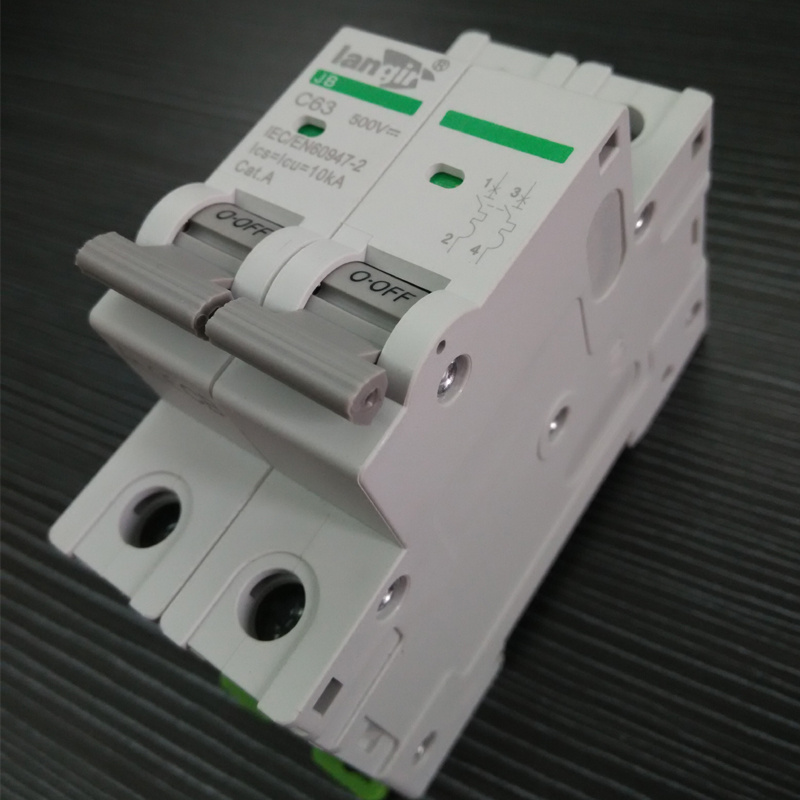

2p DC Miniature Circuit Breaker Non Polarized DC Breaker with TUV Certificates From 1A to 63A

Name: 2p DC Miniature Circuit Breaker Non Polarized DC Breaker with TUV Certificates From 1A to 63A
Brand: all-electronics-online.com
SKU: 800107815
Availability: InStock
Rating: 4.5 (55 reviews)

Price:	US $ 12/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JB 2P
Mini Circuit Breaker Rated Voltage:	500VDC
Mini Circuit Breaker Rated Current:	1,2,3,4,6,10,16,20,25,32,40,50,63A
Mini Circuit Breaker Brand:	Langir
Mini Circuit Breaker Is Customed:	Yes
Certificate:	TUV
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	TUV

Product Description

The JB is a DC circuit breaker dedicated to multi string photovoltaic installations.

Storage -40 to 85 degree

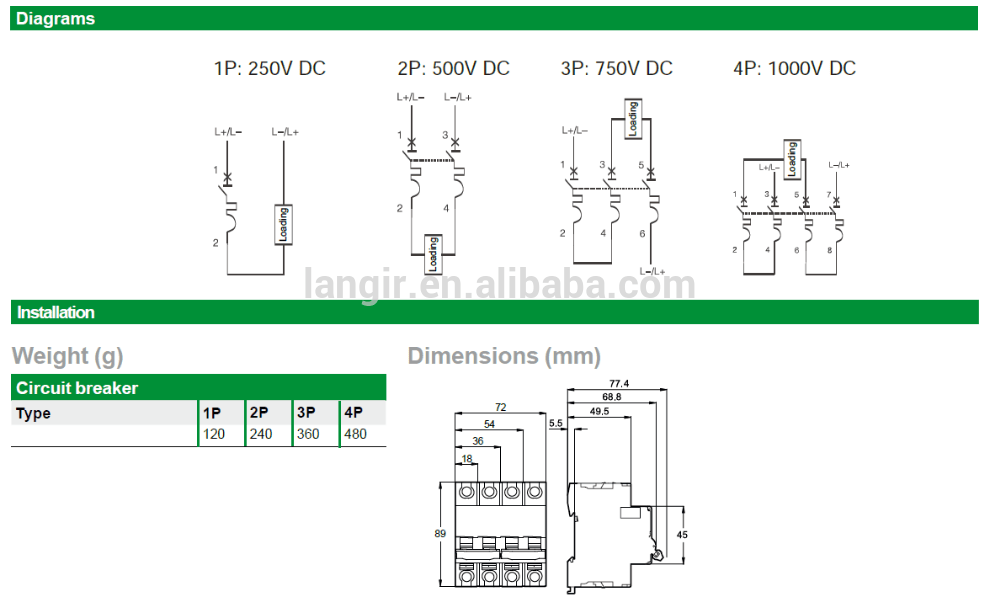

- This circuit breaker is designed to protect the cables located between each string of photovoltaic modules and the photovoltaic inverter against overloads and short circuits (see application diagram).
- Combined with a switch , the JB will be installed in a string PV protection enclosure at the end of each string of photovoltaic modules.
- It can be locked (by a padlocking device) in OFF position as a safety measure for removal of the PV inverter.
- Since a fault current can flow in the reverse direction to the operating current, the JB can detect and protect against any bidirectional current.
- To ensure the safety of the installation, it is necessary, depending on the various types of application, to combine the JB with:
a residual current device at the AC end
a fault passage detector (insulation monitoring device) at the DC end
an earth protection circuit breaker at the DC end
- In all cases, fast action on site will be required to clear the fault (protection not ensured in the event of a double fault).
- JB is not polarity sensitive: (+) and (-) wires can inversed without any risk.
- The JB is: delivered with three inter-pole barrier to provide increased isolation distance between two adjacent connectors

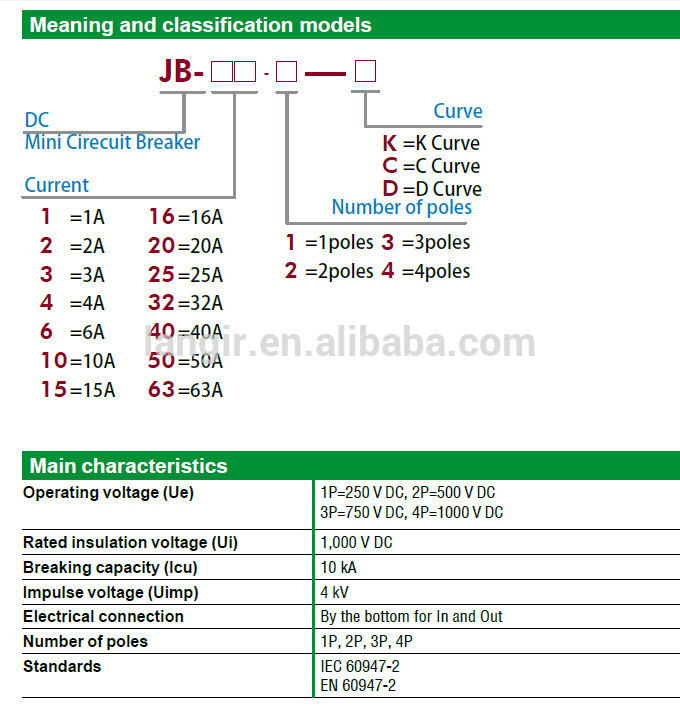

Main characteristics

Operating Voltage (Ue)	1P=250 V DC, 2P=500 V DC 3P=750 V DC, 4P=1000 V DC
Rated insulation voltage (Ui)	1,000 VDC
Breaking capacity (Icu)	10 kA
Impulse voltage (Uimp)	4 kA
Electrical connection	By the bottom for In and Out
Number of poles	1P, 2P, 3P, 4P
Standards	IEC 60947-2 EN 60947-2

Rated service breaking capacity (Ics)		100% of the Icu
Endurance (O-C)	Electrical	1,500 cycles (where L/R=2 ms)
	Mechanical	20, 000 cycles

Mechanical		20, 000 cycles
Degree of pollution		2
Category		A (no delay in accordance with IEC / EN 60947-2 standards)
Degree of protection (IEC 60529)		IP40
Tropicalisation		Relative humidity: 95% at 55 degree in accordance with IEC 60068-2 and GB 14048.2 standards
Temperature	Operating	-25 to 70 degree
	Storage	-40 to 85 degree
