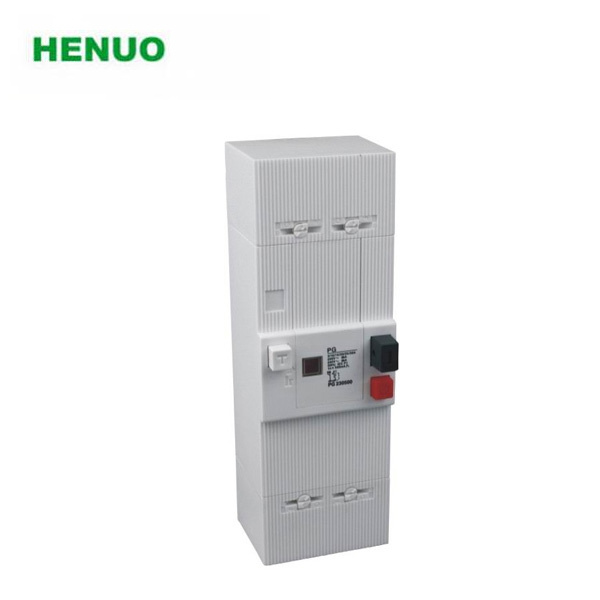

2p Gardy Earth Leakage Circuit Breaker (PG/JVM8)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
PG/JVM8 |
| Markets: |
Africa |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Certification: |
CB |
Product Description
Specification:
PG series adjustable residual current breaker(gardy RCCB, gardy ELCB)is suitable for AC 50/60Hz, 230/400V circuit, prevents from overloading, short-circuit etc. On the occasion of shock hazard or earth leakage, it will trip immediately. At the same time, the rated current of overload protection can be adjustable.
Technical Specifications
Type
PG230
PG430
Poles
2P
4P
Rated Voltage (V)
250V/440V
Rated Current (A)
10, 15, 20, 25, 30, 45, 50, 60A Adjustable
Leakage Motion Current (mA)
300mA, 500mA
300mA, 500mA
Leakage Dead Current (mA)
150mA, 250mA
150mA, 250mA
According with Standard
NFC61450
Specifications
gardy circuit breaker
1.high breaking capacity
2.Modern, innovative breaker design
3.CB, CE
PG Earth Leakage Circuit Breakers/gardy circuit breaker
PG Earth Leakage Circuit Breakers/gardy circuit breaker :
Rated Voltage (V)
250V/440V
Rated Current (A)
10,15,20,25,30,45,50,60A Adjustable
Leakage Motion Current (mA)
300mA, 500mA
300mA, 500mA
Leakage Dead Current (mA)
150mA, 250mA
150mA, 250mA
According with Standard
NFC61450
PG series adjustable residual current breaker(gardy rccb,gardy elcb)is suitable for AC 50/60Hz,230/400V circuit,prevents from overloading,short-circuit etc.On the occasion of shock hazard or earth leakage,it will trip immediately.At the same time,the rated current of overload protection can be adjustable.
CPG230, CPG430 Series breakers are suitable in AC 50Hz, 250/440V circuit with overload and earth leakage protection. The rated current is adjustable from 10A up to 60A. User can select suitable current to better protection against overload and short circuit. The products comply with NFC61450.
PG Moulded Case Circuit Breaker
item number of PG circuit breaker:
PG215000: 2pole 15A current without leakage current
PG215300, 2pole 15A current with 300mA leakage current
PG215500, 2pole 15A current with 500mA leakage current
PG230000, 2pole 30A current without leakage current
PG230300, 2pole 30A current with 300mA leakage current
PG230500, 2pole 30A current with 500mA leakage current
PG245000, 2pole 45A current without leakage current
PG245300, 2pole 45A current with 500mA leakage current
PG245500, 2pole 45A current with 500mA leakage current
PG260000, 2pole 60A current without leakage current
PG260300, 2pole 60A current with 300mA leakage current
PG260500, 2pole 60A current with 500mA leakage current
PG430000, 4pole 30A current without leakage current
PG430300, 4pole 30A current with 300mA leakage current
PG430500, 4pole 30A current with 500mA leakage current
PG460000, 4pole 60A current without leakage current
PG460300, 4pole 60A current with 300mA leakage current
PG460500, 4pole 60A current with 500mA leakage current
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
