2s BMS/PCM Apply for Li-ion 7.4V 2s 18650 Cells

Name: 2s BMS/PCM Apply for Li-ion 7.4V 2s 18650 Cells
Brand: all-electronics-online.com
SKU: 730569542
Availability: InStock
Rating: 4.9 (119 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	2S BMS/PCM
Battery Series:	16s
Over-Discharge Voltage Protectio:	2.40V/Cell
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

Quick Details

Place of Origin: Guangdong, China (Mainland)
Model Number: 2S0303-PCM(076)
Maximal continuous Discharging current .: 20A
Application: ebike battery.electrical equipment
Type: PCM/BMS/PCB

Packaging & Delivery

Packaging Details	standard export package

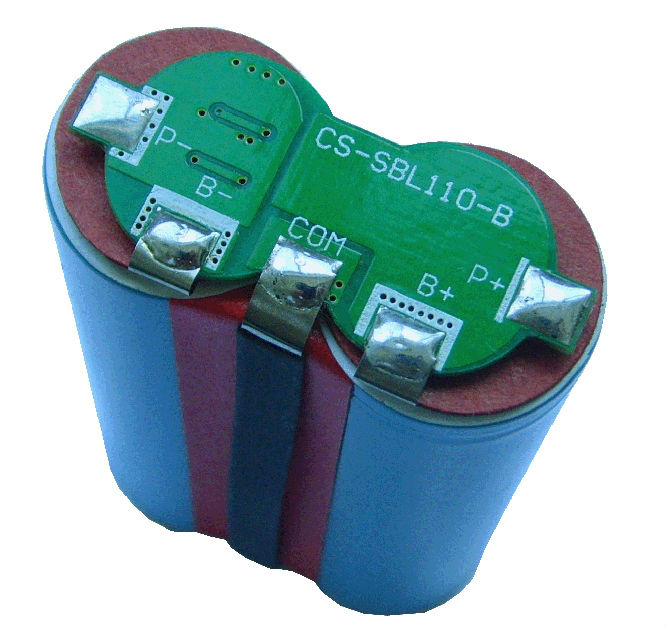

2S BMS/PCM Apply for li-ion 7.4V18650 2S1P cells

18650/2S1P Li-ion Battery Pack 7.4V/2.6AH
Model:18650-2S1P
Item	Specification		Remark
Nominal capacity	2600mAh		0.5C discharge Cell: 18650
Nominal voltage	7.4V		3.7V / 1Cell
Charging voltage	8.4V±0.05V		4.2V / 1Cell
Charging method	CC/CV		(Constant-current and -Voltage with Limited current
Standard charging time	1000mA/3hour,2000mA/1.5hour		Battery capacity÷charging current×1.5
charging current	1300mA(0.5C)		0 ~ +40°C
Maximum charging current	2600mA(1C)		0 ~ +40°C
Continuous discharge current	2600mA(1C)		-20 ~ +60°C
Discharge cutoff voltage	4.8V		2.4V / 1Cell
Short circuit protection	Exterior short circuit		Automatic recovery
Internal resistance	≤200mΩ		AC Impedance 1kHz
Cycle life	≥500
Operating temperature	Standard Charge	0 ~ +40°C
	Standard Discharge	-20 ~ +60°C
Outline dimension	L72W37H20mm		Length x wide x height
Pre-wired			Red = Positive,Black = Negative
Protection Circuit Module:2S0303-PCM
Maximal continuous charging current	3A
Maximal continuous Discharging current	3A
Over-charge detection voltage	4.25 V ±0.025V		single cell
Over-charge release voltage	4.05±0.05V		single cell
Over-charge detection delay time	0.7S-1.3S		single cell
Over-discharge detection voltage	2.40V±0.062V		single cell
Over-discharge release Voltage	3.0±0.10V		single cell
Over-discharge detection delay time	89-167mS		single cell
Over-current detection	6.5±1A		can adjust
Over-current delay time	6.7ms-13.9ms
18650/2S1P Li-ion Battery pack

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
