0.2s Instrument Current Transformer & Miniature Current Transformert

Name: 0.2s Instrument Current Transformer & Miniature Current Transformert
Brand: all-electronics-online.com
SKU: 690624702
Availability: InStock
Rating: 4.6 (109 reviews)

Price:	US $ 40.7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWTA79 SERIE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Rating:	0.6va
Rated Loadd:	1, 2.5, 5.0, 10, 30va
Rated Secondary:	Ma or 0.333-3.53VAC
RoHS Compliant: Ce-Approved:	Rated Primary Current: 100-300AAC
Frequency: 50/60Hz:	Operating Voltage:600VAC
Isolated Voltage: 2,500V AC:	Coil Structure: Toroidal
Accuracy Class:: 0.5, 1.0, 3.0 Class Co:	Low Cost: Water Proof
Shell Material:PBT Or ABS:	Leads 0.8foot(240mm), UL 1015, Twisted Pair, 0.34
Secondary Ratios Available: 5.0,1.0AAC:	Phase: Single
Application:	Instrument
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Auto-transformer
Certification:	Ce,SGS
Brand:	Gw

Product Description

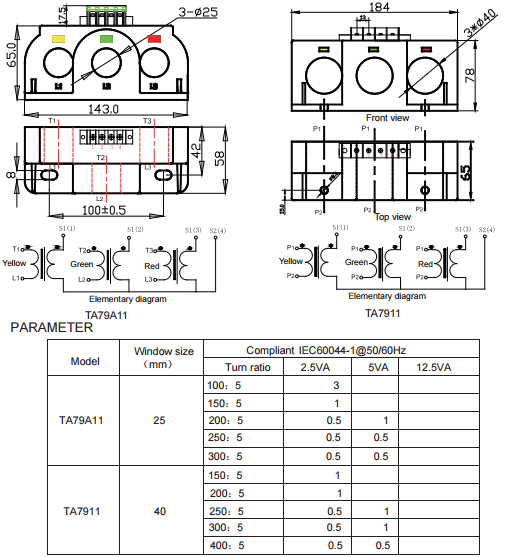

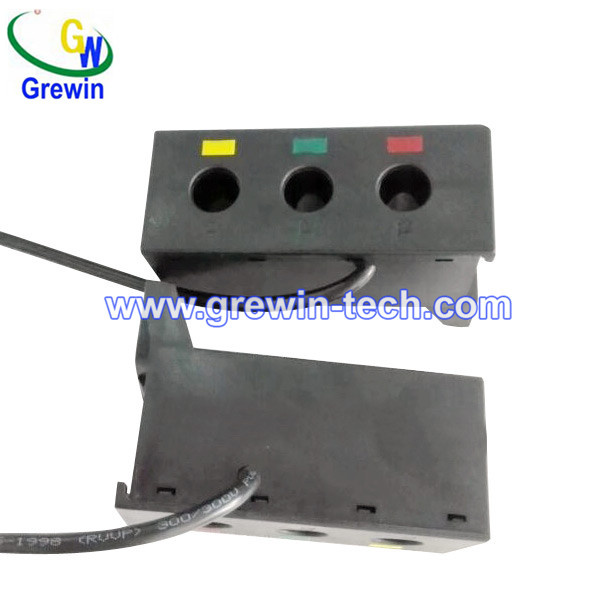

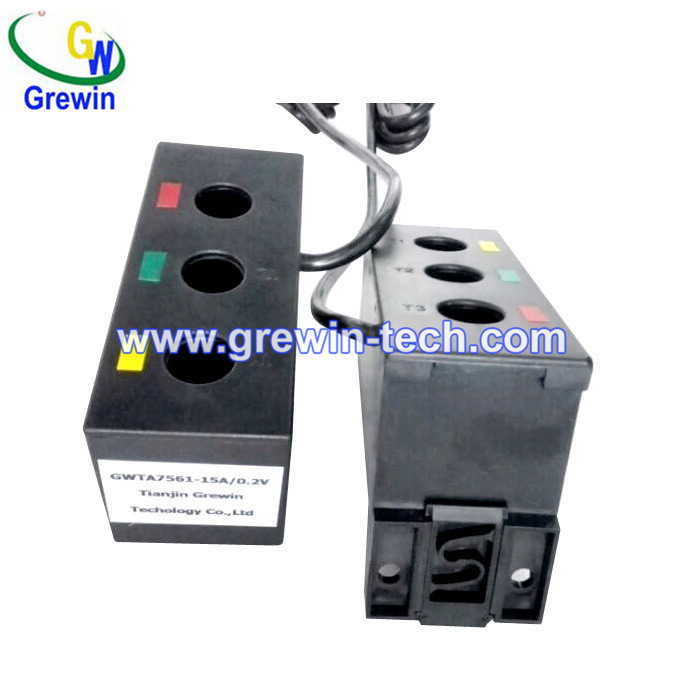

The GW TA79 series of 600V instruction three phase current transformers are designed for in the room. Two different window openings along with numerous secondary ratios are availableto meet most applications. This short form catalog shows an overview of our production.Contact factory for different sizes or style.

Features
      Low cost
      Water proof

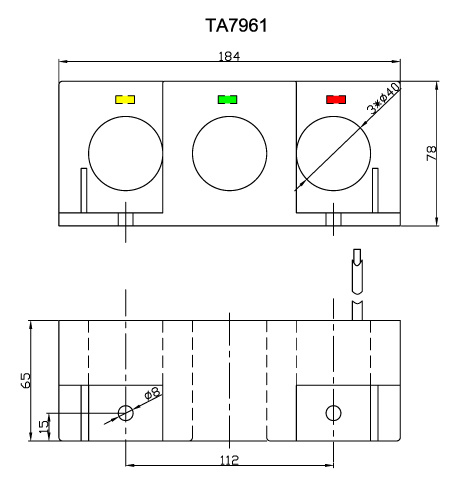

      2 outline size
      5.0,1.0,0.2&0.1Aac secondary ratios available
Applications
      Current,Power,Energy monitoring devices
      Relay protection device
Specifications
      Shell material:ABS
      Frequency:50-400 Hz
      Operating Temperature:-25 to +55ºC,-40 to
         +85ºC optional
      Operating Voltage:600Vac
      Isolation:600V,BIL 10KV Full Wave
      Accuracy class:compliantIy EC60044-1
      RoHS compliant

CONTACT INFO:

Victor Dong

Tianjin Grewin Technology Co.,Ltd.
Web: http://grewin-tech.en.made-in-china.com or www.grewin-tech.com
TEL:86-22-84943756
FAX:86-22-85909471
MT: 86-13820617229

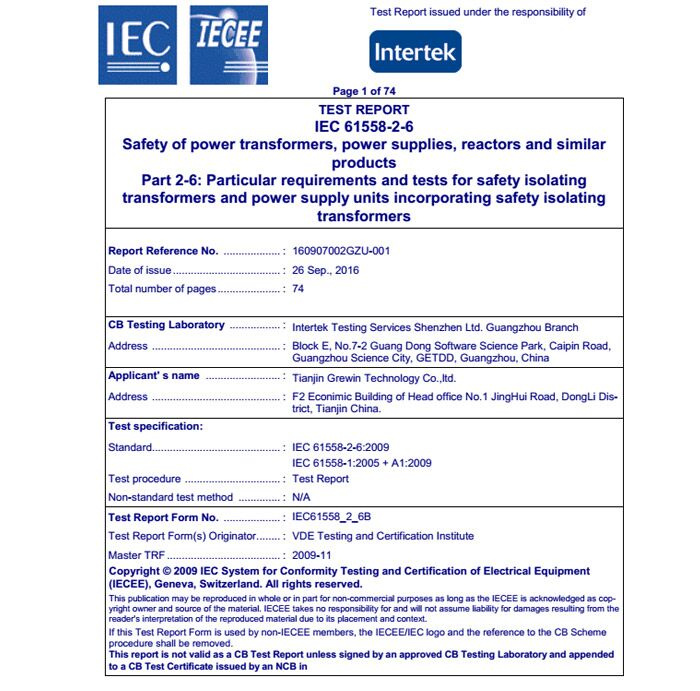

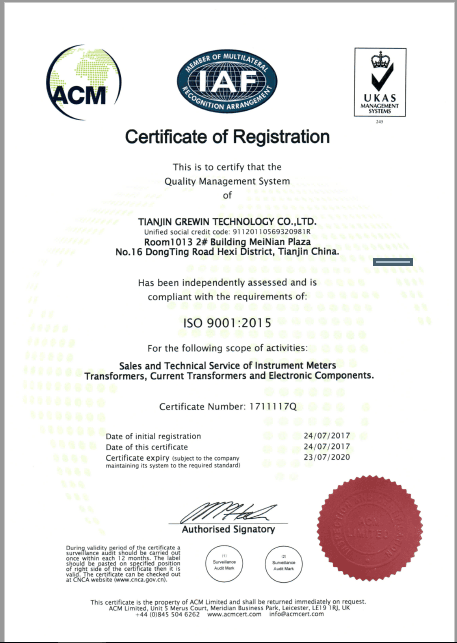

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

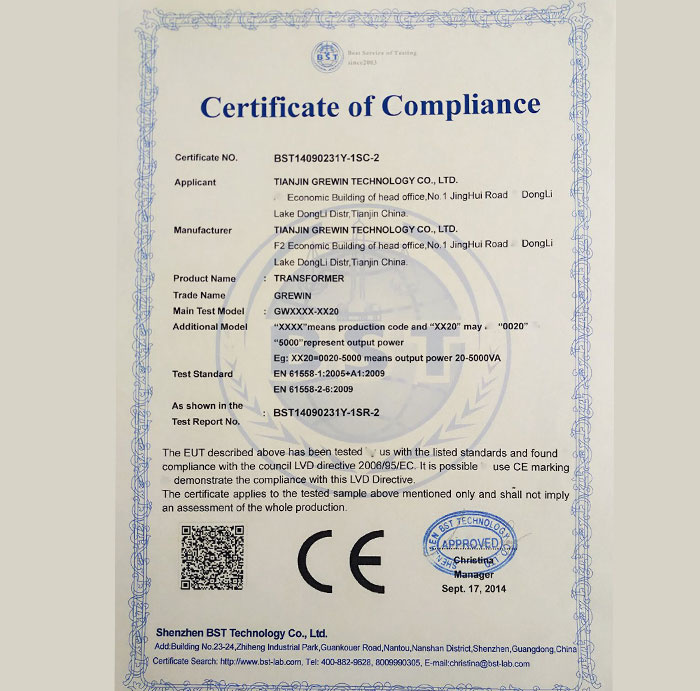

D. UL, CE, ISO9001: 2008
