| Prod Model: |
CN-200 |
| Certification: |
Ce UL ISO9001 ISO14001 RoHS IEC |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar |
| Nominal Voltage: |
2V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

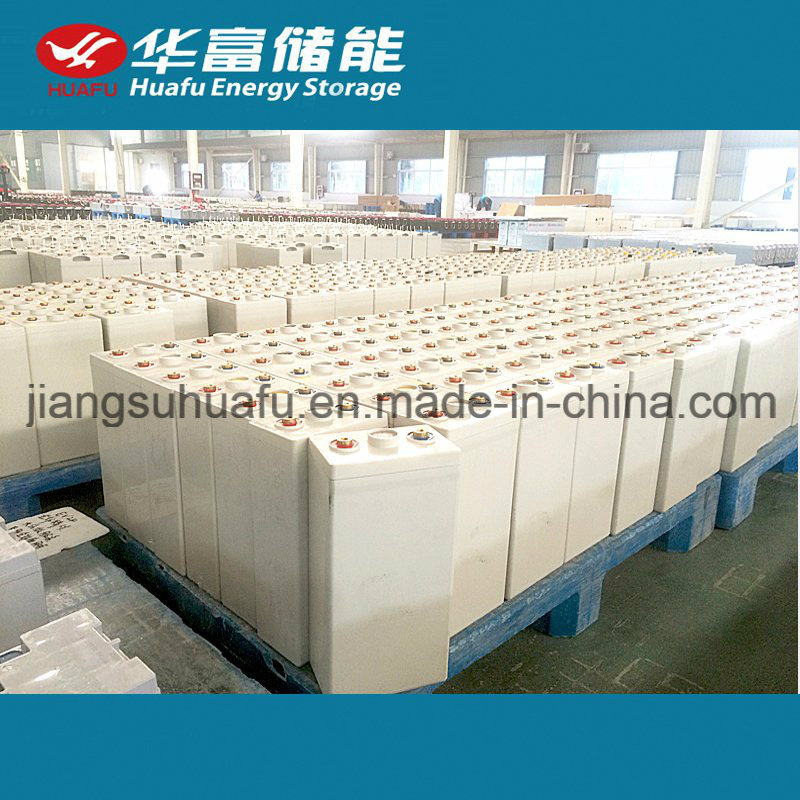

Huafu 2v 200ah Rechargeable Lead Acid Storage Cell
Battery Properties: Sealed Battery / Maintenance Free / Rechargeable Battery / Lead Acid Battery
Warranty: 3 Years. Any battery with quality problem will be changed
Quality system & Certifications: ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS
Huafu Lead Acid Battery Construction
| Element | Electrolyte | Positive Plate | Negative Plate | Container |
| Material | Acid | Lead dioxide | lead | ABS |
| |
| Element | Cover | Safety valve | Terminal/Wire | Separator |
| Material | ABS | Rubber | Copper | Fiberglass |
Huafu 2V200Ah Storage Battery Specification
| Rated Voltage | 2V |
| Rated capacity (10 hour rate) | 200Ah |
| Dimension | Length | 171mm (6.74inches) |
| Width | 106mm (4.18inches) |
| Height | 330mm (13.00inches) |
| Total Height (with terminal) | 342mm (13.47inches) |
| Weight Approx | 12.8Kgs (28.16Ibs) |
| Terminal | M8-20 Copper Terminal |
Huafu 2V200AH Rechargeable Battery Characteristic
| Capacity at 25'C (77'C) | 10 hour rate / 1.8V/Cell | 200Ah |
| Charge | Limit initial current to 50A. |
| Cycle Applications | 2.35V-2.45V |
| "Float" or "Stand-By" Service | 2.25V-2.38V |
| Ambient Temperature | -25'C~50'C |
| Capacity affected by Temp | 40'C (104F) | 104% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 67% |
| Self-Discharge 25'C (77'F) | Capacity after 3 month storage | 94% |
| Capacity after 6 month storage | 89% |
| Capacity after 12 month storage | 82% |
Huafu 2V200AH Valve Regulated Battery Feature
1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
2). Maintenance-free operation - no addition of water to the electrolyte is required.
3). Sealed Battery with Valve Regulated Construction .Can be mounted in any orientation.
4). Wide range of operating temperatures with temperature compensated charging.
5). Computer designed lead, calcium tin alloy grid for high power density.
6). Extended service life due to low self-discharge levels.
7). Available in flame retardant ABS material for the battery case
Huafu 2V 200AH Battery Packing information
| In carton | packing in wooden Box |
| Pcs/Ctn | Ctn | Ctns/Box | Box Size |
| 1 | | | |
| |
Huafu Battery installed in type of horizontal rack
Applicable product series:
Energy storage use battery(CNJ series) ,Specialty battery for plateaus, Lead-carbon battery,
valve-regulated sealed battery(GFM series), Heat-tolerant battery.
Applicable models:
12V series:12V24Ah,12V30Ah,12V40Ah,12V50Ah,12V180Ah,12V200Ah,12V220Ah,12V250Ah;
6V series::6V180 Ah,6V200 Ah;
2V series:2V200 Ah,2V300 Ah,2V400 Ah,2V500Ah,2V600Ah.
Advantages:
Space saving: Because the horizontal installation's wiring is on the side face of the bracket, there is no need to
reserve space like upright installed batteries , which greatly saves the whole installation volume; It is convenient
and economical for end users to operate batteries in the container structure, narrow ,small and limited space.
‚Easy to Install and maintain: It is convenient to install, replace and maintain the battery. When under the
inspection, it is easy to find and deal with the problem directly.
Aesthetic appearance: The overall visual effect is consistent with the aesthetic design of industrialization
Other Models:
| Model | Normal Voltage | Normal Capacity | Size
Length* Width*Height*Total Height(with terminal) |
| CN-200 | 2 | 200 | 171*106*330*342 |
| CN-300 | 2 | 300 | 171*151*330*342 |
| CN-400 | 2 | 400 | 196*171*330*342 |
| CN-500 | 2 | 500 | 241*171*330*342 |
| CN-600 | 2 | 600 | 285*171*330*342 |
| CN-800 | 2 | 700 | 383*171*330*342 |
| CN-1000 | 2 | 800 | 471*171*330*342 |
| CN-1200 | 2 | 1000 | 510*175*337*347 |
| CN-1500 | 2 | 1200 | 318*341*341*351 |
| CN-2000 | 2 | 1500 | 433*342*341*351 |
| CN-2500 | 2 | 2500 | 629*346*341*351 |
| CN-3000 | 2 | 3000 | 629*346*341*351 |
