2V 200ah Solar Lead Acid Battery for UPS System Cl2-200

Prod Model:	CL2-200 ups battery
Voltage:	2V UPS Battery
Size:	L*W*H=173*111*330mm Solar Battery
Weight:	13.5kgs Lead Acid Battery
Warranty:	1years Deep Cycle UPS Battery
Expected Cycle Time:	10-12 Years Solar Battery
Maximum Power:	3500ah Deep Cycle Battery
Delivery Time:	7days Solar Power Battery
Brand:	Cspower/OEM
Export Markets:	Global Storage Battery
Terminal:	T11
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	2V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

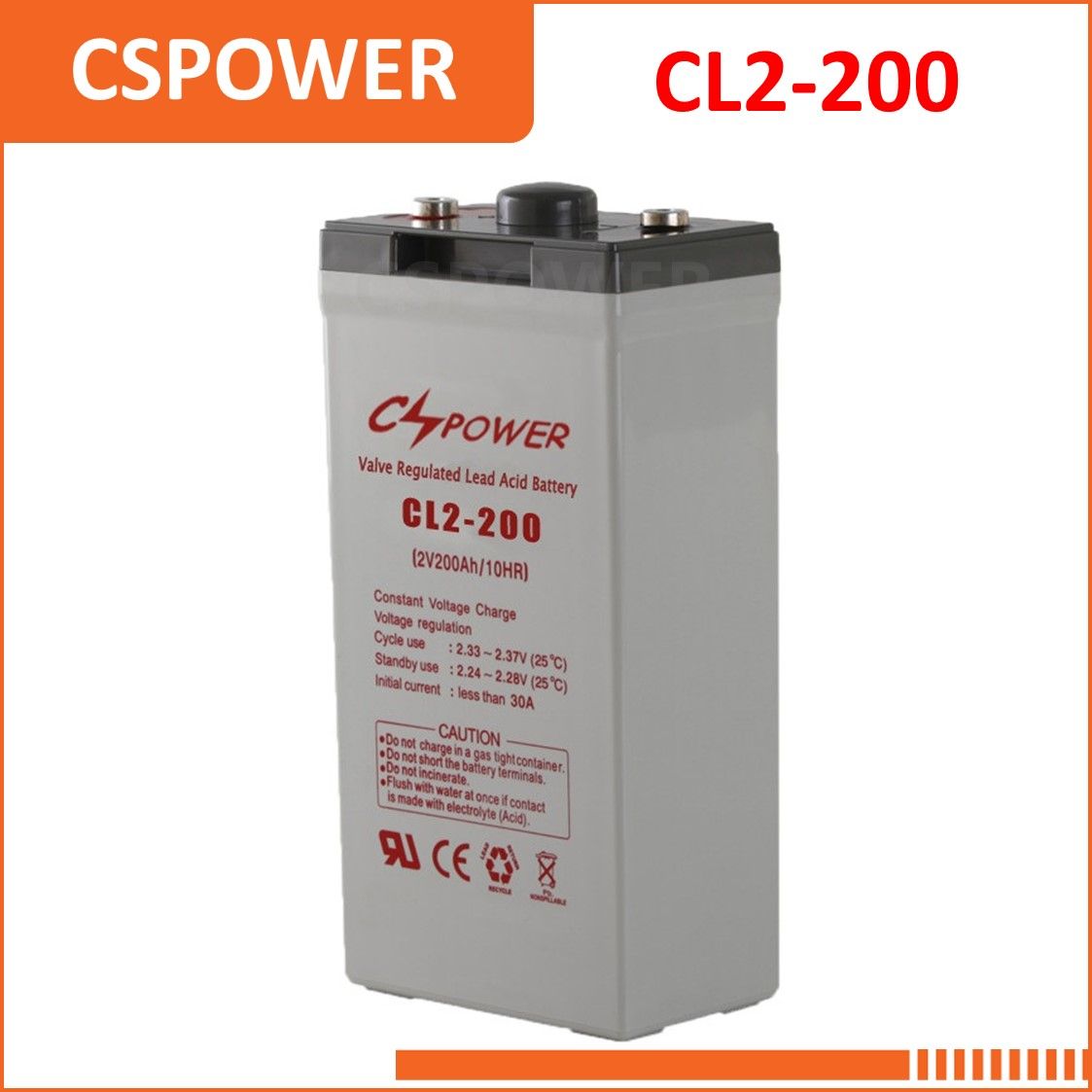

2V 200ah Solar Lead Acid Battery for UPS System



CL2-200, Long cycle life ups battery
Solar Lead Acid Battery

Advantage
1. Excellent safety performance
2. Good dischargeing performance
3. Good stock-proof performance
4. Good impact-proof performance:
5. Good resistance to overdischarge
6. Good resistance to overcharge
7. Good resistance to high current

Application
- UPS
- Alarm System
- Cable Television
- Communication Equipment
- Control Equipment
- Security System
- Medical Equipment
- street lighting system
- Power Tools
- Toys
- Emergency Power System



(1) Battery Installation
Batteries should be installed possibly in a clean, cool, ventilated and dry place. The battery should be placed upright. Each terminal between the batteries is connected firmly.
(2) The ambient temperature
Ambient temperature is important factor for the battery operation. When the ambient temperature is too high, Battery plate corrosion will be increased, while absorbing more moisture; When the ambient temperature is too low, the battery will not be full charged. All this will affect the battery life. Therefore we suggest the working ambient temperature is around 25 º C.
(3) The charge and discharge current
Battery charge and discharge current usually uses the concept C, the actual value of C is related to the capacity of the battery. For example, a 100AH battery: 1C = 100A. Charging current is around 0.1C; The charging current must not be bigger than 0.3C. Discharge current general requirements in 0.05 ~ 3C range.
(4) Charging voltage
After the battery is full converted to float charging, the float voltage is around 13.0V. If the charging voltage is too high will cause the battery overcharge, otherwise the battery will not be full charged. Charging voltage is abnormal, it may be caused by the battery configuration error, or it may be caused by controller failure. Do not choose the controller with bad quality.
(5) The depth of discharge
Depth of discharge of the battery life is also a important factor for lifetime of battery, the deeper the battery discharge, the fewer the number of cycles, so battery should avoided from deep discharge.
(6) Regular maintenance
Battery should be regular checked in every period time after used, such as check its outlook, measuring the average voltage of each battery, etc.

About CSPOWER:
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.

CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is99.998%.

The main products of CSPOWER is 2V/6V/12V UPS Battery, AGM sealed free maintenance lead acid battery, Solar deep cycle battery, Solar GEL battery upto 2V3000Ah, 6V300Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.

Contact CSPOWER Details:
Tel: 0086-755-29123661
Web: www.csbattery.net
          www.csagmbattery.com
          www.cssolarbattery.com
          http://cspower.en.made-in-china.com/

Model NO.	Nominal Voltage (V)	Rated Capacity(AH) 10hrs/25ºC	Approx. Weight		Dimensions(mm)								Terminal Type
			kg	lbs	Length		Width		Height		Total Height
					mm	inch	mm	inch	mm	inch	mm	inch
CL2-50	2	50	2.9	6.38	160	6.30	49	1.93	166	6.54	176	6.93	T12
CL2-100	2	100	5.6	12.32	171	6.73	71	2.80	207	8.15	227	8.94	T6
CL2-150	2	150	8	17.60	172	6.77	102	4.02	207	8.15	227	8.94	T6
CL2-200	2	200	13.5	29.70	172	6.77	111	4.37	329	12.95	356	14.02	T20
CL2-300	2	300	18.8	41.36	171	6.73	151	5.94	330	12.99	366	14.41	T20
CL2-400	2	400	26.7	58.74	210	8.27	176	6.93	329	12.95	366	14.41	T20
CL2-500	2	500	31	68.20	241	9.49	172	6.77	331	13.03	366	14.41	T20
CL2-600	2	600	38	83.60	301	11.85	175	6.89	331	13.03	366	14.41	T20
CL2-800	2	800	53	116.60	410	16.14	175	6.89	330	12.99	365	14.37	T20
CL2-1000	2	1000	63	138.60	475	18.70	175	6.89	330	12.99	356	14.02	T20
CL2-1200	2	1200	69	151.80	475	18.70	175	6.89	330	12.99	356	14.02	T20
CL2-1500	2	1500	101	222.20	401	15.79	351	13.82	342	13.46	369	14.53	T20
CL2-1800	2	1800	120	264.00	401	15.79	351	13.82	342	13.46	369	14.53	T20
CL2-2000	2	2000	132	290.40	491	19.33	351	13.82	343	13.50	369	14.53	T20
CL2-2500	2	2500	165	363.00	710	27.95	352	13.86	342	13.46	369	14.53	T20
CL2-3000	2	3000	195	429.00	710	27.95	352	13.86	342	13.46	369	14.53	T20
