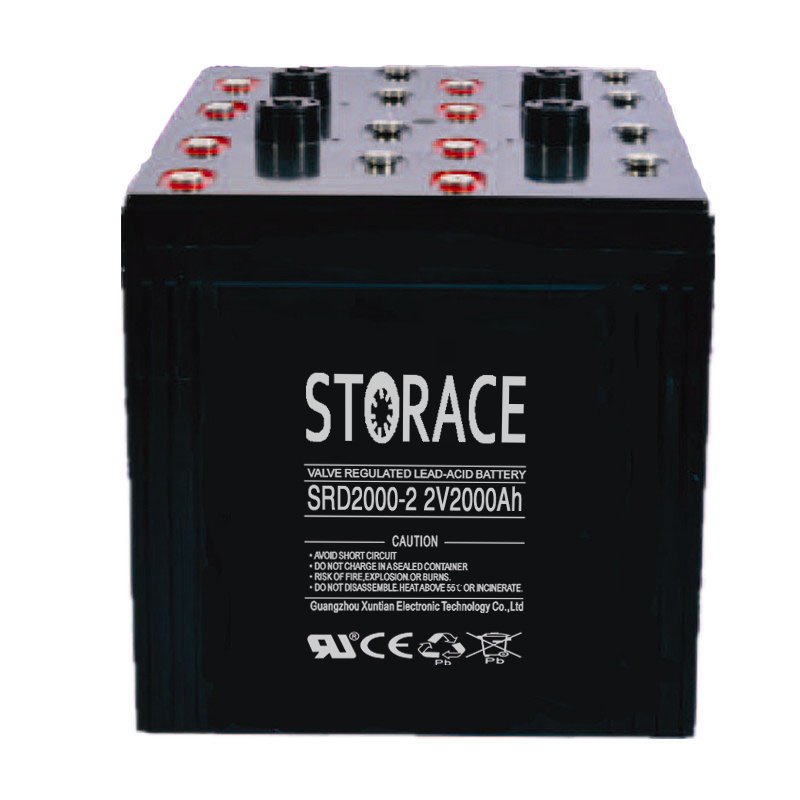

2V Deep Cycle Battery AGM 2000ah (SRD2000-2)

Name: 2V Deep Cycle Battery AGM 2000ah (SRD2000-2)
Brand: all-electronics-online.com
SKU: 707538325
Availability: InStock
Rating: 5 (78 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRD2000-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	491351343mm
Weight:	132.00kg
Color:	Black / Dark Gray
Cell:	1
Separator:	AGM
Plate:	Flat Plate
Sealing:	Glue Sealing
Terminal Type:	Copper
Battery Case:	ABS
Accessory:	Screws
Type:	Lead-Acid Batteries
Rechargeable:	Chargeable
Discharge Rate:	Low Discharge Rate
Nominal Voltage:	2V
Usage:	Solar
Shape:	Rectangle

Product Description

Solar series Detailed Product Description

solar series batteries with valve regulated lead acid use particular alloy and material technology design to ensure a excellent performance in various environments, especially high and low temp. Solar series baattaeries is optimal for storage and conversion of photovoltaic energy and wind energy.

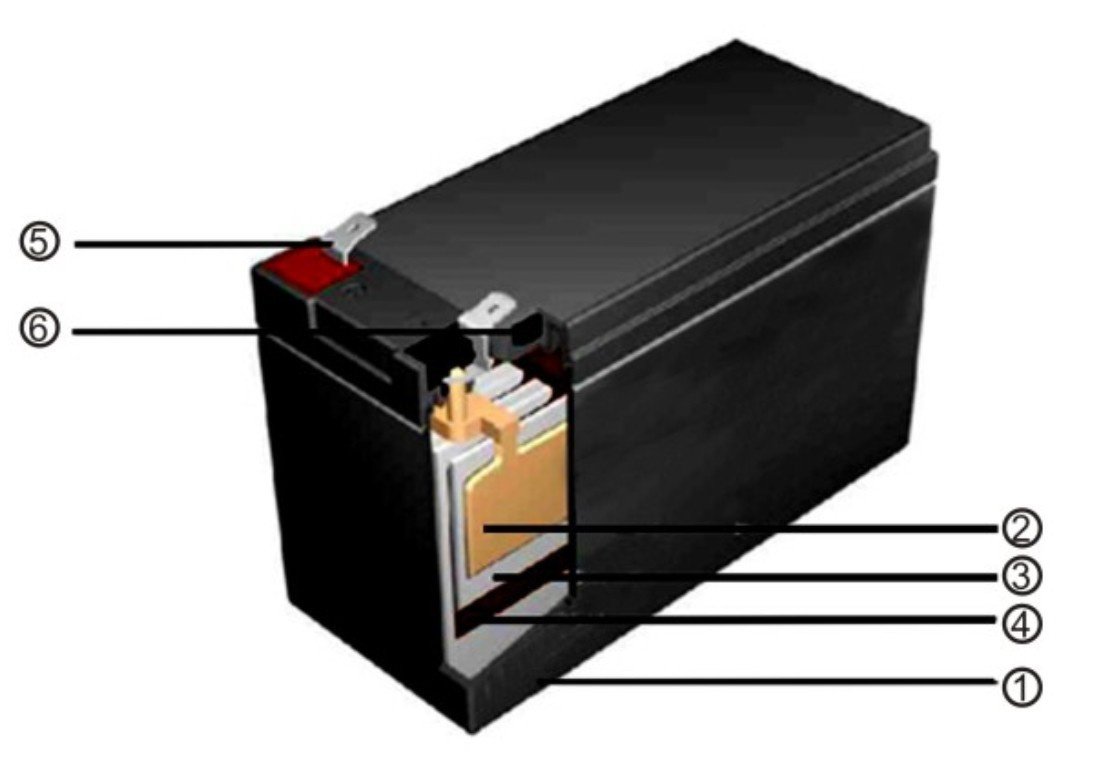

Battery Structure

1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

2V Deep Cycle Battery Agm 2000ah (SRD2000-2)

Application
Solar street light system, solar power home system, Photovoltaic system, Alternative energy system, Electric Utility, Outdoor control equipment, Railroad Utility, control systems, power systems, wind energy systems, telecommunications/communication systems & UPS system & etc.

Characteristics
1. Long service life: Designed life is over five years.
2. Good deep charge cycle performance: Good performance in charging, over-discharging and deep-discharging.
3. Good resistance to corrosion and small internal resistance.
Widely working environment: The solar battery can be used at widely difference in temperature from subzero 40 degree centigrade to 60 degree centigrade.

Capacity 77° F(25º C)	10 hours rate(200A 1.80V)	2000Ah
	5 hours rate(358A 1.75V)	1790Ah
	3 hours rate(520A 1.70V)	1560Ah
	1 hour rate(1230A 1.60V)	1230Ah
Internal Resistance	Full charged battery 77° F(25º C): 0.3mΩ

Capacity affected by Temperature (10 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 3000A(5S)
Charge (Constant Voltage)	Float: 2.25 to 2.30V/77° F/(25º C)
	Cycle: 2.35 to 2.45V/77° F/(25º C)
	Max Current: 400A

Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.

Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.

After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.

Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
