2V Lead Acid Battery with a Wide Range of Capacities

Name: 2V Lead Acid Battery with a Wide Range of Capacities
Brand: all-electronics-online.com
SKU: 700951615
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 10-620/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	2v series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Cell:	1
Sealing:	Glue Sealing
Terminal Type:	Copper
Separator:	AGM
Plate:	Flat Plate
Battery Case:	ABS
Accessory:	Screws & Copper Bar
Safety:	Explosion-Proof
The Charging Current Rate:	Less Than 0.3c
Type:	Lead-Acid Batteries
Rechargeable:	Chargeable
Discharge Rate:	Low Discharge Rate
Nominal Voltage:	2V
Usage:	Solar
Shape:	Rectangle

Product Description

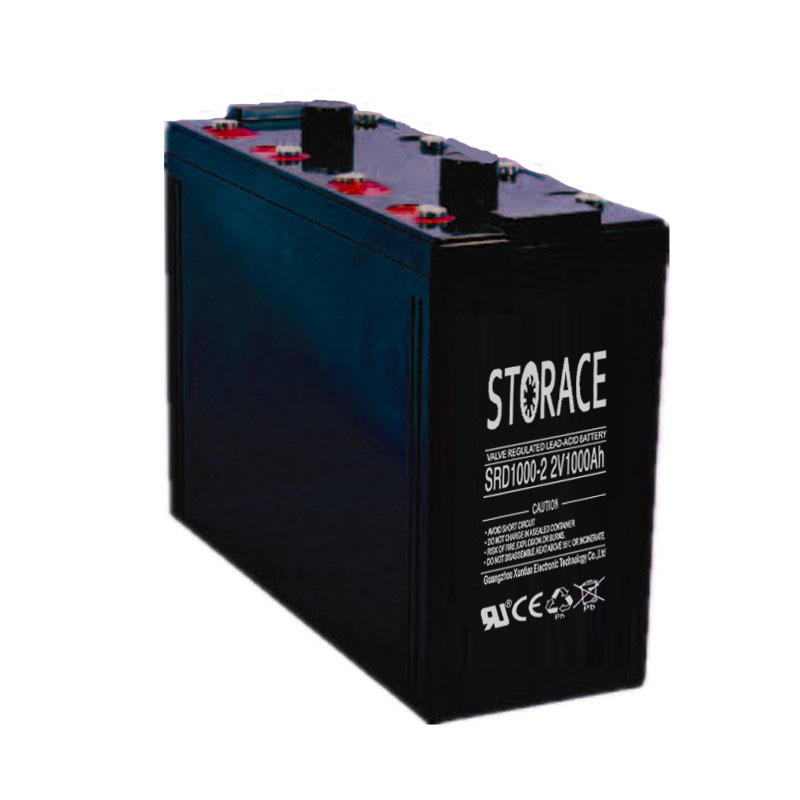

2V Lead Acid Battery with a Wide Range of Capacities
(High Density Series)

Valve regulated lead acid series UPS batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.

Battery Structure
1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

Characteristics
1. Excellent safety performance.
2. Good dischargeing performance.
3. Good stock-proof performance.
4. Good impact-proof performance.
5. Good resistance to overdischarge.
6. Good resistance to overcharge.
7. Good resistance to high current.

Battery Model	Nominal voltage (V)	(Ah) capacity (Ah) 20hrs/25ºC	Approx. weight	Dimension				Terminal Type
			kg	Length	Width	Height	Total Height	Terminal Type
			kg	mm	mm	mm	mm
SRD50-2	2	50	2.90	160	49	166	176	T12
SRD100-2	2	100	5.60	171	71	207	227	T6
SRD100-2	2	100	5.90	171	71	207	231	T11
SRD150-2	2	150	8.00	172	102	207	231	T11
SRD200-2	2	200	13.50	172	111	329	356	T20
SRD300-2	2	300	18.80	171	151	330	366	T20
SRD400-2	2	400	26.70	210	176	329	366	T20
SRD500-2	2	500	31.00	341	172	331	366	T20
SRD600-2	2	600	38.00	301	175	331	366	T20
SRD800-2	2	800	53.00	410	175	330	365	T20
SRD1000-2	2	1000	63.00	475	175	330	356	T20
SRD1200-2	2	1200	74.00	475	175	330	356	T20
SRD1500-2	2	1500	101.00	401	351	342	369	T20
SRD1800-2	2	1800	120.00	401	351	342	369	T20
SRD2000-2	2	2000	132.00	491	351	343	369	T20
SRD2500-2	2	2500	165.00	710	352	342	369	T20
SRD3000-2	2	3000	195.00	710	352	342	369	T20
