| Prod Model: |
TL210000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
475(L)*175(W)*330(H)mm |
| Weight: |
66.0kg |
| Color: |
Black/ White/ Grey |
| Terminal: |
F10 |
| Charge Voltage (Cycle Use): |
2.35~2.40V |
| Charge Voltage (Float Use): |
2.25~2.30V |
| Designed Life: |
12 Years |
| Warranty: |
3 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System Communication Equipment |
| Nominal Voltage: |
2V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

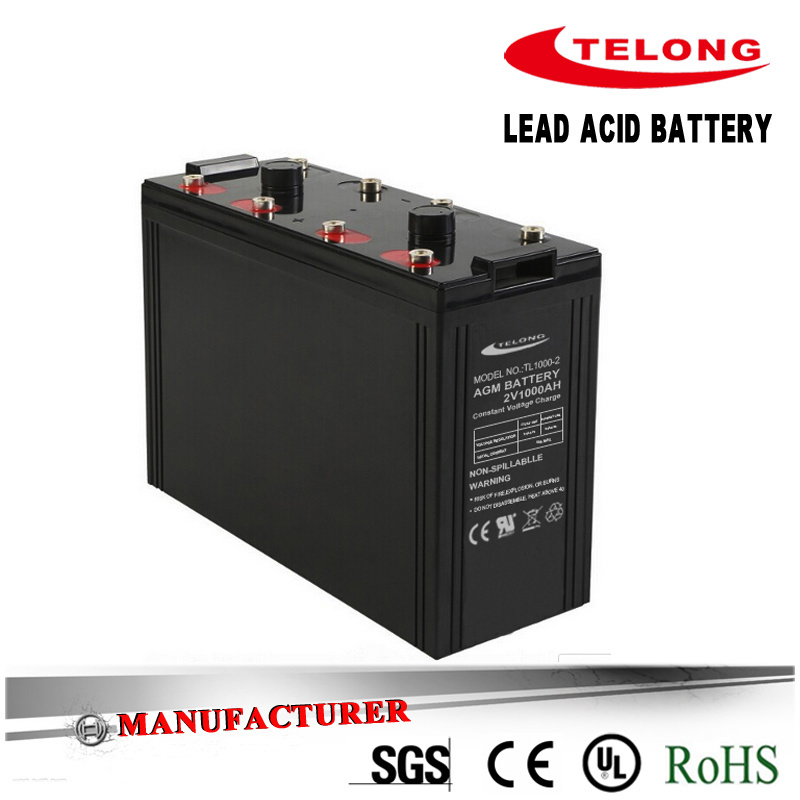

TELONG 2V1000ah Battery: 1). Sealed Battery / Maintenance Free Battery / Rechargeable Battery / Lead Acid Battery
2). Warranty: 3 Year , changed with quality problem. 3). OEM / ODM 4). CE UL RoHS approvial
5). Used for: Solar / Wind system Telecommunication system.....
BATTERY CONSTRUCTION OF 2V1000Ah BATTERY
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
QUALITY ASSURANCE OF 2V1000AH Sealed Lead Acid Battery
1).Warranty period of three years:the date of the battery from the factory within 36 months,where the
Company or the
authority of the professional testing organization determine the quality of failure are battery manufacturers, at designated
locations to give a free replacement battery with the specifications of the new; replace the battery when I While failure
to recover the battery.
2).The identification of large current discharge: new arrival in the battery, 25 ± 1 ºC temperature, fully charged battery
to the model of large current 3 times the rated discharge capacity 7 min, the battery voltage drops below 1.6V / cell,
determined to be unqualified.
3).Determine the capacity of the exception: the new battery installed in the 25 ± 2 ºC after fully charged capacity test,
in three cycles, the 20hour rate capacity can not reach the rated capacity of 90%, After five cycles, 20 hours rate
capacity can not meet 100% of the rated capacity, determined to be ineligible
4).Standard: The Company entered into force in a clear customer contract requirements, contract requirements should be
the standard;if the customer no special requirements, refer to China national machinery Industrial Standard
5).Normal use and maintenance: by TELONG "Lead Acid battery Manual " Operation and Maintenance
6).Quality: The company "technology first, the tree class enterprise; continuous improvement, so the battery quality;
customer first, creating international brand " of quality in strict accordance with ISO9001: 2000 quality system
standards requirements, passion for customer service.
APPLICATIONS OF 2V1000Ah UPS BATTERY
Uninterruptible Power Supplies (UPS)
Telecommunication system
Standby Power supply
Photovoltaic
Solar and wind system
Cellular radio
Fire alarm and security systems
Auto control system
CHARACTERISTICS OF 2V1000Ah MAINTENANCE FREE BATTERY
Capacity
25'C (77'C) | 10 hour rate(0.75A ) | 1000AH |
| 5 hour rate(1.39A ) | 890AH |
| 3 hour rate(2.55A ) | 756AH |
| 1 hour rate(9.4A ) | 615AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 0.5 milli-ohm |
Cycl Life
in Relation to Depth of Discharge | 30 % (Depth of Discharge) | 1800 (cycles) |
| 50 % | 800 |
| 80 % | 600 |
| 100 % | 400 |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F10 |
Charge
(Constant Voltage) | Initial Charging Current less than 200A |
| Voltage 2.35-2.45V |
| Voltage 2.25-2.3V |
