| Prod Model: |
CL2-1500 |
| Size: |
401*351*343*383mm |
| Voltage: |
2V |
| Rated Capacity: |
1500ah |
| Weight Apporox: |
98.5kg |
| Terminal: |
T7 |
| Color: |
Black |
| OEM: |
Available |
| Export Market: |
Global |
| Certificate: |
ISO, UL, Ce |
| Brand Name: |
Cspower |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
2V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
2V1500ah |
Product Description
Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: CSPOWER
Model Number: CL2-1500 Usage: UPS
Voltage: 2v Sealed Type: Sealed
Maintenance Type: Free Size: 401*351*343*383MM
Weight: 98.5kg Nominal Capacity: 1500ah
Long life battery: Solar Battery 2v 1500ah
Packaging & Delivery
Packaging Detail: One battery/ carton, several pcs per pallets
Delivery Detail: 20-30days
Specifications
Solar Battery 2V 1500ah
1) Designed life 20 years
2) With UL, CE, IEC certificates
CSPOWER Battery AGM Battery Long Life Solar Battery 2v 1500ah
1) Long desinged life 20 years
2) Low self-discharge rate less than 0.3%/month
3) With CE, UL, ISO, IEC certificates
4) Excellent deep discharge performance
Description:
The Solar series is designed for frequent cyclic charge and discharge applications under extreme environments.
Voltage covers: 2v
Capacity: From 100ah to 3000ah
Designed floating service life: 20years @ 20 ° C/68 ° F.
Advantage:
20 years float life at 20° C
Up to 5 years design life at renewable energy applications according to IEC61427
Wide operating temperature range from -15° C to 60° C
Round trip efficiency as high as 85%.
Thick positive flat plate design with high Tin low Calcium alloy and high density paste
Low self-discharge rate and long shelf life (9 months at 25° C)
Excellent deep discharge recovery capability
CONSTRUCTION
Positive plate Thick high Sn low Ca grid with high density paste
Negative plate Over designed capacity to overcome sulphation at low SOC
Separator Advanced AGM separator
Electrolyte Dilute high purity sulphuric acid with nano gel
Battery container and cover ABS
Pillar seal 100% factory tested, proven two layers epoxy resin seal
Relief valve Complete with integrated flame arrestor
Applications
Photovoltaic systems
Renewable Energy System
Electric Utilities
Outdoor control Equipments
Railroad Utilities
Deep Cycle AGM Battery
Maintenance Free Battery
Solar Battery
Sealed Lead Acid Battery
Lead Acid Battery battery
VRLA Battery
VRLA Gel Battery
Single Cell Batteries
Gel Battery Manufacturers
Gel Cell batteries
Gel Battery | RV and Marine Deep Cycle Gel Cell Batteries
AGM Gel Battery
Deep-Cycle Gel Battery Company
VRLA Gel Sealed Lead-Acid Batteries for Telecom & Network Power
Sealed Gel Cell Batteries
Gel cell battery technology
Gel Deep Cycle Marine Batteries,Discount Marine Batteries
China GEL Battery, GEL Battery Manufacturers, Suppliers
GEL Sealed Battery Information
Gel Motorcycle Batteries
SLA/GEL Rechargeable
Sealed Gel Deep Cycle Batteries
Sealed Gel Cell Solar Battery
Power Gel Series Battery
lead gel battery
Cyclic Duty Gel Batteries
AGM (absorptive glass mat) gel battery
GEL Battery long Life Mobility
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CG12-33 | 12 | 33 | 10.4 | 22.9 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 170 | 6.69 | T9/T16 |
| CG12-38 | 12 | 38 | 12.2 | 26.84 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CG12-50 | 12 | 50 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-55 | 12 | 55 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-65 | 12 | 65 | 20,5 | 45.1 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CG12-70 | 12 | 70 | 22.0 | 48.4 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CG12-80 | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | T14 |
| CG12-85 | 12 | 85 | 29 | 64.10 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | T16A/T8 |
| CG12-100 | 12 | 100 | 30 | 66 | 331 | 13.0 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CG12-120 | 12 | 120 | 36.5 | 80.3 | 407 | 16.0 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CG12-134 | 12 | 134 | 41 | 90.2 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.14 | T9/T20 |
| CG12-150 | 12 | 150 | 42.5 | 93.5 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CG12-180 | 12 | 180 | 56.5 | 124 | 530 | 20.9 | 209 | 8.23 | 214 | 8.43 | 240 | 9.45 | T9 |
| CG12-200 | 12 | 200 | 60 | 132 | 522 | 20.57 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CG12-230 | 12 | 230 | 64 | 140.8 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CG12-250 | 12 | 250 | 68 | 150 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CG2-100 | 2 | 100 | 6.4 | 14.11 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | T16 |
| CG2-150 | 2 | 150 | 9.0 | 19.8 | 172 | 6.77 | 102 | 4.02 | 207 | 8.15 | 227 | 8.94 | T6 |
| CG2-200 | 2 | 200 | 14 | 30.9 | 172 | 6.77 | 111 | 4.37 | 329 | 13.0 | 356 | 14.0 | T20 |
| CG2-300 | 2 | 300 | 20.5 | 45.2 | 171 | 6.70 | 151 | 5.94 | 330 | 13.0 | 366 | 14.4 | T20 |
| CG2-400 | 2 | 400 | 27.5 | 60.6 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CG2-500 | 2 | 500 | 33.5 | 73.9 | 241 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-600 | 2 | 600 | 41 | 90.4 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-800 | 2 | 800 | 55 | 121.3 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | T20 |
| CG2-1000 | 2 | 1000 | 66.5 | 146.6 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CG2-1500 | 2 | 1500 | 103.5 | 228.2 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
C
G2-2000 | 2 | 2000 | 136 | 299.8 | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CG2-3000 | 2 | 3000 | 195 | 429 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | T20 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

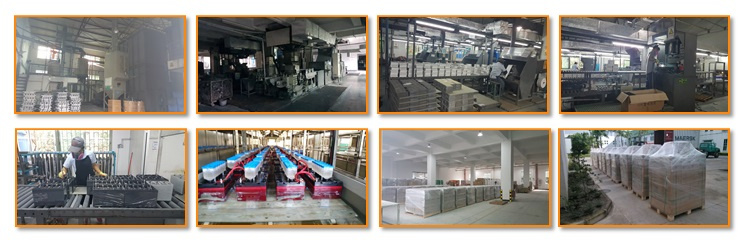

Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.

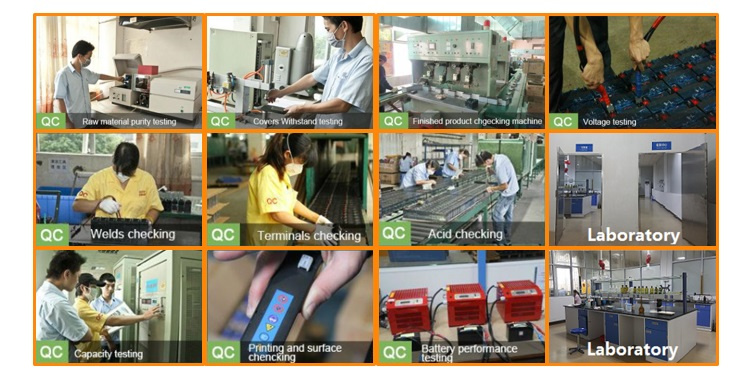

With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
