Zhongshan Weipasi Power Co., Ltd. >> 2V2500AH OPzS Battery, Flooded Lead Acid battery that Tubular Plate UPS EPS Deep Cycle Solar Power Battery VRLA Battery 5 Years Warranty, >20 years Life
2V2500AH OPzS Battery, Flooded Lead Acid battery that Tubular Plate UPS EPS Deep Cycle Solar Power Battery VRLA Battery 5 Years Warranty, >20 years Life
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Prod Model: |
2V2500AH |
| Color: |
Any Color The Customer Needs |
| Quality Standard: |
ISO9000, CE, RoHS, MSDS, Soncap, Coc/Voc, IEC Test |
| Advantage 1: |
Hight Capacity, Good Quality |
| Advantage 2: |
Hight Performance, with Low Price |
| Productong Lead-Time: |
2~30 Days After Deposit |
| Packing Quantity: |
1PCS/Box |
| Battery Size(mm): |
487*210*807mm |
| Type: |
Lead-Acid Batteries |
| Usage: |
Other |
| Nominal Voltage: |
2V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
GEL |
Product Description
http://v.youku.com/v_show/id_XNzU2NjAwNjg0.html
http://v.youku.com/v_show/id_XOTM1NjI0NTg4.html
Q5/Weipasi Power Company keenly encourages environmental awareness; PLEASE follow guidelines for the recycling /disposal of lead.
V.S.

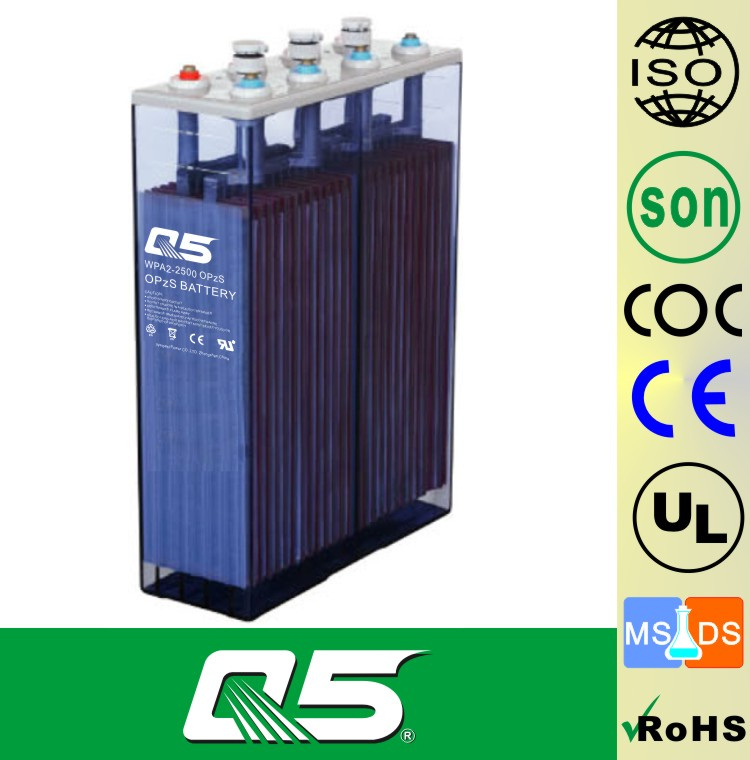

Weipasi Power OPzS series is a flooded Lead Acid battery that adopts Tubular Plate technology to offer high reliability and performance.
is designed for alternative energy system including solar energy system with 20-year design life in float service.
tubular plate technology is applied to provide high performance and long life.
The series is suitable for cyclic use under extreme operating conditions.
For example, telecommunication, large-scale UPS, nuclear power station, electric power substation and so on.
Product Features
· Capacity range: 200Ah-3000Ah
· Long working life: >20years
· Low self-discharge rate: ≤2%/month
· Cycle life: 100%DOD 1100times ;80%DOD 2400times;50%DOD 3200times;30%DOD 4800times
· High charge acceptance performance
· Widen operation temperature rang:- 35ºC~65ºC
· Grid: made of rare earth alloy with patented formula, thicker and anti-corrosion, ensure stronger ability to recover from deep discharging
· Positive Plate: tubular type with die-casting, use quaternary alloy (Pb-Ca-Sn-Al), good corrosion resistance and long service life.
· Negative plate: improved high-density lead paste with patented design
· Separator: PVC-SiO2 separator imported from German, low internal resistance, high pore rate and long life
· Safety valve: good sensitivity, safe and reliable, equipped with flame arrester/acid filter
· Battery case: high strength ABS and durable design
· Voltage class: 2V
· Float charge voltage: 2.25V-2.3V
· Equalized charge voltage: 2.4V-2.45V
------------------------------------------------
Weipasi Power AGM/GEL series is a general purpose battery with 18 years design life in float service.
With heavy duty grids, thicker plates, special additives and updated AGM/GEL valve regulated technology,
the Q5 series battery provides consistent performance and long service life.
The new grid design effectively reduces the internal resistance,
which provides higher specific energy density and excellent high rate discharge characteristics.
It is suitable for communications back-up power and EPS/UPS applications .
Applications
1)Float service
2)Uninterruptible Power Supplies
3)Medical
4)Telecommunications
5)Switch Gear
6)Photovoltaic
7)Solar
8)Wind
9)Control Systems
10)Cellular Radio Stations
11)Cathodic Protection
12)Navigation Aids
13)Marine equipment
14)Electric Power Systems:
example, telecommunication, large-scale UPS, nuclear power station, electric power substation and so on. ............................ect.................
Notice Don't near the hot source and don't under the sunshine.
Don't charge in the sealed container.
No short circuit. It should be addition charge if you don't use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
Don't store in the space of acid gas.
You should be careful and regular check when use the battery. To avoid the battery don't work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
Don't put the battery in the fire, or it will explode.
Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
Don't clean the battery by using the organic solution. (e.g. petrol)
2V/12V OPzV, OPzS Series| Model | Voltage | Capacity | Dimension | Terminal | Internal Resistance |
| 10hr | Length | Width | Height | TotalHeight |
| WPSOpzV2-200 | 2 | 200 | 103 | 206 | 355 | 390 | F10 | 0.6 |
| WPSOpzV2-250 | 2 | 250 | 124 | 206 | 355 | 390 | F10 | 0.57 |
| WPSOpzV2-300 | 2 | 300 | 145 | 206 | 355 | 390 | F10 | 0.55 |
| WPSOpzV2-350 | 2 | 350 | 124 | 206 | 471 | 506 | F10 | 0.42 |
| WPSOpzV2-420 | 2 | 420 | 145 | 206 | 471 | 506 | F10 | 0.38 |
| WPSOpzV2-490 | 2 | 490 | 166 | 206 | 471 | 506 | F10 | 0.35 |
| WPSOpzV2-600 | 2 | 600 | 145 | 206 | 646 | 681 | F10 | 0.33 |
| WPSOpzV2-770 | 2 | 770 | 210 | 254 | 471 | 506 | F10 | 0.31 |
| WPSOpzV2-800 | 2 | 800 | 191 | 210 | 646 | 681 | F10 | 0.3 |
| WPSOPzV2-1000 | 2 | 1000 | 233 | 210 | 646 | 681 | F10 | 0.27 |
| WPSOpzV2-1200 | 2 | 1200 | 275 | 210 | 646 | 681 | F10 | 0.25 |
| WPSOpzV2-1500 | 2 | 1500 | 275 | 210 | 796 | 831 | F10 | 0.23 |
| WPSOpzV2-2000 | 2 | 2000 | 399 | 214 | 772 | 807 | F10 | 0.22 |
| WPSOpzV2-2500 | 2 | 2500 | 487 | 212 | 772 | 807 | F10 | 0.2 |
| WPSOpzV2-3000 | 2 | 3000 | 576 | 212 | 772 | 807 | F10 | 0.19 |
| WPSOPzV12-100 | 12 | 100 | 409 | 174 | 215 | 240 | F12 | 8.00 |
| WPSOPzV12-150 | 12 | 150 | 532 | 207 | 215 | 240 | F12 | 7.00 |
| WPSOPzV12-200 | 12 | 200 | 520 | 268 | 220 | 245 | F14 | 5.00 |
| Model | Voltage
(V) | 10h Rate
Capacity
(Ah) | Length
(mm) | Width
(mm) | Height
(mm) | Total
Height
(mm) | Term
-inal |
| WPS12-7 | 12 | 7 | 151 | 65 | 95 | 99 | F1/F2 |
| WPS12-12 | 12 | 12 | 151 | 98 | 95 | 95/99 | F1/F2 |
| WPS12-18 | 12 | 18 | 181 | 77 | 167 | 167 | M6 |
| WPS12-24 | 12 | 26 | 167 | 175 | 125 | 125 | F7 |
| WPS12-24H | 12 | 26 | 167 | 126 | 175 | 175 | F6 |
| WPS12-33 | 12 | 33 | 196 | 131 | 155 | 180 | F7 |
| WPS12-38 | 12 | 38 | 196 | 166 | 175 | 182 | F7 |
| WPS12-55 | 12 | 55 | 229 | 138 | 208 | 227 | F7 |
| WPS12-65 | 12 | 65 | 350 | 166 | 178 | 178 | F7 |
| WPS12-70 | 12 | 75 | 259 | 169 | 208 | 227 | F7 |
| WPS12-90 | 12 | 90 | 307 | 169 | 208 | 227 | F7 |
| WPS12-100 | 12 | 100 | 329 | 172 | 215 | 240 | F7 |
| WPS12-120 | 12 | 120 | 409 | 174 | 209 | 238 | F7 |
| WPS12-150 | 12 | 150 | 484 | 171 | 241 | 241 | F7 |
| WPS12-160 | 12 | 160 | 532 | 209 | 241 | 244 | F7 |
| WPS12-200 | 12 | 200 | 522 | 240 | 216 | 242 | F7 |
| WPS12-250 | 12 | 250 | 520 | 268 | 220 | 249 | F7 |
| WPS6-120 | 12 | 120 | 280 | 265 | 206 | 206 | M8 |
| WPS6-200 | 6 | 200 | 306 | 168 | 222 | 228 | F14 |
Browse the following pages:
http://weipasi.en.made-in-china.com/product-group/RbhEcWpkJUVu/2V-GEL-AGM-Long-Life-Battery-catalog-1.html| Model | Voltage
(V) | 10h Rate
Capacity
(Ah) | Length
(mm) | Width
(mm) | Height
(mm) | Total
Height
(mm) | Terminal |
| WPS2-50 | 2 | 50 | 161 | 50 | 166 | 166 | F7/F14 |
| WPS2-100 | 2 | 100 | 171 | 72 | 205 | 212 | F7/F14 |
| WPS2-150 | 2 | 150 | 172 | 102 | 205 | 227 | F7/F14 |
| WPS2-200 | 2 | 200 | 173 | 111 | 329 | 365 | F8/F15 |
| WPS2-300 | 2 | 300 | 171 | 151 | 330 | 366 | F8/F15 |
| WPS2-400 | 2 | 400 | 211 | 176 | 329 | 367 | F8/F15 |
| WPS2-500 | 2 | 500 | 241 | 172 | 331 | 366 | F9/F15 |
| WPS2-600 | 2 | 600 | 301 | 175 | 331 | 366 | F9/F15 |
| WPS2-800 | 2 | 800 | 410 | 175 | 330 | 365 | F9F15 |
| WPS2-1000 | 2 | 1000 | 475 | 175 | 328 | 365 | F10/F15 |
| WPS2-1500 | 2 | 1500 | 401 | 351 | 342 | 378 | F10/F16 |
| WPS2-2000 | 2 | 2000 | 491 | 351 | 344 | 383 | F10/F16 |
| WPS2-3000 | 2 | 3000 | 712 | 353 | 241 | 382 | F10/F16 |
Browse the following pages:
http://weipasi.en.made-in-china.com/product-group/eoVQlUYbXRhZ/12V-Front-Access-battery-catalog-1.html| Model | Voltage
(V) | 10h Rate
Capacity
(Ah) | Length
(mm) | Width
(mm) | Height
(mm) | Total
Height
(mm) | Terminal |
| WPS12-55FT | 12 | 55 | 277 | 106 | 223 | 223 | F13 |
| WPS12-75FT | 12 | 75 | 562 | 114 | 188 | 188 | F13 |
| WPS12-100FT | 12 | 100 | 394 | 110 | 286 | 286 | F13 |
| WPS12-105FT | 12 | 110 | 507 | 110 | 223 | 223 | F13 |
| WPS12-120FT | 12 | 120 | 552 | 110 | 239 | 2.39 | F13 |
| WPS12-125FT | 12 | 125 | 436 | 108 | 317 | 317 | F13 |
| WPS12-150FT | 12 | 150 | 551 | 110 | 288 | 288 | F13 |
| WPS12-180FT | 12 | 200 | 561 | 125 | 316 | 316 | F13 |
| 12 | 180 | 561 | 125 | 316 | 316 | F13 |
ZhongShan Weipasi Power Co., Ltd. is a professional and leading manufacture of battery company. We manufacture the battery from raw material to finished products, Have our own plates factory, and a sister lighting company Special Owl lighting technology Co., Ltd.
We are very confident that we can satisfy you with good quality and best price. Our products include Maintenance-Free car battery for JIS/DIN/BCI series, Dry-Chargd car battery for JIS/DIN/BCI/CN series, UPS (Uninterruptible power supplies) battery, emergency lighting facility battery, electric toy battery, backup power battery, Solar Power Systems battery, Power tools battery, elevator battery, lawn mower battery, vacuum cleaners battery, telecommunication equipments battery, electric golf car battery, electric scooter battery, electric wheel chair battery, electrically-operated-gate/power-door/auto-door battery, medical equipments battery, remote Switching battery, control equipments battery, marine equipment battery, alarm and security devices battery, electric charger power systems battery, navigation systems battery, electronic instruments, monitor/Control Systems battery and battery for transformer substation, microwave relay station, power plant, remote sensing device, energy storage of solar/wind power generator.
Sister lighting company Special Owl lighting technology Co., Ltd. Products include LED rechargeable flashlight, head lamp, desk lamp, searchlight, emergency light, mosquito swatter, bulb, barn lantern, portable solar lighting, solar power system...
We has already gained many well-known certificates like ISO 9001: 2000, CE, UL, COC/VOC, SONCAP, MSDS, IEC test report and RoHS, and its batteries are highly recognized all over the world and widely applied in automobiles, marine boats, electronic bicycles, vacuum cleaners, air pumps and all types of UPS and toys. Meanwhile, they are also used in lots of systems as telecommunication, emergency lighting, security and burglar alarm, power station, solar, nation defense etc. Furthermore, we are able to provide customers newly-developed products per their requirements.
We are looking for agents or cooperators in your country. We sincerely invite you to be. Please contact to tell me your opinion about this idea. However, whatever information you want to know about us, please contact us.
