| Prod Model: |
TL400-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
210(L)*176(W)*330(H)M |
| Weight: |
28.0kg |
| Color: |
Black/ White/ Grey |
| Terminal: |
T20 |
| Charge Voltage (Cycle): |
2.35~2.40V |
| Charge Voltage (Float): |
2.25~2.30V |
| Container Material: |
ABS |
| Designed Life: |
12 Years |
| Warranty: |
3 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar/Wind System , UPS |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
2V |
Product Description

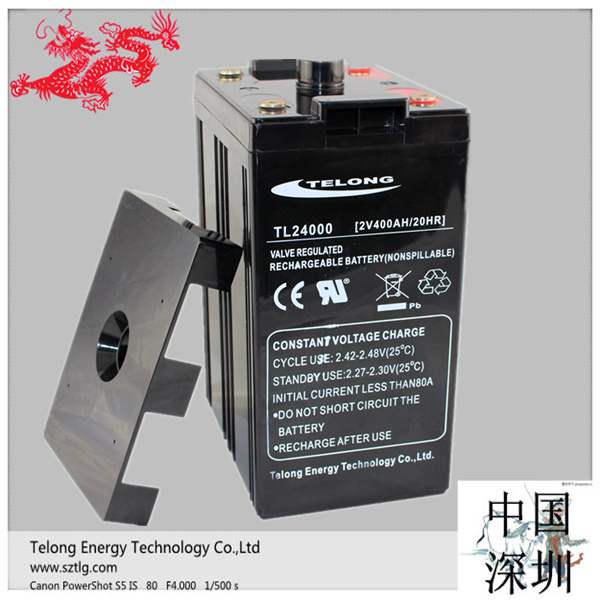

TELONG 2V400Ah battery with CE UL MSDS certification is a rechargeable maintenance free storage lead acid battery. It' s widely usede in solar system,communication equipment, railway signal and so on.
BATTERY CONSTRUCTION of 2V400ah Deep Cycle Solar Battery
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
SPECIFICATION of 2V400ah Solar Power Battery
| Nominal Voltage | 2 V |
| Rated capacity (10 hour rate) | 400 Ah |
| Dimension | Length | 210mm (8.20inches) |
| Width | 176mm (6.86 inches) |
| Height | 330mm (12.87inches) |
| Total Heigh (with terminal) | 364mm (14.20inches) |
| Weight Approx | 28.0Kg(61.74Ibs) |
FEATURE of 2V400ah Rechargeable Battery
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS of 2V400ah Sealed Lead Acid Battery
Capacity
25'C (77'C) | 10 hour rate(40A ) | 400AH |
| 5 hour rate(64A ) | 320AH |
| 1 hour rate(240A ) | 240AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 0.4milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 160A |
| Voltage 2.35~2.40 V |
| Voltage 2.25~2.30 V |
APPLICATIONS of 2V400ah Maintenance Free Battery
Control equipments /Solar / wind system
Alarm system
Medical equipments
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15~25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE
|
