2V600ah Opzv Sealed Lead Acid Storage Battery

Prod Model:	2V600AH
Item Name:	2V600ah Opzv Sealed Lead Acid Storage Battery
Capacity:	600ah@10hr-Rate to 1.80V Per Cell @25 C
Weight:	Approx. 48 Kg
Max. Discharge Current:	2500 a (5 Sec)
Terminal:	Thread Insert & Bolt (F10-M8)
Container Material:	a.B.S. (UL94-Hb), and UL94-V0 Is Optional
Float C Harging Voltage:	2.25 to 2.3 VDC/Unit Average at 25 C
Certificate:	Ce, RoHS, TUV, SGS
Optimal Operating Temperature Range:	25 C± 5 C
Color:	Gray and Black
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	2V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

2V600AH OPZV Sealed Lead Acid Storage Battery

Application:

Solar Energy & Wind Energy
 IT/ Telecommunications
Electric Vehicle, Floor Machines, Marine, Touring Coach
Power Storage Plant
Uninterruptible Power Supplier/ UPS
Security / Emergency lighting

General feature:
• Positive Plates:Robust tubular plates consisting of Pb-Ca-Sn alloy, optimized for high corrosion resistance, offer an extreme high cycling expectancy;
• Negative Plates: Grid plate construction consisting of lead calcium alloy;
• Separator: Microporous and robust PVC-SiO2 separator, for positive and negative plates and optmized for low internal resistance;
• Terminal Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity;
• Valves: Release gas in case of excess pressure and protects the cell against atmosphere, reasonable open and close valve pressure, high reliable on performance.
• Long service life: designed life 15-20 years.



OPzV  Series
OPzV Battery Specifications
Model	Voltage (V)	Capacity (Ah/10hr)	Length (mm)	Width (mm)	Height (mm)	T.height (mm)	Dry weight (kg)	Terminal
OPzV2-150	2	150	103	206	354	390	14.7	F6
OPzV2-200	2	200	103	206	354	390	16.3	F6
OPzV2-250	2	250	124	206	354	390	20.3	F6
OPzV2-300	2	300	145	206	354	390	24	F6
OPzV2-350	2	350	124	206	471	506	28.5	F6
OPzV2-420	2	420	145	206	471	506	32	F6
OPzV2-500	2	500	166	206	471	506	35.5	F6
OPzV2-600	2	600	145	206	646	681	43.5	F6
OPzV2-800	2	800	191	210	646	681	58.5	F6
OPzV2-1000	2	1000	233	210	646	681	72	F6
OPzV2-1200	2	1200	275	210	646	681	84	F6
OPzV2-1500	2	1500	275	210	796	831	105	F6
OPzV2-2000	2	2000	399	212	772	807	156	F6
OPzV2-2500	2	2500	487	212	772	807	185	F6
OPzV2-3000	2	3000	576	212	772	807	220	F6

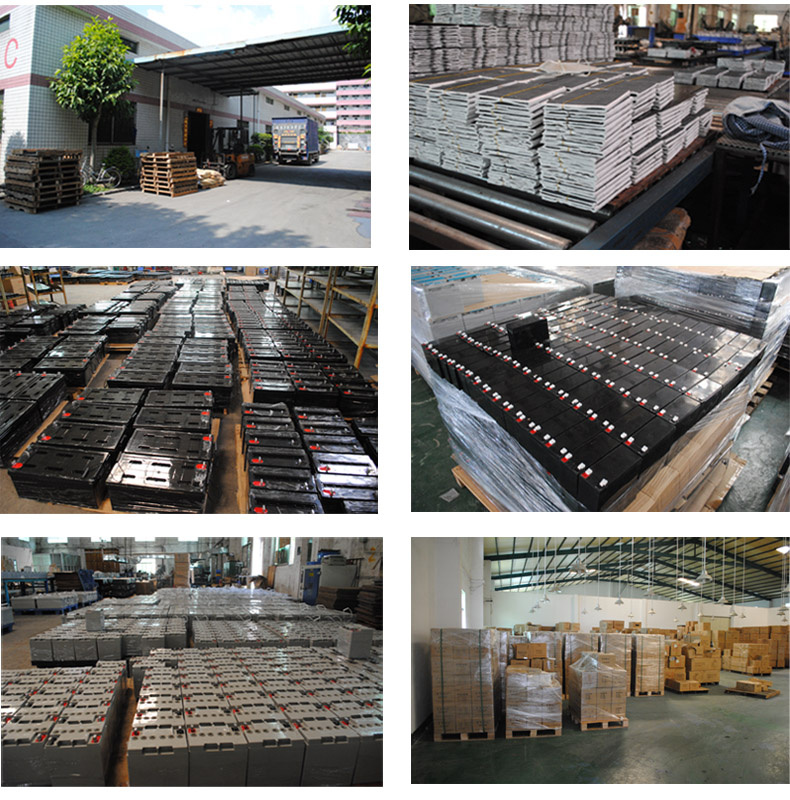

Factory Show:

Packing Details:


Our Qualification:



Our Services:
 Samples and OEM, Warranty and After-Sale Service:

•  Sample can be provided for quality testing
•  OEM Welcomed
•  Warranty:2 Year
•  After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

How To Ask for Support if products failure in warranty?
1. Email us about PI number, serial number,Product S/N number,  show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.
