| Prod Model: |
TL800-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
410(L)*175(W)*330(H)mm |
| Weight: |
57kg |
| Color: |
Black/ Grey or Other |
| Charge (Cycle Use): |
2.4~2.5V |
| Charge (Float Use): |
2.23~2.3V |
| Designed Life: |
12 Years |
| Warranty: |
3 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System Communication Equipment |
| Nominal Voltage: |
2V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

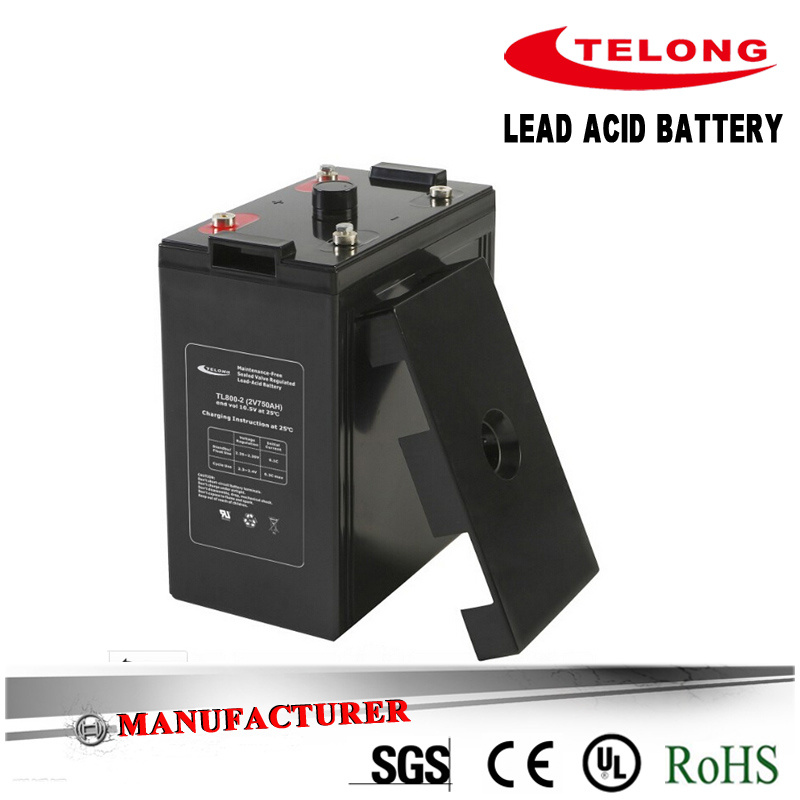

TELONG 2V800ah Battery: 1). Sealed Battery / Maintenance Free Battery / Rechargeable Battery / Lead Acid Battery
2). Warranty: 3 Year , changed with quality problem. 3). OEM / ODM 4). CE UL RoHS approvial
5). Used for: Solar / Wind system Telecommunication system.....
BATTERY CONSTRUCTION OF 2V800ah Rechargeable Solar Power Lead Acid Battery
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
SPECIFICATION OF 2V800ah Solar Power Battery
| Nominal Voltage | 2 V |
| Rated capacity (10 hour rate) | 800 Ah |
| Dimension | Length | 410mm (16.00inches) |
| Width | 175mm (6.83 inches) |
| Height | 330mm (12.87inches) |
| Total Heigh (with terminal) | 367mm (14.31inches) |
| Weight Approx | 57.0Kg(125.69Ibs) |
FEATURE OF 2V800ah UPS Battery
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and
freedom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS OF 2V800ah Maintenance Free Battery
Capacity
25'C (77'C) | 10 hour rate(80A ) | 800AH |
| 5 hour rate(139.2A ) | 696AH |
| 3 hour rate(201.3A ) | 604AH |
| 1 hour rate(485A ) | 485AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 0.5milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 240A |
| Voltage 2.35~2.40 V |
| Voltage 2.25~2.30 V |
APPLICATIONS OF 2V800Ah UPS BATTERY
Control equipments
Solar / wind system
Alarm systems
Alarm system
Medical equipments
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15~25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
