2V800ah Sealed Lead Acid Battery for Solar Power System Cl2-800
| Price: |
US $ 165-185/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
CL2-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
SLA Battery 2V |
| Capacity: |
800ah Sealed Lead Acid Battery |
| Weight: |
52.5kg Solar Power Battery |
| Size: |
L*W*H*Th=410*175*330*365mm |
| Warranty: |
1 Year SLA Battery for Solar Power |
| Expected Cycle Time: |
10-12 Years SLA Battery/ VRLA Battery |
| Delivery Time: |
7 Days Solar Battery |
| Maximum Capacity: |
3500ah VRLA/SLA Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
SLA Battery |
Product Description
Free Maintaince Opzv Solar Tubular Gel Battery 2V Battery 800ah Product Parameters

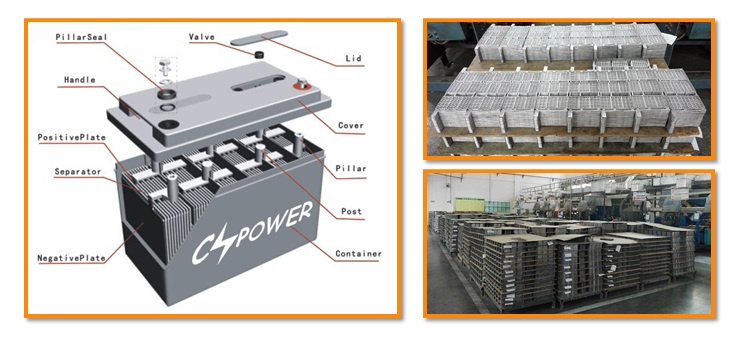

1.CSPOEWR Tubular Plate OPzV Battery Structure
- Positive Plates: Robust tubular plates consisting of Pb-Ca-Sn alloy, optimized for high corrosion resistance, offer an extreme high cycling expectancy;
- Negative Plates: Grid plate construction consisting of lead calcium alloy;
- Separator: Microporous and robust PVC-SiO2 separator, for positive and negative plates and optmized for low internal resistance;Container: ABS (UL94-HB), Flammability resistance of UL94-V1 can be available upon request;
- Terminal Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity;
- Valves: Release gas in case of excess pressure and protects the cell against atmosphere, reasonable open and close valve pressure, high reliable on performance.
2. CSPOWER Tubular Plate OpzV Battery OPzV2-800 Specification
OPzV2-800 |
Nominal Voltage | 2V(Single Cell) |
Design Floating Life @ 25ºC | 25 Years |
Nominal Capacity @ 25ºC | 10 hour rate @ 80.0A,1.8V | 800Ah |
Capacity @ 25ºC | 20hour rate (42A,1.8V ) | 840Ah |
5 hour rate (136A,1.75V ) | 680Ah |
1 hour rate (505.6A,1.6V ) | 505.6Ah |
Internal Resistance | Full Charged Battery@ 25ºC | ≤0.30mΩ |
Ambient Temperature | Discharge | -40ºC~70ºC |
Charge | -0ºC~50ºC |
Storage | -20ºC~60ºC |
Max.Discharge Current | @ 25ºC 3500A(5s) |
Capacity affected by Temperature (10 hour ) | 40ºC | 105% |
25ºC | 100% |
0ºC | 89% |
-15ºC | 79% |
Self-Discharge@25ºCper Month | 2% |
Charge (Constant Voltage) @ 25ºC | Standby Use | Initial Charging Current Less than 160.0A Voltage 2.25-2.3V |
Cycle Use | Initial Charging Current Less than 160.0A Voltage 2.37-2.4V |
Dimension (mm*mm*mm) | Length 191±1 * Width 210±1 * Height 666±1 (Total Height 681±1) |
Weight (kg) | 65±3% |
Battery Features
By combining the newly developed tubular positive plates with fumed gelled electrolyte, CSPOWER created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.
Features and Advantages for OPzV Battery
1. Over 20 years design life at floating condition @ 25°C
2. Wide operating temperature range from -40°C to 60°C
3. Tubular positive plate with prolonged cycle life
4. Fumed Silica gel electrolyte
5. Lead Calcium die cast grid with improved corrosion resistance capability
6. Low self-discharge rate and long shelf life
7. Excellent deep discharge recovery capability
Certifications
All our energy storage batteries meet:
ISO9001, ISO14001, OHSAS18001, IEC61427, CE-EMC; CE-LVD and Solar Product Certification, etc.

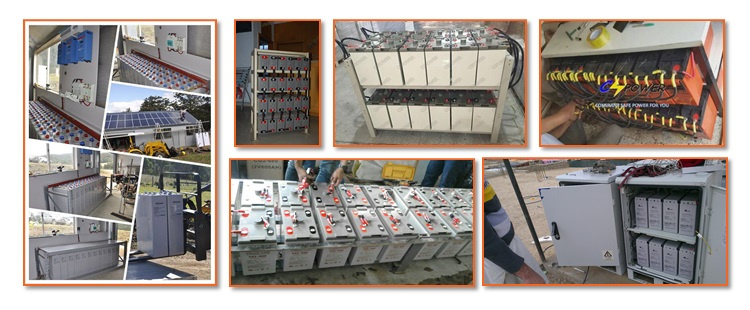

Application
Applications for Tubular Plate Deep Cycle Gel battery 2V OPzV battery
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
Main Product
CSPOWER Batteries Tags:
- lead acid battery, AGM battery, GEL battery, OPzV battery,Opzs battery,tubular gel battery,
valve regulated lead acid battery,VRLA battery, SLA battery,energy sotrage battery - long life gel battery, deep cycle deep acid battery, backup energy battery, deep cycle solar
battery,Maintenance free battery,sealed lead acid battery,rechargeable lead acid
battery,high rate battery - 2V battery,battery pack ,12V battery, 48V battery,6V solar ups battery,battery banks,battery for 48v system
- solar panel battery,solar power storage battery,solar battery,home use storage
battery,marine battery,telecom battery, UPS battery,industrial battery,automotive battery,
spiral lead acid battery,starting lead acid battery, forklift battery,emergency lighting
FAQ
Q: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.
Q: How long is your delivery time?
A: Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days
Q: What is your warranty policy?
A: We provide 1 ~ 5 years different warranty.
Why Choose CSPOWER?
A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

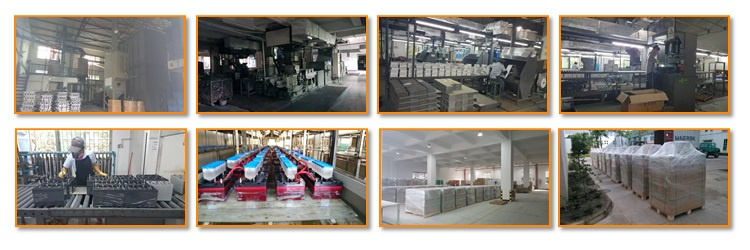

Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.

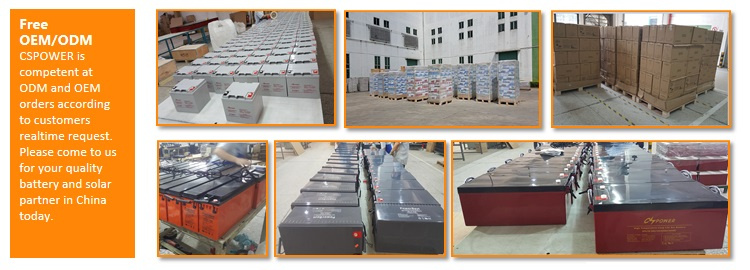

CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
