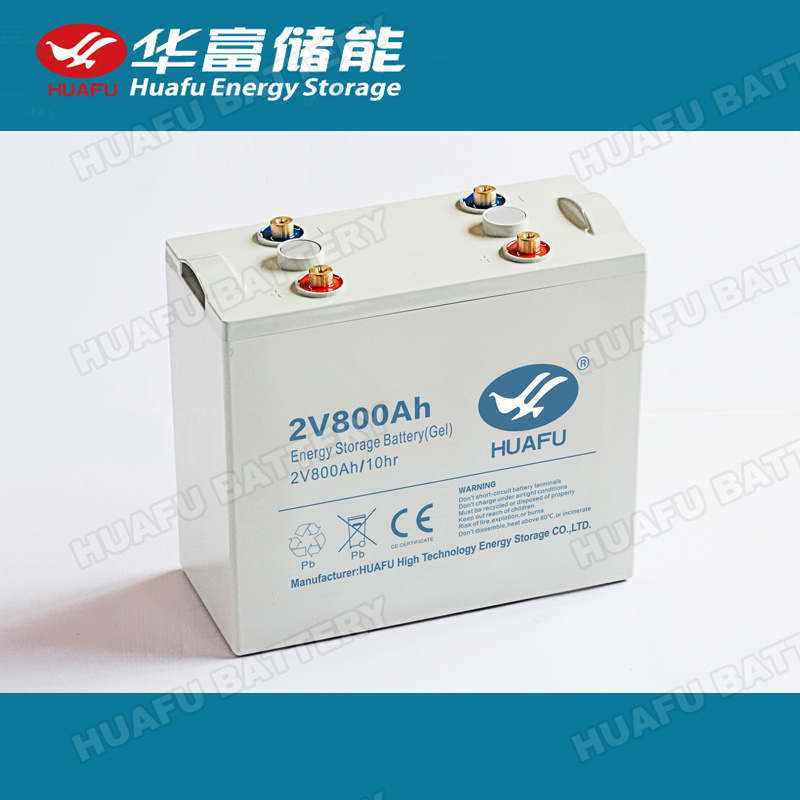

2V800ah Solar Battery Deep Cycle Battery with Ce Certificate

Prod Model:	CNJ-800
Size:	383*171*330*342 (L*W*H)mm
Weight:	46kgs
Warranty:	3 Years
Design Life:	8 Years
Battery Color:	Italia Grey
Terminal:	Copper
Maintenance Free:	Yes
Type:	Lead-Acid Batteries
Usage:	Solar
Nominal Voltage:	2V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Factory Information: ranks NO.1 in the sales of gel battery in China and has more than 20 years of experience in producing VRLA AGM/Gel solar battery ,VRLA AGM/Gel Backup battery series (UPS),EV battery ,OPzS, OPzV, Lithium -Iron and lead carbon battery, etc.
Quality system & Certifications: ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS

Huafu Lead Acid Battery Construction

Element	Electrolyte	Positive Plate	Negative Plate	Container
Material	Acid	Lead dioxide	lead	ABS
Element	Cover	Safety valve	Terminal/Wire	Separator
Material	ABS	Rubber	Copper	Fiberglass

1). Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the separators and plates. The cells shall have no residual free or bulk liquid electrolyte.
2). Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
3). Continer & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic
4). Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
5). Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air into the unit.


Huafu 2V800Ah Rechargeable Battery Specification

Battery Rated Voltage		2V
Rated capacity (10 hour rate)		800Ah
Dimension	Length	383mm (15.09inches)
	Width	171mm (6.74inches)
	Height	330mm (13.00inches)
	Total Height (with terminal)	342mm (13.47inches)
Weight Approx		46Kgs (101.2Ibs)
Terminal	M8-20 Copper Terminal

Huafu 2V800AH General Purpose Battery Characteristic

Capacity at 25'C (77'C)	10 hour rate / 1.8V/Cell	800Ah
Charge	Limit initial current to 200A.
	Cycle Applications	2.35V-2.45V
	"Float" or "Stand-By" Service	2.25V-2.35V
Note: Due to the self-discharge characteristics of this type of battery, it is imperative that they be charged within 6 months of storage, otherwise permanent loss of capacity might occur as a result of sulfation.
Operating Temperature Range		-25'C~50'C
Shelf Life (% of nominal capacity at 77°F (25°C))	1 Month	97%
	3 Months	93%
	6 Months	87%
The shelf life shall be a minimum of 6 months at 25°C. The available capacity at the end of this time period shall not be less than 80% of the rated capacity. The cell shall recharge to at least 80% of the rated capacity within 8 hours.

Huafu Sealed Maintenance Free Battery Feature
1). Absorbent Glass Mat (AGM) technology for superior performance
2). Valve regulated, spill proof construction allows safe peration in any position
3). Power/volume ratio yielding unrivaled energy density
4). Rugged impact resistant ABS case and cover (UL94-HB)
5). Integrated ABS carrying handles for ease of movement
6). U.L. CE. IEC. SGS. RoHS. ISO9001. ISO14001. OHSAS18001-2007 recognized
7). Maintenance-free operation - no addition of water to the electrolyte is required.
8). Wide range of operating temperatures with temperature compensated charging.
9). Computer designed lead, calcium tin alloy grid for high power density.
10). Extended service life due to low self-discharge levels.

Huafu 12V100AH Battery Packing information

In carton			packing in wooden Box
Pcs/Ctn		Ctn	Ctns/Box	Box Size
1

Huafu Battery installed in type of horizontal rack
Applicable product series
Energy storage use battery(CNJ series) ,Specialty battery for plateaus, Lead-carbon battery,
valve-regulated sealed battery(GFM series), Heat-tolerant battery.

Applicable models
12V series:12V24Ah,12V30Ah,12V40Ah,12V50Ah,12V180Ah,12V200Ah,12V220Ah,12V250Ah;
6V series::6V180 Ah,6V200 Ah;
2V series:2V200 Ah,2V300 Ah,2V400 Ah,2V500Ah,2V600Ah.

Advantages
Space saving: Because the horizontal installation's wiring is on the side face of the bracket, there is no need to reserve space like upright installed batteries , which greatly saves the whole installation volume; It is convenient and economical for end users to operate batteries in the container structure, narrow ,small and limited space. Easy to Install and maintain: It is convenient to install, replace and maintain the battery. When under the inspection, it is easy to find and deal with the problem directly.
Aesthetic appearance: The overall visual effect is consistent with the aesthetic design of industrialization


 FAQ
1. Are you a factory?
Yes, we are manufacturer, the factory located in Yangzhou city, Jiangsu province.

2. How many workers in your factory?
  About 1000 workers.

3. Is it a maintenance free battery?
  Yes,it is sealed maintenance free battery.

4. What kinds of battery will you provide?
We can provide full range of 2v/12v gel and lead acid battery, lead carbon battery ,EV battery, tubular battery, lithium-ion battery and so on.

5. Where can we use the batteries?
Our batteries can be widely used in UPS and computer standby power supply, Solar and wind system, Control system, Telecommunication system, Emergency light system,Alarm system, Security system, Firefighting equipment standby power supply, railway system, Ship equipment, Aeronautical facility, Electric toys, Power tools, Emergency lamp, Medical treatment equipment, Power system, Power station, Standby power supply, Military equipment, Telephone switching system etc.

6. Can your battery meet CE requirements?
Yes, our battery meet CE, UL, ISO9001, ROHS and TLC, can be exported to almost every country .

7. Can you provide OEM service?
Yes, OEM/ODM is available, we can print your picture or logo on the battery and box.

8. Do you have after-sales service?
Yes, battery with quality problems will be changed as long as the battery still under warranty period.

9. If i place an order now, how long it will takes you to arrange the delivery?
If we have finished batteries,usually it will takes 10-15 days to arrange the shipment. Otherwise, it will takes more than 15 days cause we need to arrange the production.


Other 2 Volt Products

Model	Normal Voltage  (V)	Normal Capacity (Ah)	Dimension L* W*H*TH(with terminal)mm
CN(J)-200	2	200	171*106*330*342
CN(J)-300	2	300	171*151*330*342
CN(J)-400	2	400	196*171*330*342
CN(J)-500	2	500	241*171*330*342
CN(J)-600	2	600	285*171*330*342
CN(J)-800	2	800	383*171*330*342
CN(J)-1200	2	1200	510*175*337*347
CN(J)-1500	2	1500	318*341*341*351
CN(J)-2000	2	2000	433*342*341*351
CN(J)-2500	2	2500	629*346*341*351
CN(J)-3000	2	3000	629*346*341*351
CN(J)-3600	2	3600	696*340*330*342


Other 12 Volt Products

Model	Normal Voltage  (V)	Normal Capacity (Ah)	Dimension L* W*H*TH(with terminal)mm
6-CN(J)-24	12	24	165*126*175*181
6-CN(J)-30	12	30	196*165*174*181
6-CN(J)-40	12	40	196*165*174*181
6-CN(J)-50	12	50	229*138*210*230
6-CN(J)-60	12	60	350*166*174*174
6-CN(J)-65	12	65	350*166*174*174
6-CN(J)-70	12	70	350*166*174*174
6-CN(J)-80	12	80	329*172*214*236
6-CN(J)-90	12	90	329*172*214*236
6-CN(J)-100	12	100	329*172*214*236
6-CN(J)-120	12	120	406*174*208*232
6-CN(J)-150	12	150	483*170*240*240
6-CN(J)-180	12	180	522*240*219*244
6-CN(J)-200	12	200	522*240*219*244
6-CN(J)-250	12	250	520*269*220*245

Company profile
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
