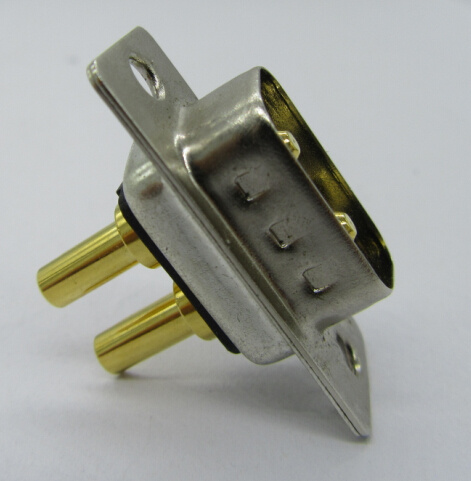

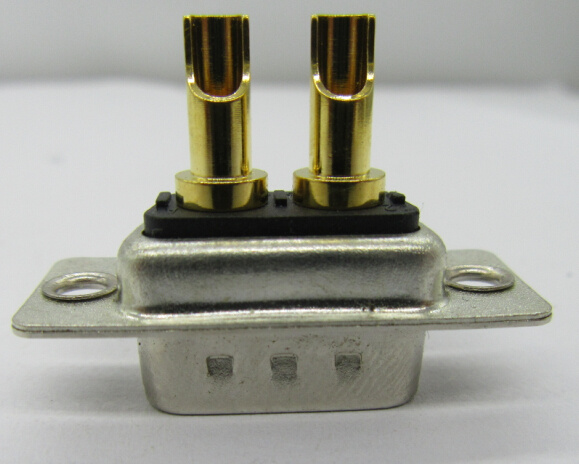

2W2 Male Connector, Solder Type, 20A, 30A or 40A for Contacts

2W2 Male Connector, Solder Type, 20A, 30A or 40A for Contacts
Price: US $ 1-3/Piece
Min Order: 500/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 2W2 MALE CONNECTOR

Product Description


Specifications:

Material Data:
Standard insulator
PBT thermoplastic,30%glass filled(UL94V-0 rated)
Insulator color
Black/White/Blue
Contacts material
Copper Alloy
Contact Plating
Gold plating/3U"/5U"
Shell Material
Steel
Shell Plating
Nickel (or Tin,Zinc,Gold)Plated
Hardware Plating
Steel,Nickel (or Tin,Zinc,Gold)Plated

Technical Data:
Signal contact current rating
3.0AMPS
High power contact current rating
10AMPS ,20AMPS,30AMPS.40AMPS
Signal contact resistance
10 Milliohms Max.
Dielectric withstanding voltage
1000V AC for 1 Minute
Operating temperature:
55°C to +125°C

Packaging:
Tray
Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
