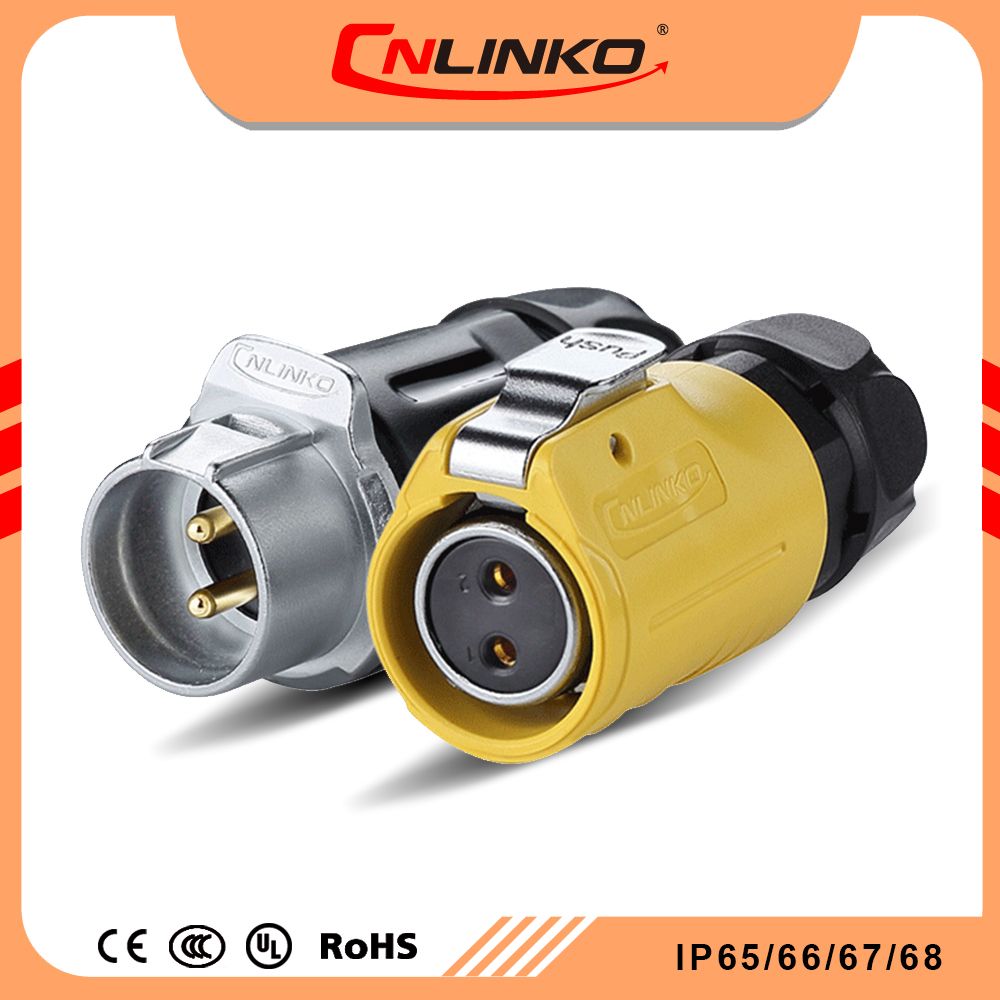

2wires Plastic IP67 Waterproof Gold Plating Pins Connector 2 Pin Power Cable for Solar Control Box

Name: 2wires Plastic IP67 Waterproof Gold Plating Pins Connector 2 Pin Power Cable for Solar Control Box
Brand: all-electronics-online.com
SKU: 836267775
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 3.64/Set
Min Order:	10/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-20-J02PE-01-001; LP-20-C02PP-01-001

Product Description

Product Description

LP-20 series of products , containing models with hole size 21mm to meet different needs of industry and we use nickel-plated and zinc alloy to guarantee quality and apply with international environment protection of industrial equiment as well.LP-24 series with multi-industry extension, USB,telecommunications,signal,fiber optic.HDMI,etc,

Features:

21mm installation hole figure
easily lock by plug/unplug snap fastener ,ensure safe and stable.
varies types for choice,include power , signal ,usb.rj45,fibre optics,meet different industrial demands.
stable power and signal transmission,multi-pin power(2-12 pin) with positive and negative type.
formed wire technology on pins keep much stable while transmit and tempera ture rise.
solderand pressure on copper needles completely comply with outdoor installation.

LP-20-J02PE-01-001;LP-20-C02PP-01-001
Specifications:
Connecting mode:	Plug/unplug,
Protection level:	IP67
Cable specification:	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.7x2
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Prevent the combustion level:	UL94-V0
Temperature rise:
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
