| Prod Model: |
YL0201S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Avaliable |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

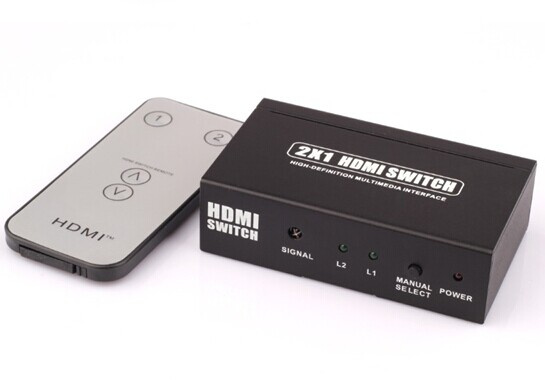

2x1 HDMI Switcher( support IR, 1080P)
INSTALLATION AND PRECAUTIONS
To avoid electric shock, product damage and to protect your safety, please notice the following:
1, Please slowly plug or unplug signal cables and do not often plug, unplug, or shake them.
2, The equipment should not be placed under the sun, rain and damp or unventilated environment.
3, Liquid items should not be placed on the equipment.
4, Do not install the equipment near heat sources such as fire, power, or other amplifiers that produce heat.
5, Do not insert the metal or other objects to the equipment in addition to connecting cables to parts.
6, Do not demolish the equipment by yourself; It should be maintained by professional maintenance staff.
DESCRIPTION OF PRODUCT
HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display device such as HDTV by using manual pushbutton. Doing so can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.
FEATURES
1, Switching is done via itself automatically when signal present on the ports.
2, Support HDCP protocol and applicable to source device and high definition display device such as DVD and HDTV which have HDMI ports or digital ports, and are compliant with HDCP protocol.
3, Support high resolutions up to 1920*1200, including 480i/p, 576p, 720i/p, 1080i/p.
4, Support HDMI1.3
5, Extend the transmission distance and improve transmission signal.
6, Compatible with DVI by using HDMI TO DVI adapter.
7, Plug-and-play.
8, Convenient to connect multi-group input signals to display on one HDTV.
9, Save space. Allow several sources to use one high definition display device simultaneously.
10, Metal casing design and overall shielding without signal interference.
11, Select input port by hand freely.
12, LED indicates signal and power mode.
13, Power supply(Please refer to technical parameter)
APPLICATION
It switches several routes HDMI signals from source device such as DVD, Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat Panel Display.
| Product | 2X1 HDMI SWITCH |
| HDMISource Input Port | 2 |
| DisplayDevice Output Port | 1 |
| SourcePortConnector | 19 PIN HDMI(A TYPE) |
| DisplayDevice PortConnector | 19 PIN HDMI(A TYPE) |
| HDCP Compliant | YES |
| Source Device Selection | Push Button IR Remote Control |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC signal | 5 Volts P-P(TTL) |
| Deep Color | 36bit |
| SingleLink Range | 1920*1200 |
| HDMI Version | HDMI1.3 |
| Bandwidth | Up to 340Mhz |
| Signal Speed | Up to 10.2Gbps |
| The length of input cable | PS3≤10M;BLUE DVD≤10M |
| The length of output cable | ≤10M |
| The cable standard | 28AWG HDMI1.3 |
| VerticalFrequency Range | 60Hz |
| Power Consumption(max) | 1.5 Watts |
| Operation Temperature | 0 degree TO 70 degree |
| Working Voltage | DC 5V |
| Power Adaptor | 5V 1A |
| Net Weight | 115g |
| Dimension: L×W×H(mm) | 84×48×24 |
